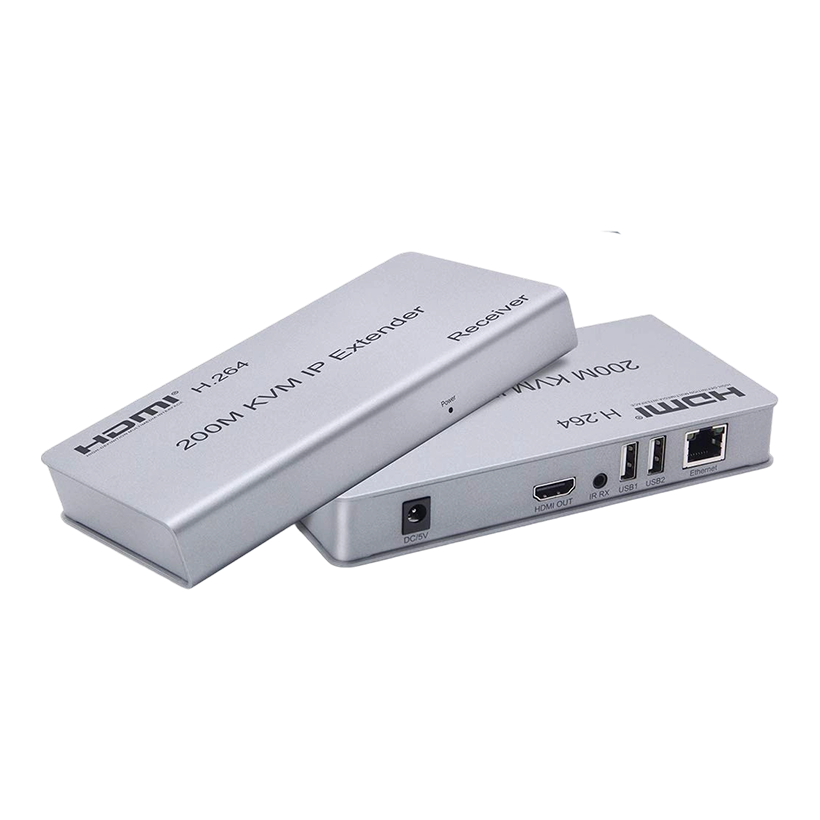

200M HDMI KVM IP Extender (TX + RX Kit) Specifications
- Product Type: HDMI KVM IP Extender Kit

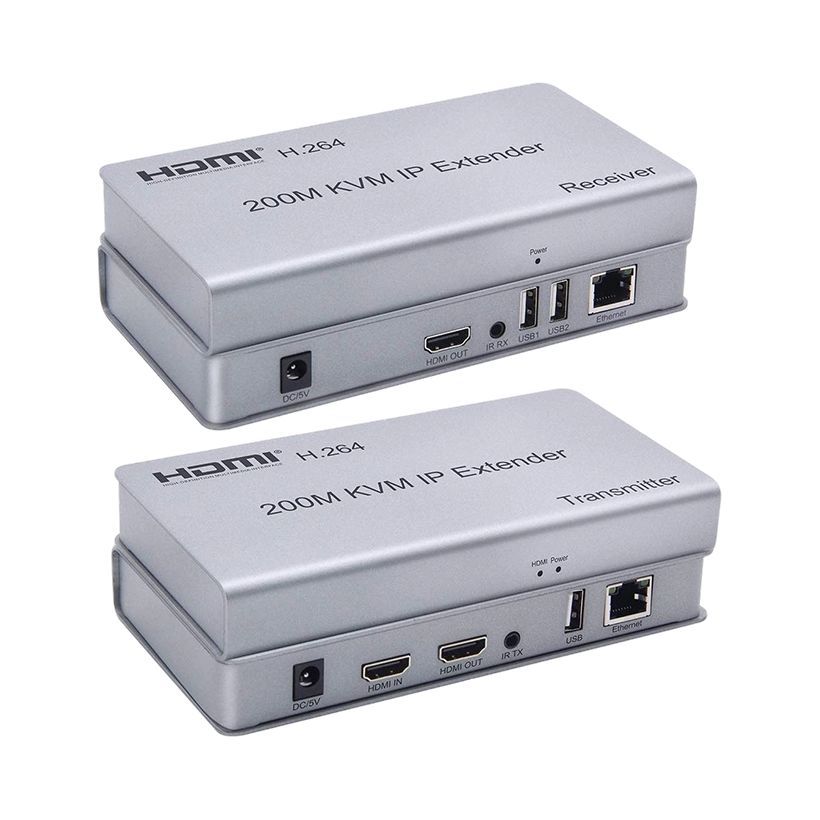

- Configuration: TX (Transmitter) + RX (Receiver)
- Function: Extends HDMI video, audio, USB keyboard/mouse, and IR signals over a single network cable using TCP/IP transmission
Transmission Performance
- Maximum Transmission Distance: Up to 200 meters (656 ft)
- Recommended cable:
- CAT6
- CAT6A
- CAT7
Network & Protocol
- Supports:
- TCP/IP protocol
- IEEE 802.3 Ethernet standard
- Supports point-to-multipoint and cascade connections
- Efficient signal transmission using H.264 compression technology
Video Performance
- Maximum Resolution:
- 1920 × 1080P @ 60Hz
- HDMI Version: HDMI 1.3
- Video Compression: H.264 decoding/compression
HDCP Support
- Compatible with:
- HDCP 1.1
- HDCP 1.2
Audio Support
- Audio sample rates supported:
- 32 kHz
- 44.1 kHz
- 48 kHz
USB Extension
- Supports USB keyboard extension
- Supports USB mouse extension
- USB ports available on the RX unit for remote PC control
IR Extension
- Supports bi-directional IR extension
- IR frequency:
- 38 KHz
Power Supply
- Input Power: DC 5V / 1A
- Includes:
- TX power adapter
- RX power adapter
Power Consumption
- TX Unit: Approx. 3W
- RX Unit: Approx. 3W
Compatibility
Compatible with:
- PCs & Servers
- DVR / NVR Systems
- TVs & Monitors
- Projectors
- CCTV Monitoring Systems
- Control Room Installations
Applications
- Security monitoring systems
- Control centers
- Digital signage
- Conference rooms
- Industrial control systems
- Remote workstation management
