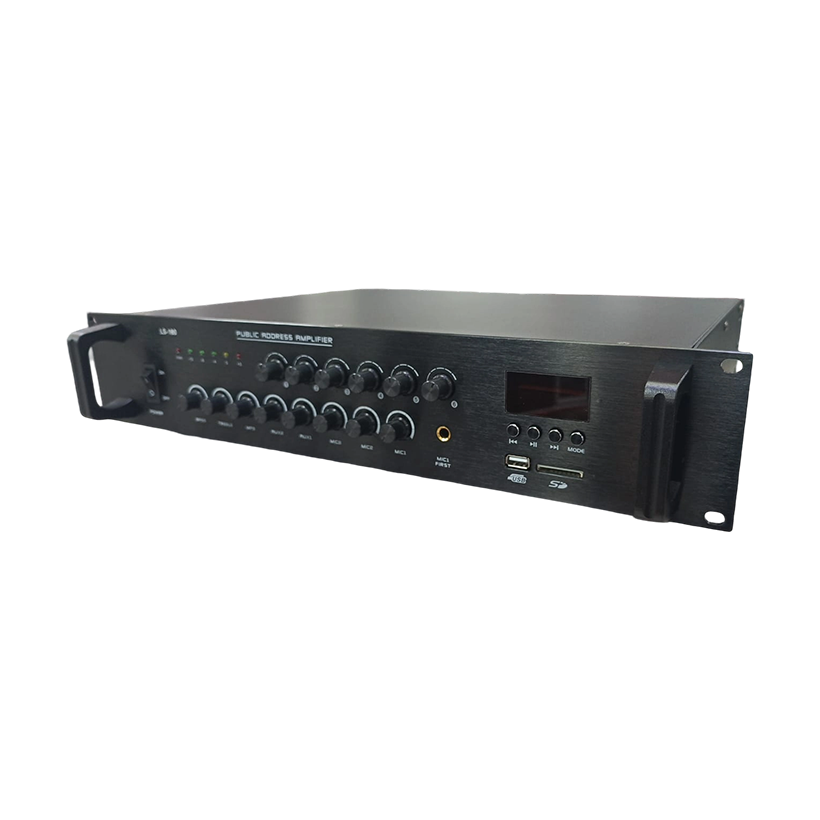

CHLD LS-180 is a professional 6-zone public address mixer amplifier. It follows the same design and feature philosophy as other LS series models — combining mixing, multi-zone control, playback options, tone control, and power amplification in one rack-mount unit.
This type of unit is commonly used in:
-
Schools, universities
-
Hotels, restaurants, cafés
-
Offices and conference centers
-
Mosques, churches, community halls
-
Retail stores and warehouses

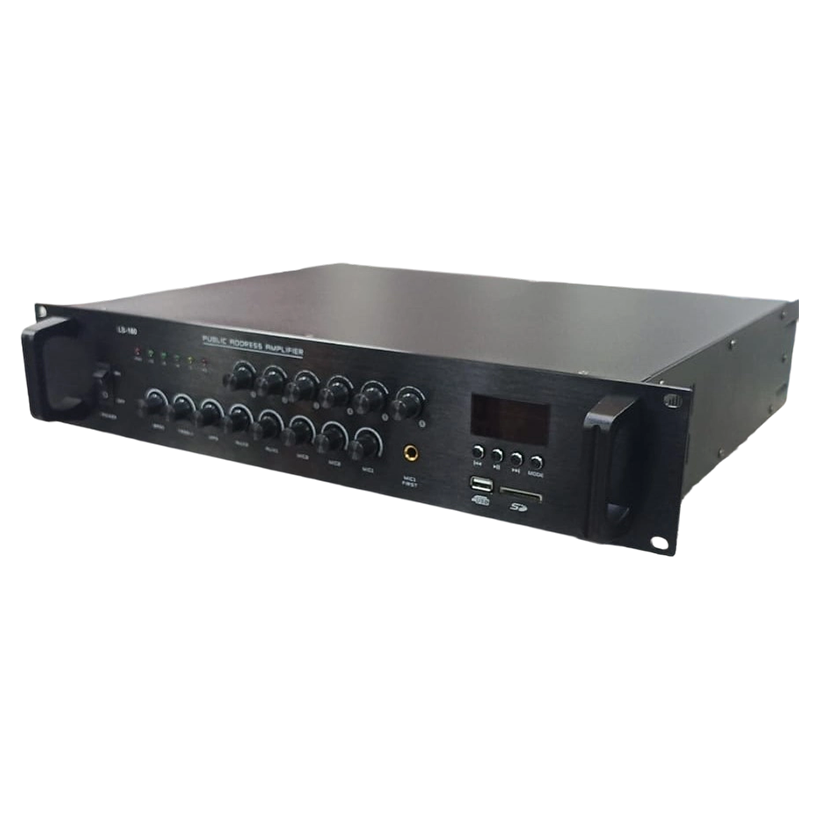

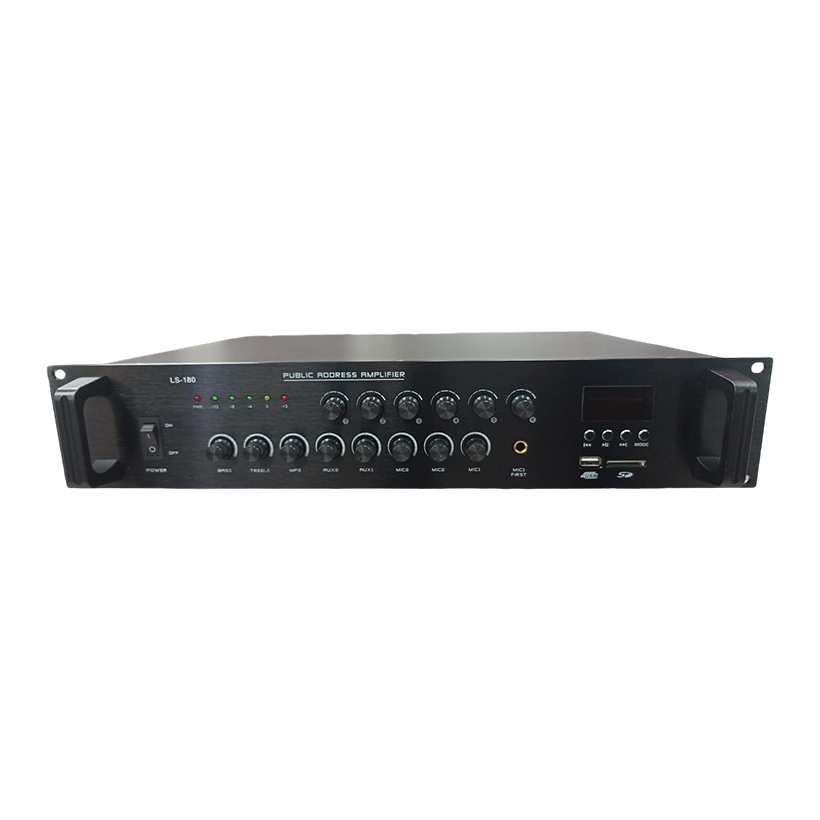

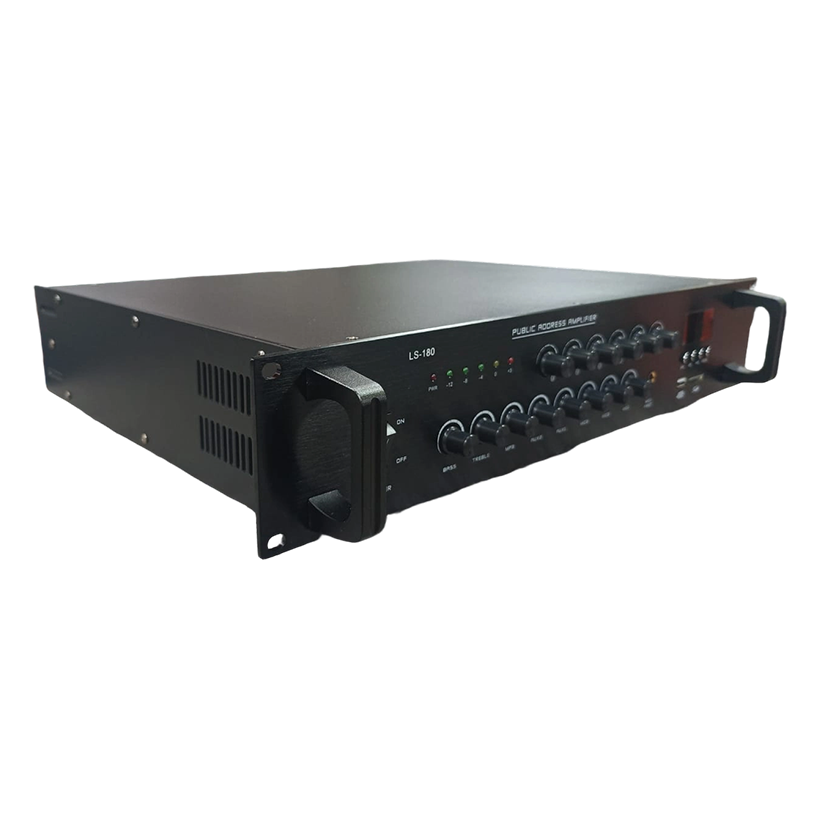

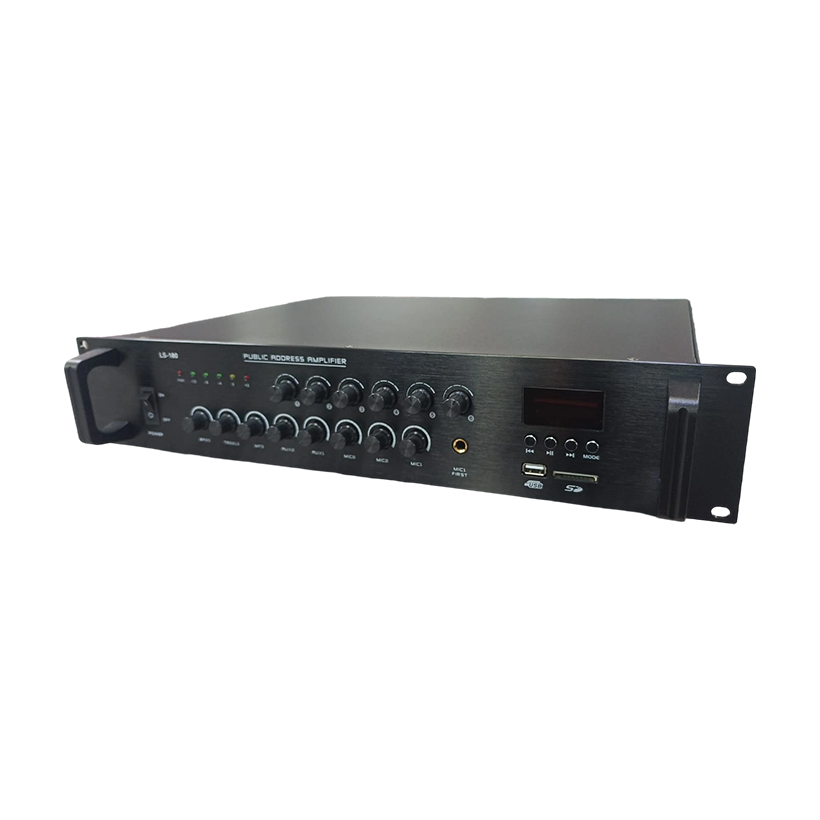

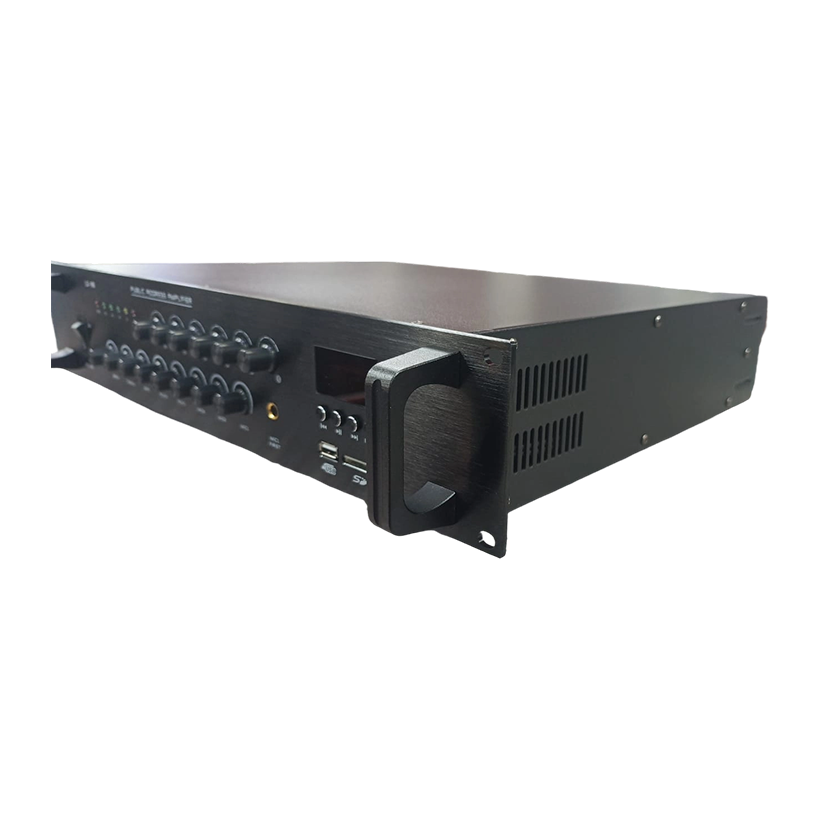

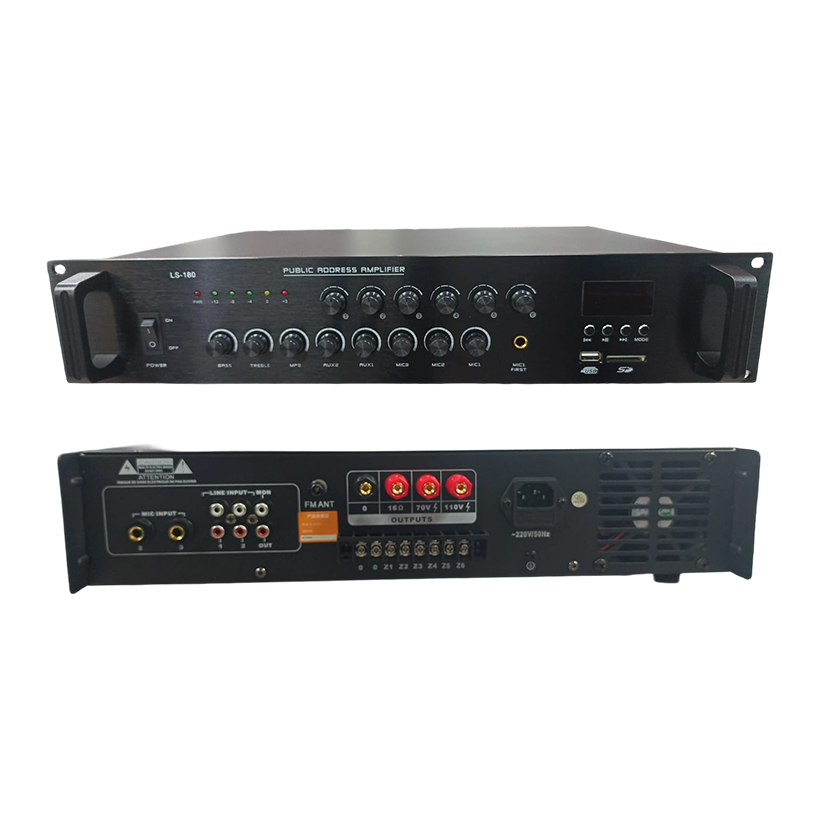

Front Panel Overview
🔹 Digital Display (LCD Screen)
-
Shows current mode, input selection, playback status, and settings
-
Enhances usability in live or installed environments
MIC Inputs
-
3 Microphone input channels
-
Each with its own volume control
-
Supports announcements, paging, speeches, and live mics
-
Line & Media Playback
-
USB port and SD card slot for playing stored music (usually MP3)
-
Front panel controls for playback (Play/Pause, Next/Prev, Mode)
Tone Controls
-
Bass adjustment
-
Treble adjustment
-
Lets you shape the sound to match the listening space
-
6 Zone Control Buttons
-
Individual buttons/LEDs to activate or deactivate each of the 6 speaker zones
-
Makes targeted paging or music distribution easy
Master Volume
-
A single knob to adjust overall output level
Rack Friendly Build
-
Standard 19″ width
-
Equipped with protective front handles and robust metal case

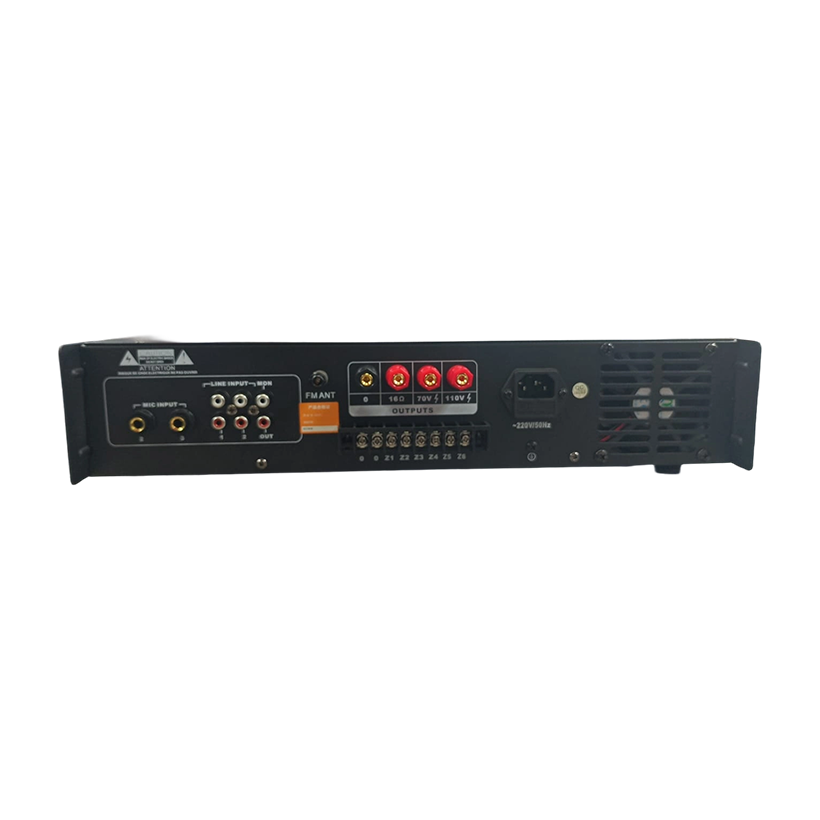

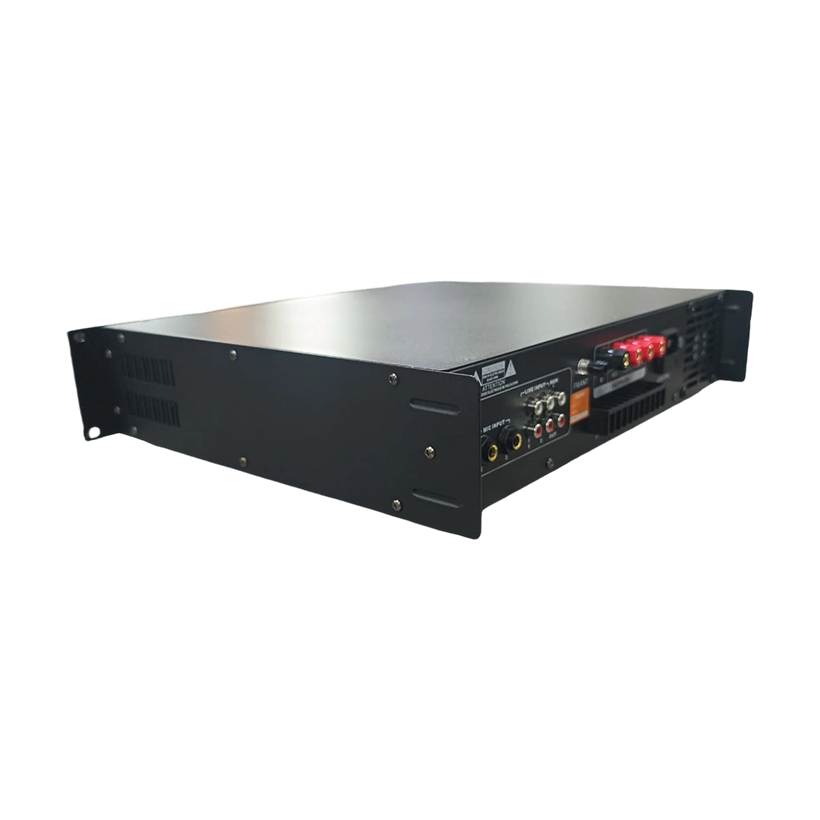

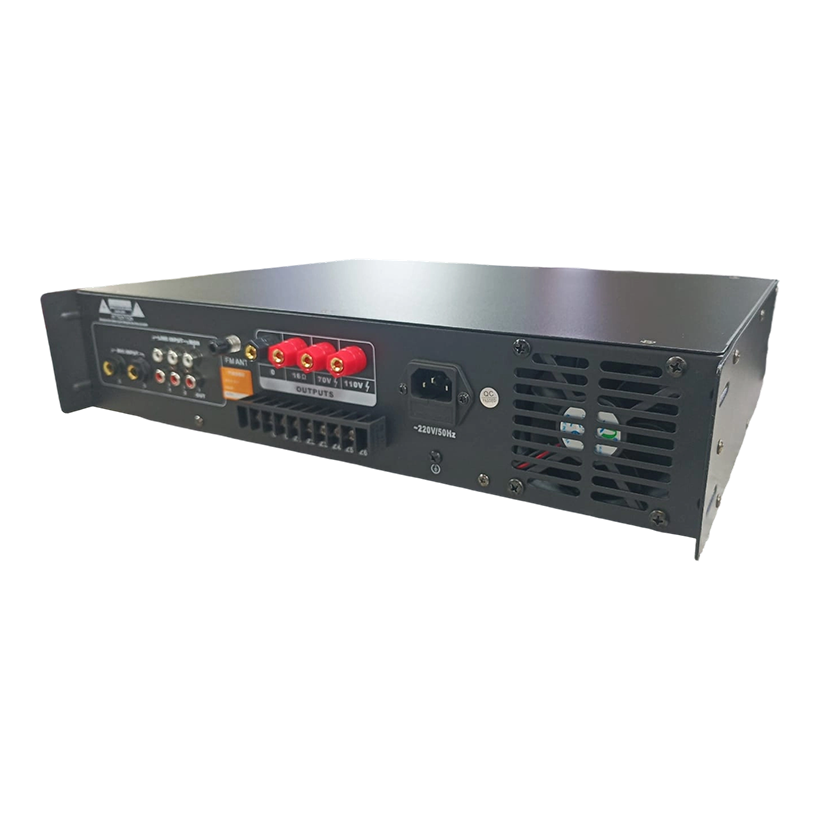

Rear Panel Overview
Mic & Line Inputs
-
Balanced / unbalanced microphone jacks
-
RCA or similar line input connectors for music sources
Antenna Input
-
Many LS-series models include an FM antenna port for integrated radio reception
Zone Outputs
-
6 separate speaker zone outputs
-
Typically screw terminal block connections
-
Each zone can be powered independently
-
Multiple Speaker Output Options
-
Low-impedance (4–16Ω) output
-
70V and 100V outputs for long-line commercial speaker systems
Line Output
-
Often a fixed line-level output for linking to another amplifier, recorder, or system
Thermal Management
-
Internal cooling fan and ventilation
-
Helps reliable performance under heavy use
Power Input
-
Standard mains power socket (220V AC typical for this series)
