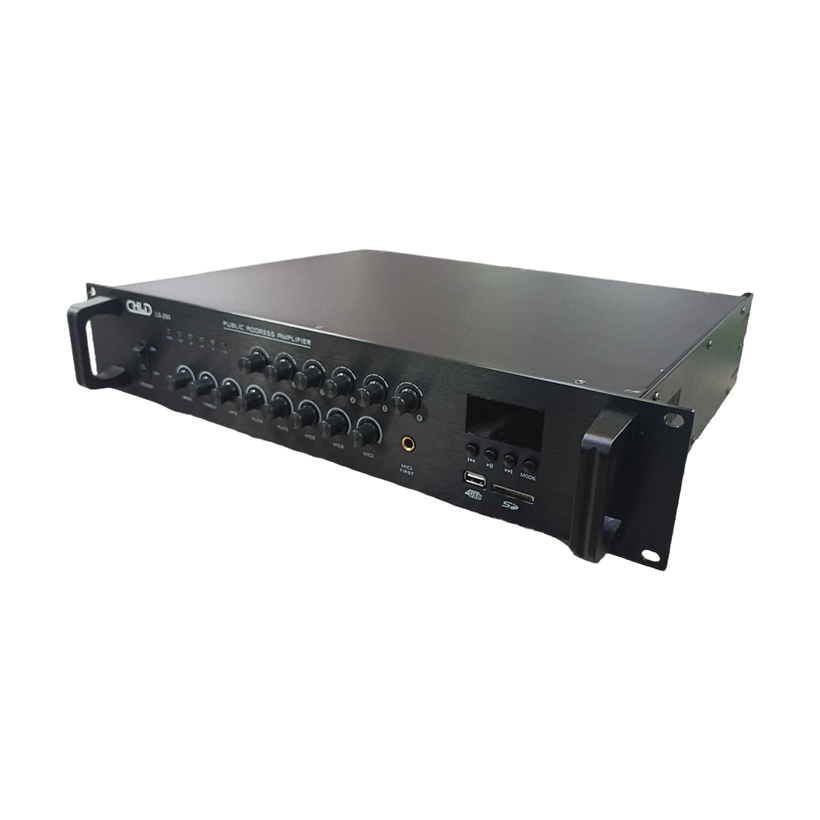

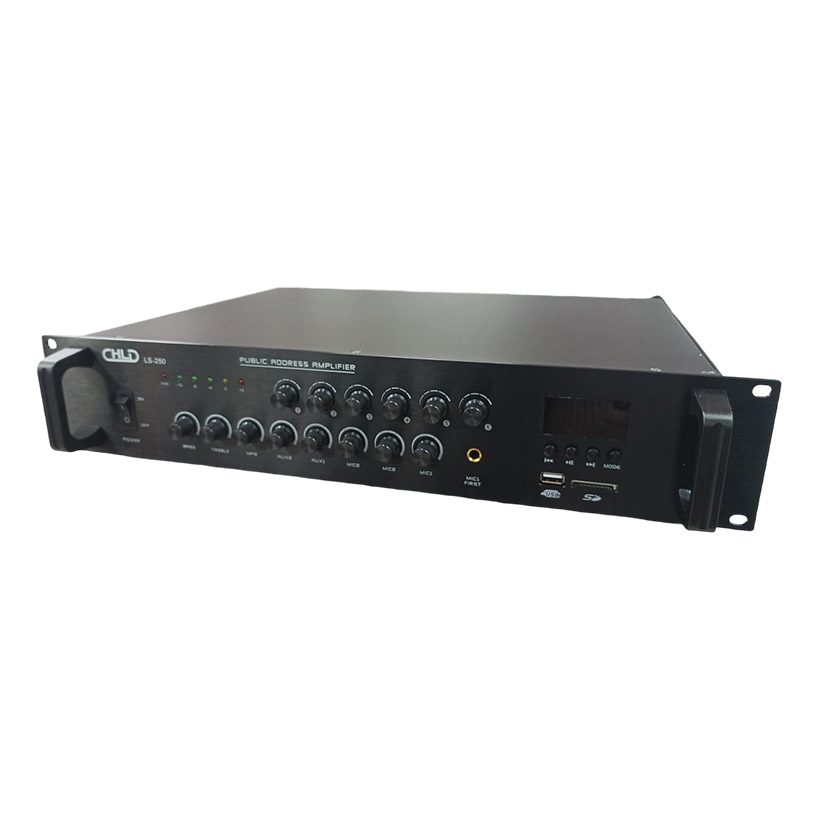

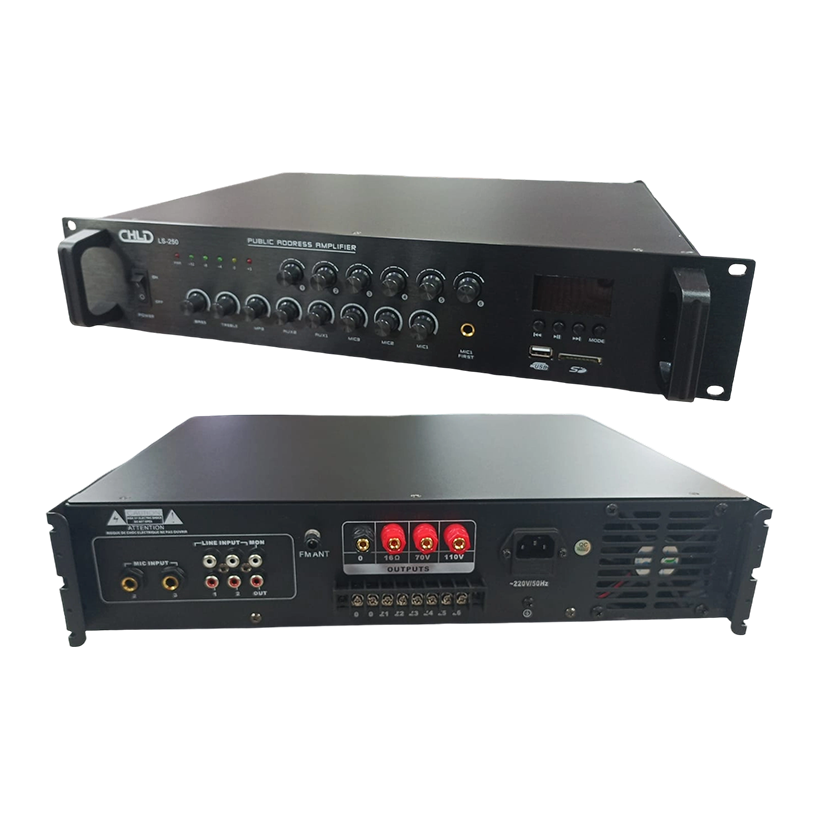

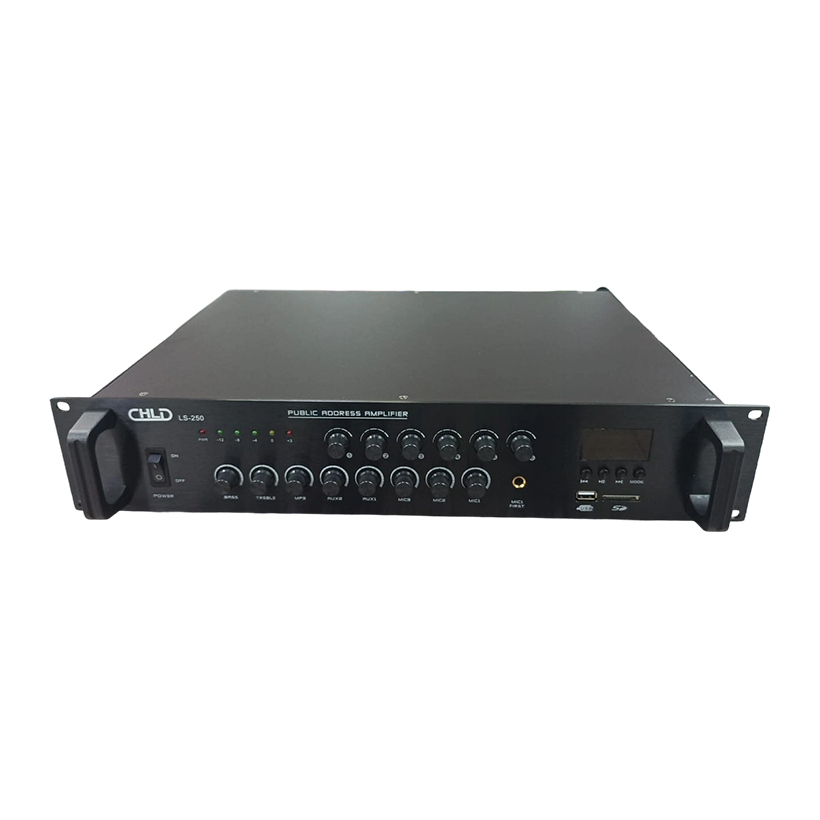

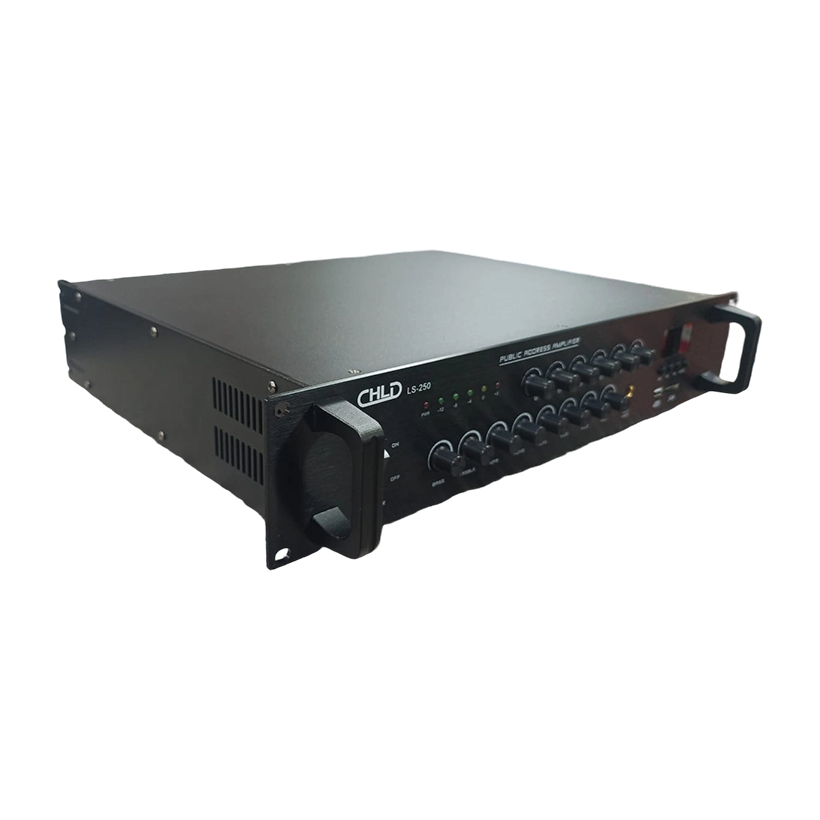

CHLD LS-250 Multi-Zone Mixer Amplifier — Full Description
This is a professional public-address (PA) mixer amplifier designed for commercial and institutional audio systems. It combines mixing, control, playback, and amplification in one unit — ideal for multi-zone paging, music distribution, and public announcements.
LCD / Digital Screen
-
Central display for mode, input, playback info, and settings.
-
Helps navigate menus and see active inputs or zones.
Microphone Input Controls
-
3 separate MIC inputs
-
Typically labeled MIC 1, MIC 2, MIC 3
-
Each has its own volume knob
-
Designed for paging microphones, speeches, announcements
-
Line / AUX Input Controls
-
Input level knobs for AUX / Line stereo input
-
Accepts background music sources like phones, players, mixers
Tone & Master Controls
-
Bass control
-
Treble control
-
Master volume control for overall output level
Media Playback Controls
-
Built-in MP3 player controls:
-
Play / Pause
-
Next / Previous
-
Mode switch
-
-
Typically supports:
-
USB playback
-
SD card playback
-
Zone Buttons / Indicators
-
Can enable/disable 6 separate speaker zones
-
LED indicators show active zones
Build & Design
-
Standard 1U rackmount width
-
Metal chassis with handles
-
Professional look for racks or shelf installations

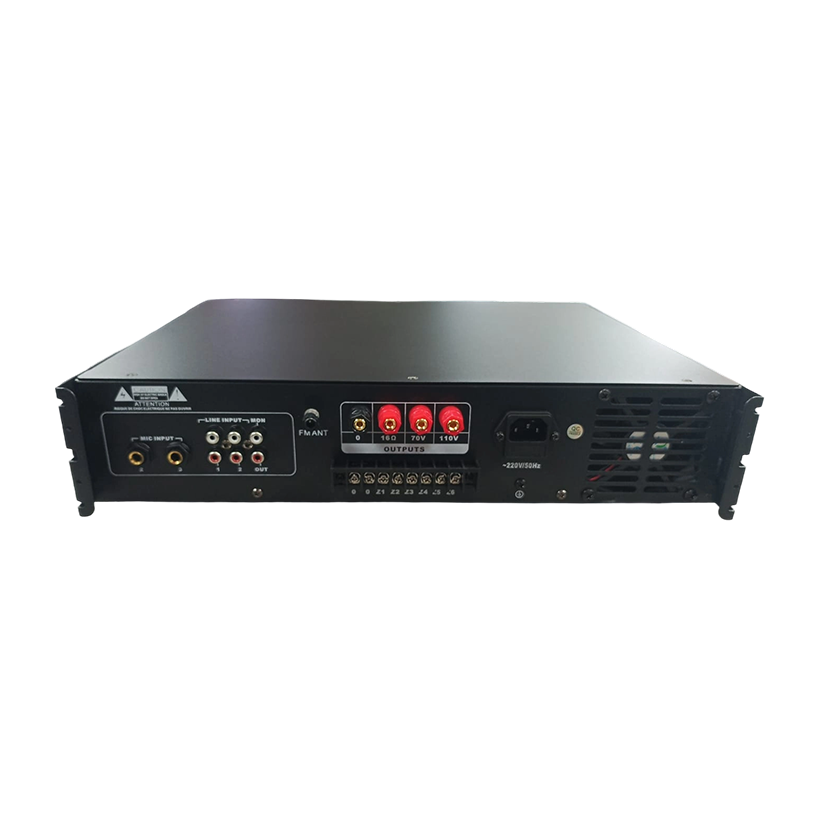

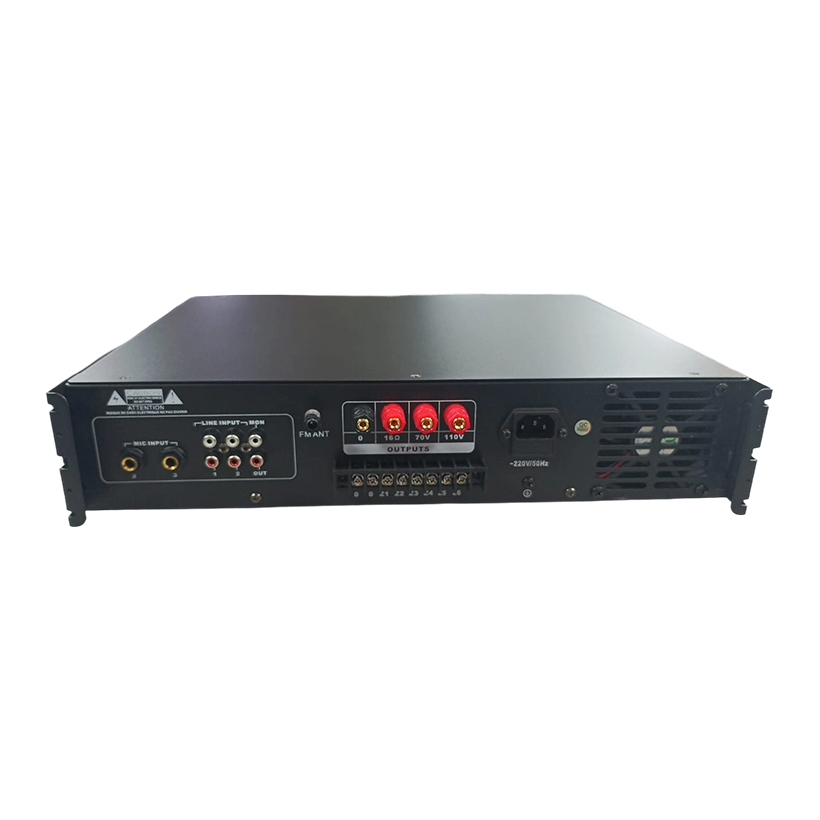

Microphone Inputs
-
3 × MIC input jacks (¼″ or balanced)
-
For connecting wired microphones or paging mics
Line Inputs & Output
-
RCA Line Inputs (L/R) — for external audio
-
Line Output / Pre Out — feeds external amps or recorders
FM Antenna
-
Connector for an FM radio antenna
-
Suggests integrated FM tuner
Speaker Outputs
Supports multiple PA speaker configurations:
-
Low-impedance (4–16Ω) output
-
70V output
-
100V output
Allows hooking up: -
Ceiling speakers
-
Wall speakers
-
Zone speaker clusters
Zone Terminal Block
-
6 zone outputs labeled Z1–Z6
-
Screw-type speaker terminals for each zone
-
Individual power routing for:
-
Classrooms
-
Hallways
-
Shops
-
Lounges
-
Offices
-
Protection & Cooling
-
Ventilation holes & fan
-
Prevents overheating during long use
Power Input
-
Standard 220V AC power inlet
-
Fuse protection
