CB1
A versatile choice for simpler protection

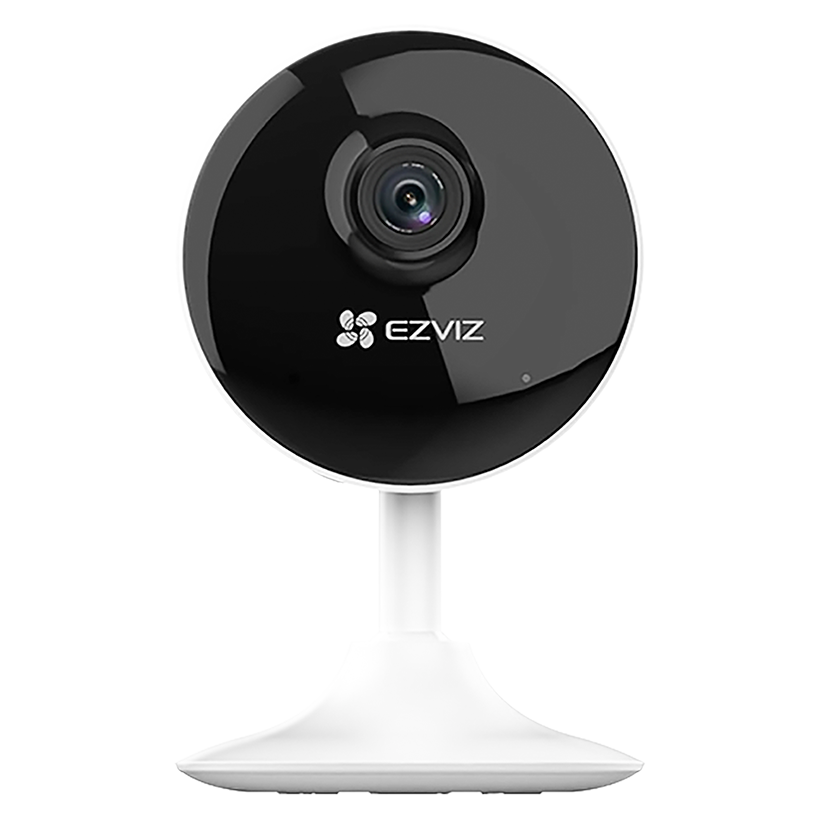

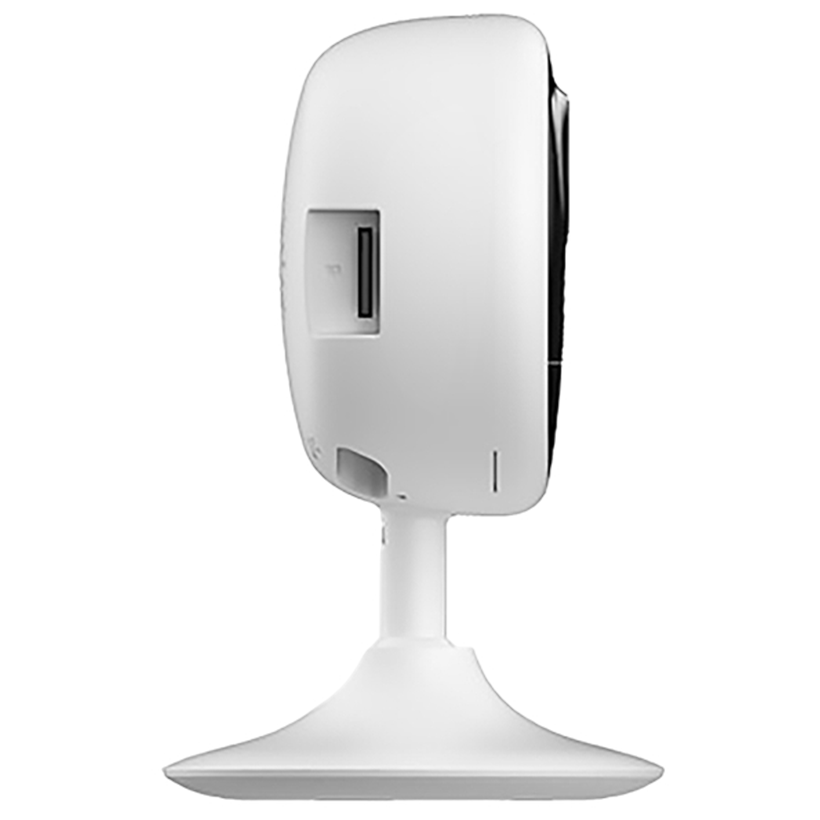

EZVIZ CB1 Smart Home Battery Camera Specifications
- Brand: EZVIZ
- Model: CS-CB1-R100-1K2WF
- Product Type: Wire-Free Indoor Smart Home Battery Camera
Camera Specifications
- Image Sensor: 1/3" 2MP Progressive Scan CMOS Sensor
- Lens: 2.8mm @ F2.2
- Viewing Angle:
- 113° Diagonal
- 90° Horizontal
- 50° Vertical
- Lens Mount: M12
- Shutter Speed: Self-Adaptive Shutter
- Minimum Illumination: 0.1 Lux
- Day & Night Mode: IR-cut Filter with Auto Switch
- DNR: 3D DNR
Night Vision
- Infrared Night Vision up to 5 meters (16 ft)
- Automatic low-light switching for nighttime monitoring
Smart Features
- Smart Human Motion Detection
- Customized Alert Area Support
- Real-time smart notifications
- Battery-powered wire-free installation
Audio Features
- Built-in Microphone and Speaker
- Two-Way Talk Communication
- Remote communication through EZVIZ mobile app
Video & Audio Specifications
- Maximum Resolution: 1920 × 1080 (Full HD)
- Frame Rate: Up to 15fps
- Adaptive frame rate during network transmission
- Video Compression: H.265 / H.264
- Video Bit Rate: Full HD / Hi-Def / Standard
- Audio Bit Rate: Self-Adaptive
- Maximum Bitrate: 1 Mbps
Storage Options
Local Storage
- Supports microSD Cards up to 512GB
Cloud Storage
- Supports EZVIZ CloudPlay (Subscription Required)
Network & Connectivity
Wi-Fi Specifications
- IEEE 802.11b/g/n
- Frequency Range: 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth: 20 MHz
Wireless Security
- 64/128-bit WEP
- WPA / WPA2
- WPA-PSK / WPA2-PSK
Transmission Rates
- 11b: 11 Mbps
- 11g: 54 Mbps
- 11n: 150 Mbps
Connectivity Features
- AP Pairing Supported
- EZVIZ Cloud Proprietary Protocol
- Wired Network: Not Supported
- Minimum Network Requirement: 2 Mbps
Power & Battery
- Power Supply: DC 5V / 1A (Purchased Separately)
- Battery Capacity: 1600 mAh Rechargeable Battery
Operating Conditions
- Operating Temperature:
- -10°C to 45°C (14°F to 113°F)
- Humidity: ≤95% Non-Condensing
Dimensions & Weight
Product Dimensions
Packaging Dimensions
Weight
- Bare Weight: 135g (4.76 oz)
Package Contents
- EZVIZ CB1 Camera
- Power Cable
- Foam Sticker
- Mounting Metal Plate
- Regulatory Information
- Quick Start Guide
Certifications
Ideal For
- Indoor home monitoring
- Baby monitoring
- Pet monitoring
- Wireless smart security setups
- Small office surveillance
