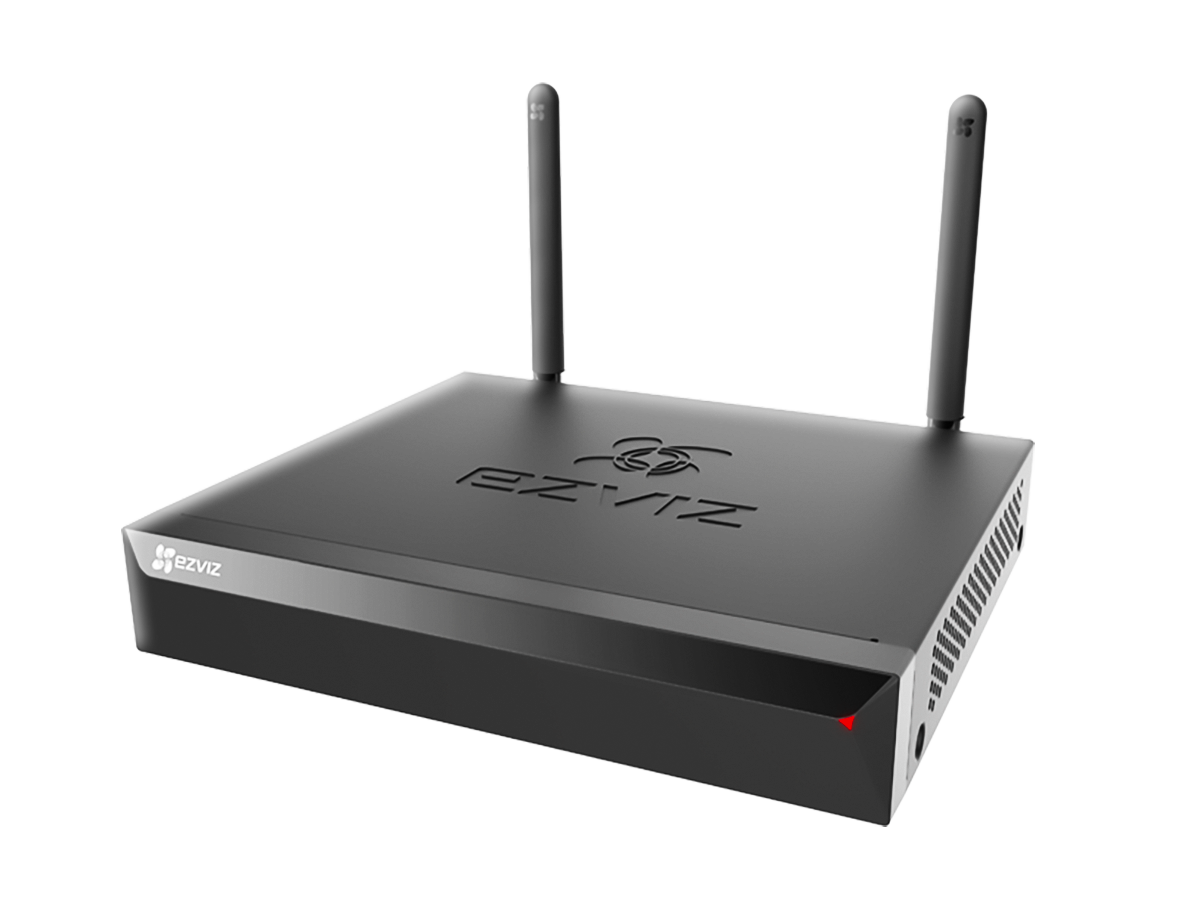

EZVIZ X5S Smart Home Wi-Fi NVR Specifications
- Brand: EZVIZ
- Model: X5S
- Product Type: Wireless/Wired Network Video Recorder (NVR)
IPC Access Capability
Wireless / Wired Camera Support
- Supports up to:
- 4 × 3K Cameras (X5S-4W)
- 8 × 3K Cameras (X5S-8W)
Wired IPC Access
- X5S-4W: Supports 4 × 3K cameras
- X5S-8W: Supports 8 × 3K cameras
Network Parameters
- Wireless Frequency: 2.4 GHz
- Antenna Quantity: 2
- Maximum Wireless Range: Up to 100 meters
- Ethernet Port:
- 1 × 10/100M Adaptive Ethernet Port
- Required Access Bandwidth:
- 50 Mbps / 100 Mbps
Video Output
HDMI Output
- 1 Channel HDMI Output
- Resolution up to 2592 × 1944 @ 30Hz
VGA Output
- 1 Channel VGA Output
- Resolution up to 1920 × 1080 @ 60Hz
- VGA output mirrors HDMI display
Recording Resolution
Supports multiple recording resolutions including:
- 3K
- 2K⁺
- 2K
- 1080p
- UXGA
- 720p
- VGA
- 4CIF / 2CIF / CIF / QCIF
Video Compression
- H.265
- H.264
- Efficient video storage and bandwidth optimization
Playback Capability
- X5S-4W: Supports playback of 4 × 3K channels
- X5S-8W: Supports playback of 8 × 3K channels
Recording Modes
- Manual Recording
- Motion Detection Recording
- Scheduled Recording
- Event Triggered Recording
Playback Modes
- Instant Playback
- Normal Playback
- Event Playback
- Tag Playback
- Log Event Playback
Backup Functions
- Hard Disk Backup
- Internet Application Backup
Open Protocol Support
- HIKVISION Protocol Support
- ONVIF Version 2.5 Supported
Storage
- Built-in SATA Interface ×1
- Supports 3.5-inch HDD
- HDD Capacity Support: 1TB to 8TB
External Interfaces
- USB 2.0 Ports: 2
- Audio Input/Output: Not Supported
- Hardware Reset Supported
Connectivity
- Wireless and wired camera integration
- Stable long-range wireless communication
Power Specifications
- Power Supply: DC 12V / 1.5A
- Power Consumption: ≤8W (Standby)
Dimensions & Weight
- Product Dimensions: 235 × 270 × 44.5 mm
- Packaging Dimensions: 387 × 362 × 75 mm
- Net Weight: 932g
Ideal For
- Smart home surveillance systems
- Villas and apartments
- Shops and offices
- Multi-camera security installations
