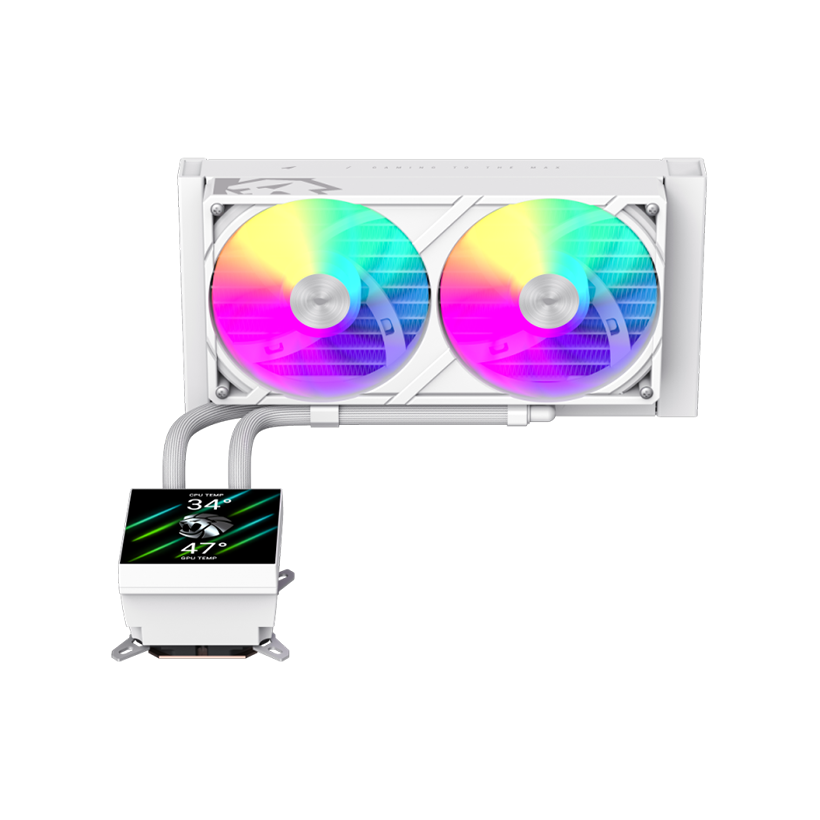

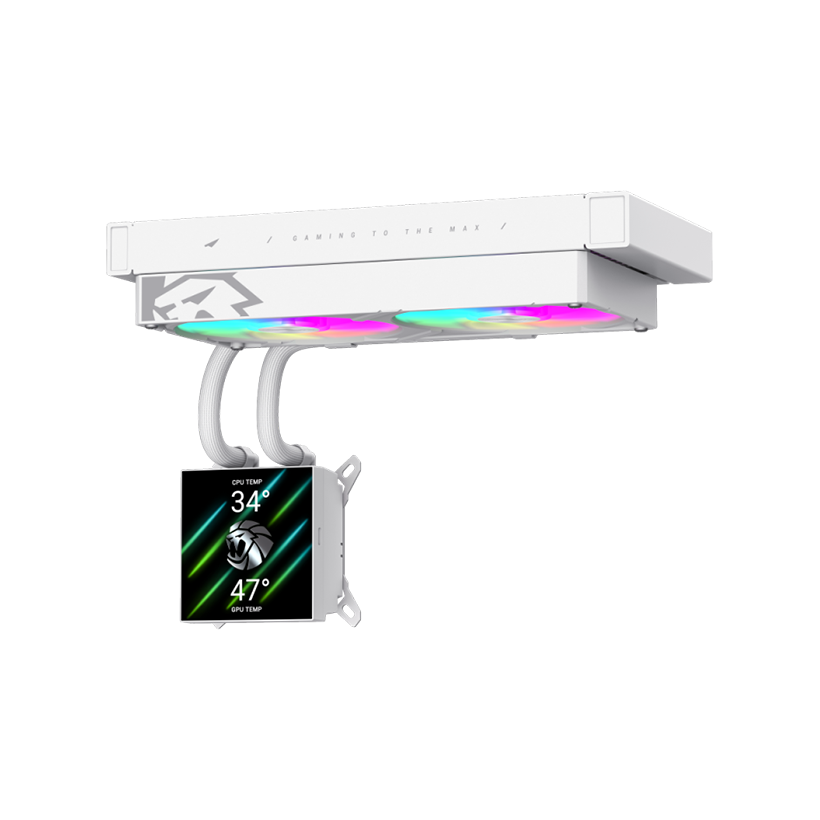

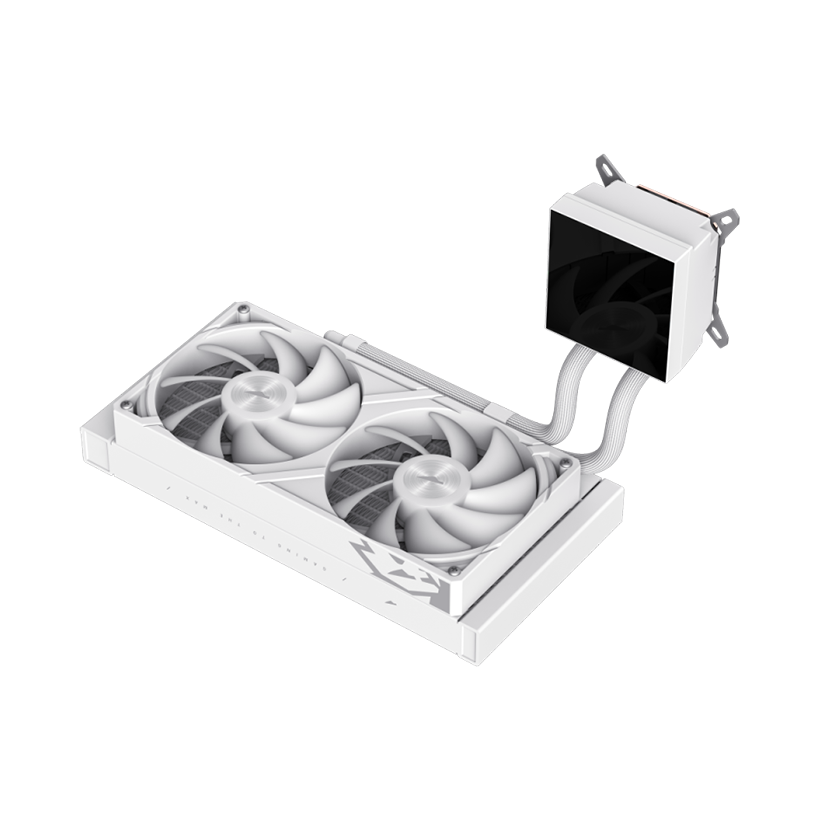

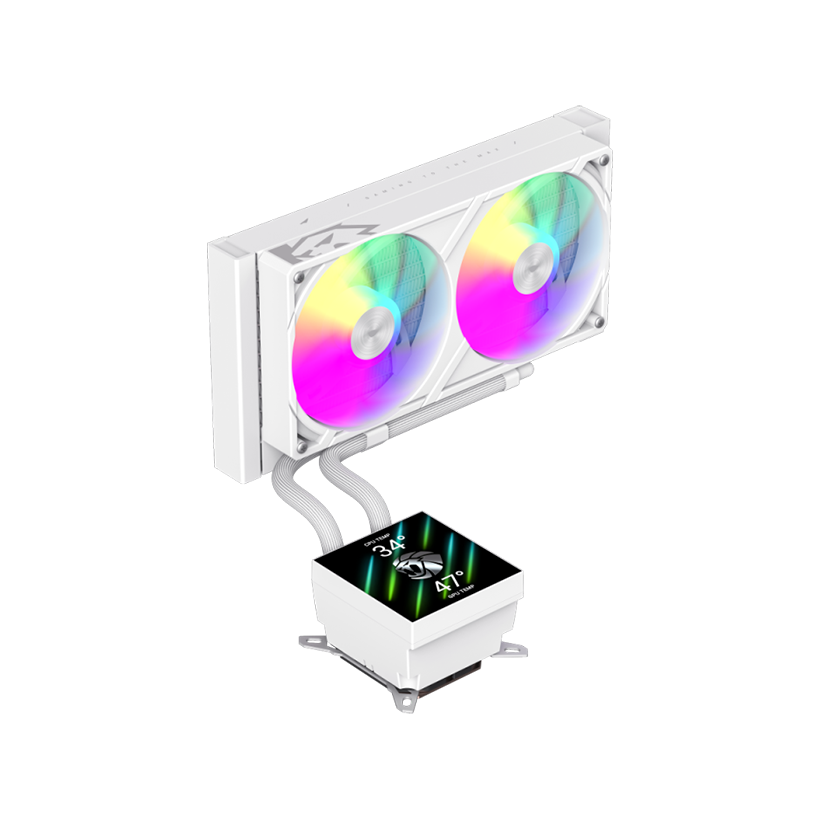

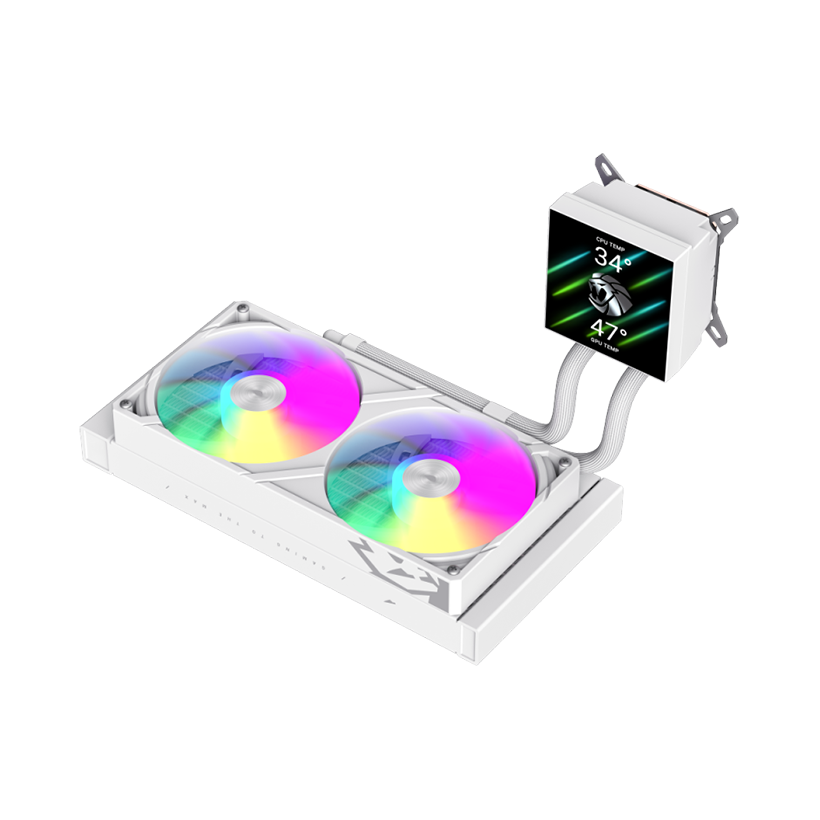

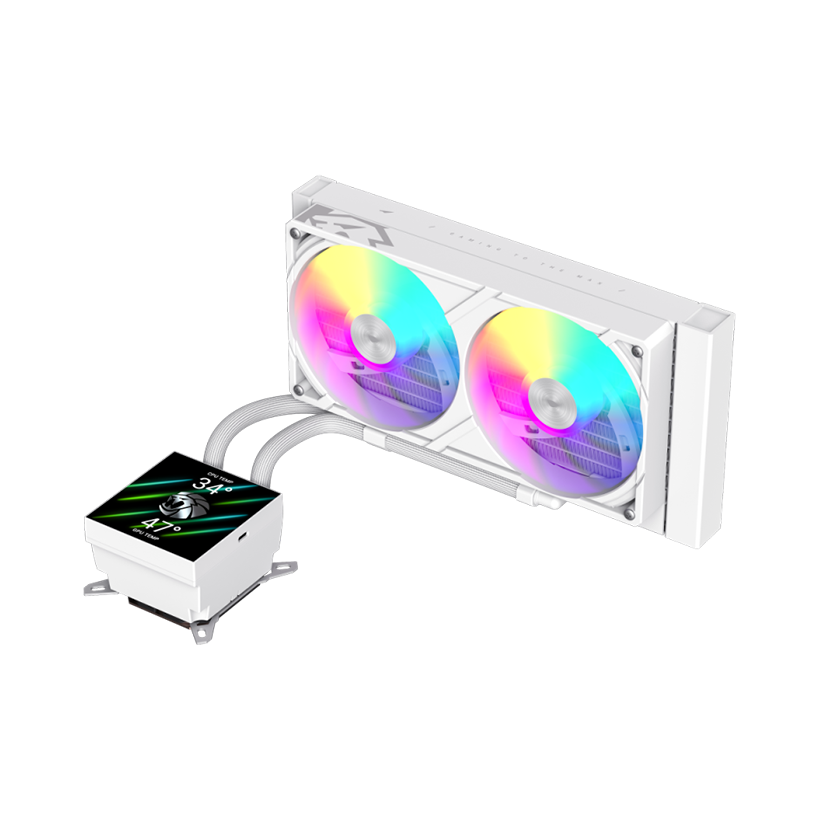

Key Features
- Supports up to 280W TDP cooling
- 3.95" LCD display (720 × 720, 60Hz, 300 nits)
- High-performance copper cold plate
- PWM-controlled pump and ARGB fans
- Quiet, efficient cooling design
- Compatible with Intel LGA 115X/1200/1366/1700/1851 & AMD AM4/AM5
Pump Specifications
- Dimensions: 79 × 96.5 × 62.5 mm
- Base Material: Copper
- Speed: 800–2500 RPM (PWM)
- Material: PPS
- Bearing: Stainless steel shaft
- Connector: PWM 4-pin
- Voltage: DC 12V
- Power: ≤4.2W
- Noise: ≤30 dB
- Flow Rate: 1300 mL/min
- Lift Head: 1.5 m
- MTBF: 30,000 hrs

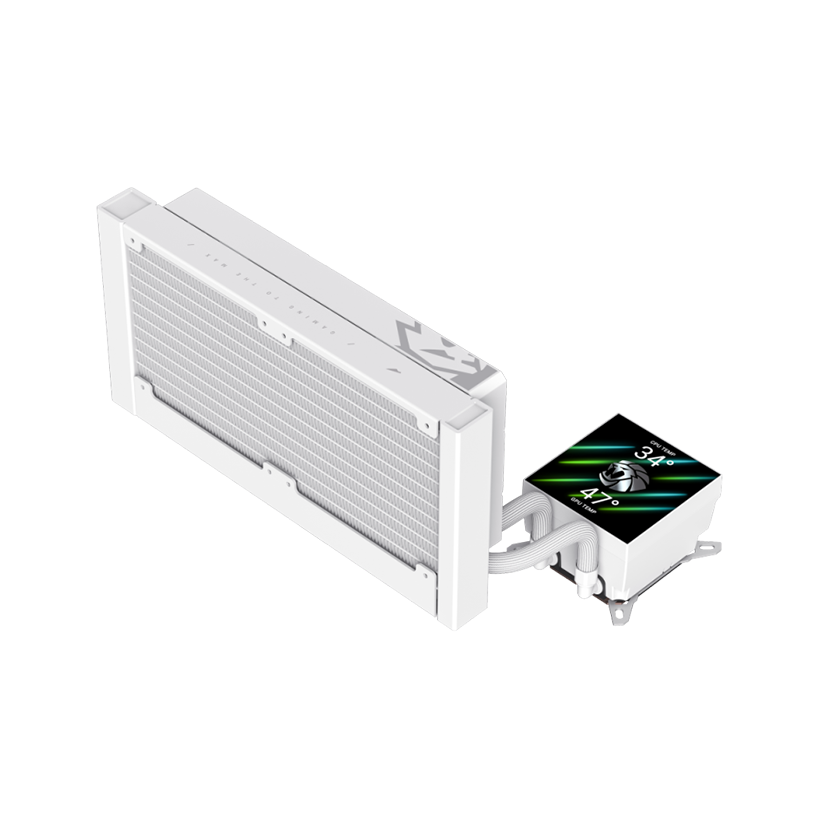

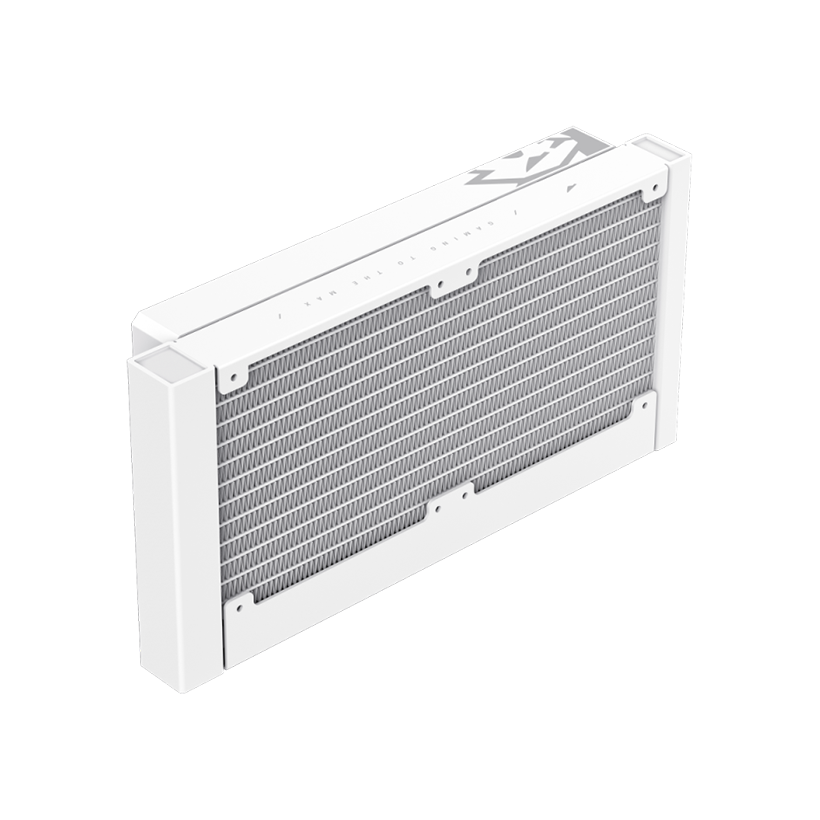

Radiator & Tubing
- Radiator Size: 277 × 139 × 27 mm
- Material: Aluminum
- Tubing: Braided pipe, 263 ±3 mm

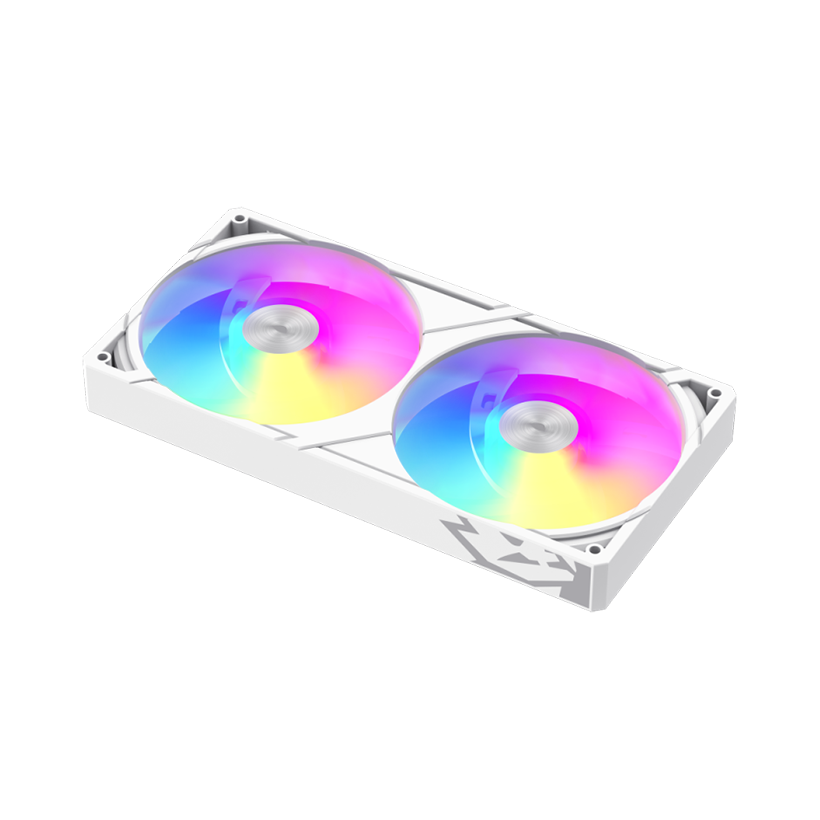

Fan Specifications
- Size: 240 × 120 × 25 mm
- Speed: 800–2000 RPM
- Airflow: 85.82 CFM
- Air Pressure: 2.23 mm-H₂O
- Bearing: Hydraulic
- Noise: 31.5 dB(A)
- Control: PWM + ARGB
- Power: 8.4W (12V DC)

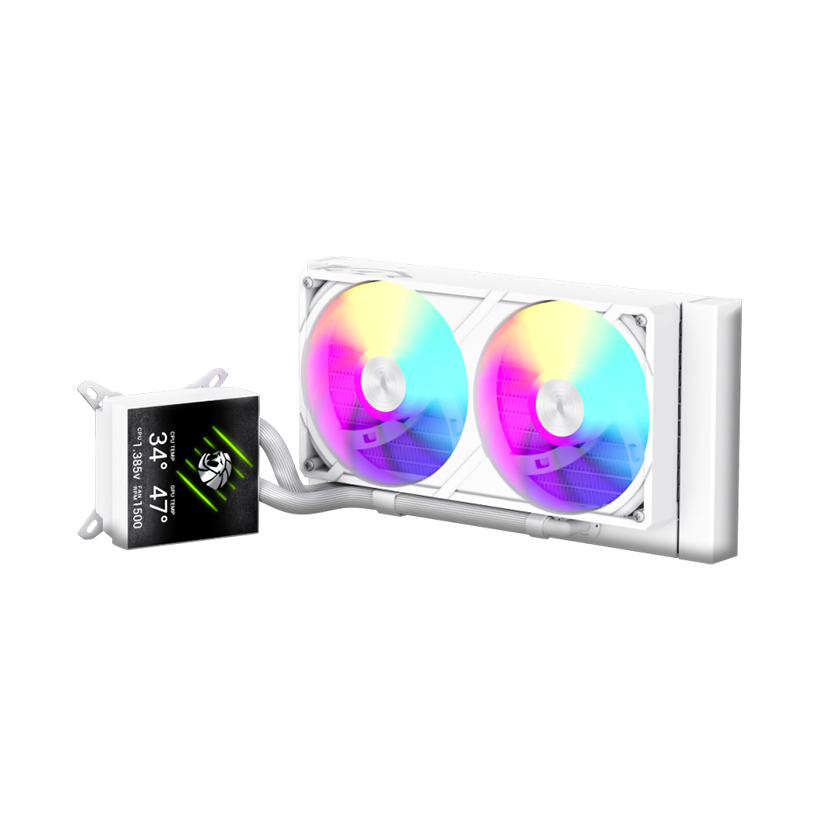

LCD Display
- Size: 3.95"
- Resolution: 720 × 720 px
- Refresh Rate: 60Hz
- Brightness: 300 nits
Compatibility
- Intel: LGA 115X / 1200 / 1366 / 1700 / 1851
- AMD: AM4 / AM5
Features:
280W TDP Cooling Support
3.95" LCD Display 60Hz
720×720 Resolution Display
300 Nits Brightness
Copper Cold Plate
PWM Pump Control
ARGB Fan Lighting
Quiet Cooling Design
Intel & AMD Compatible
LGA 115X/1200/1366 Support
LGA 1700/1851 Support
