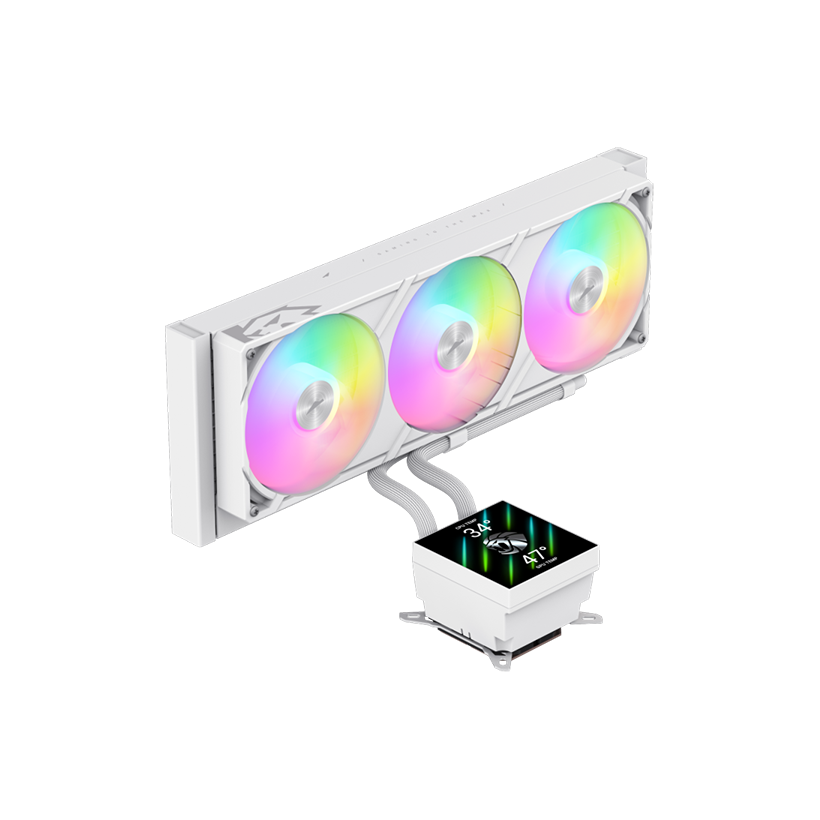

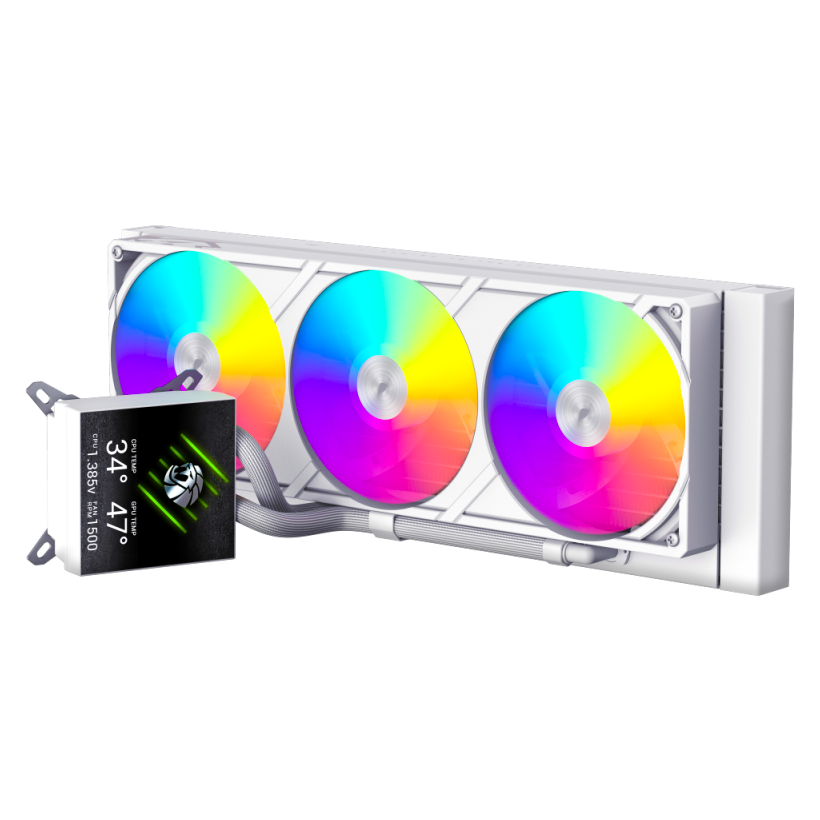

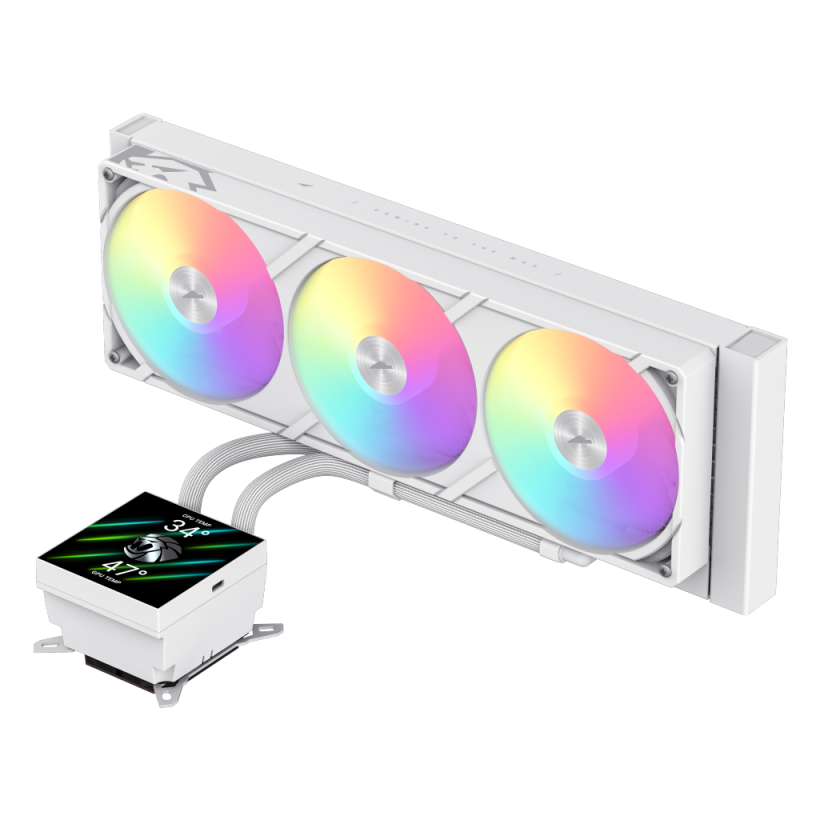

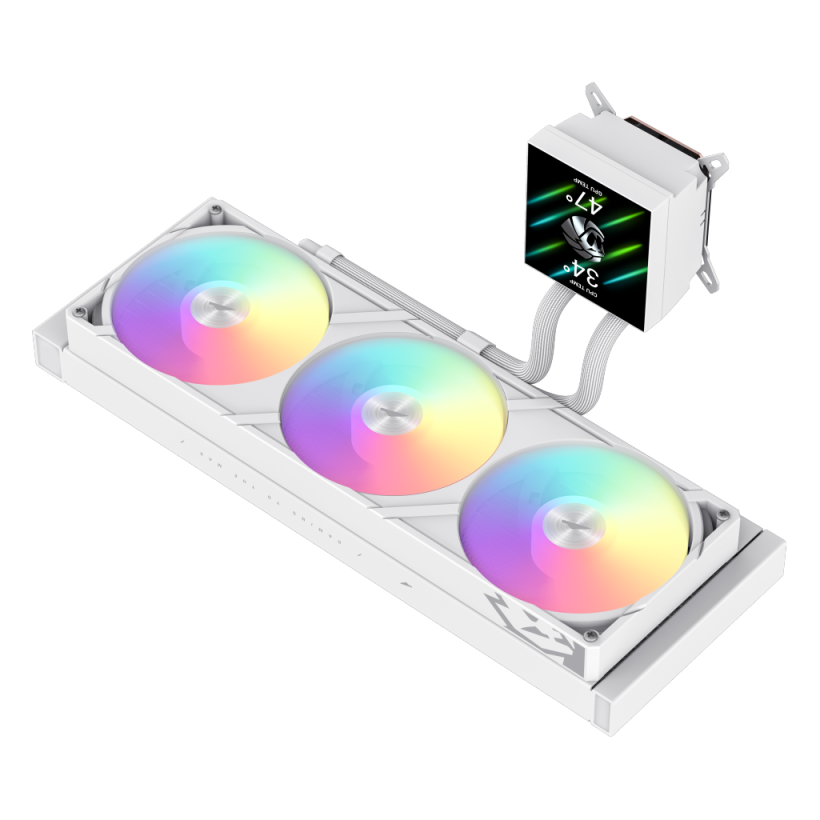

Key Features
-
Supports up to 330W TDP cooling capacity
-
Large 3.95-inch LCD display (720 × 720 resolution)
-

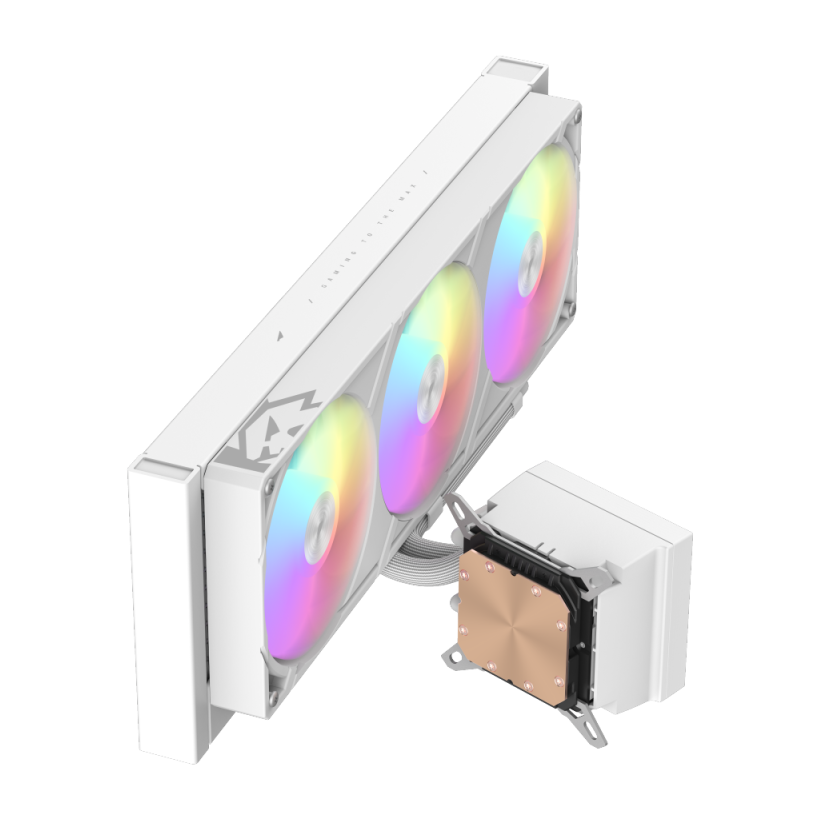

High-performance copper cold plate
-
360mm aluminum radiator for maximum heat dissipation
-
PWM-controlled pump and ARGB fans
-
Low-noise, high-airflow cooling solution
-
Compatible with latest Intel and AMD platforms
Pump Specifications
-
Pump Dimensions: 79 × 96.5 × 62.5 mm
-
Base Material (CPU Contact): Copper
-
Pump Speed: 800–2500 RPM ±200 (variable speed)
-
Pump Material: PPS
-
Pump Bearing: Stainless steel shaft
-
Pump Connector: PWM 4-pin
-
Rated Voltage: DC 12V
-
Rated Current: ≤0.35 A
-
Rated Power: ≤4.2 W
-
Noise (Max): 30 dB
-
Max Lift Head: 1.5 m
-
Minimum Discharge: 1300 mL/min
-
MTBF: 30,000 hours
-
Operating Temperature: -10°C to 60°C
-
Storage Temperature: -10°C to 70°C

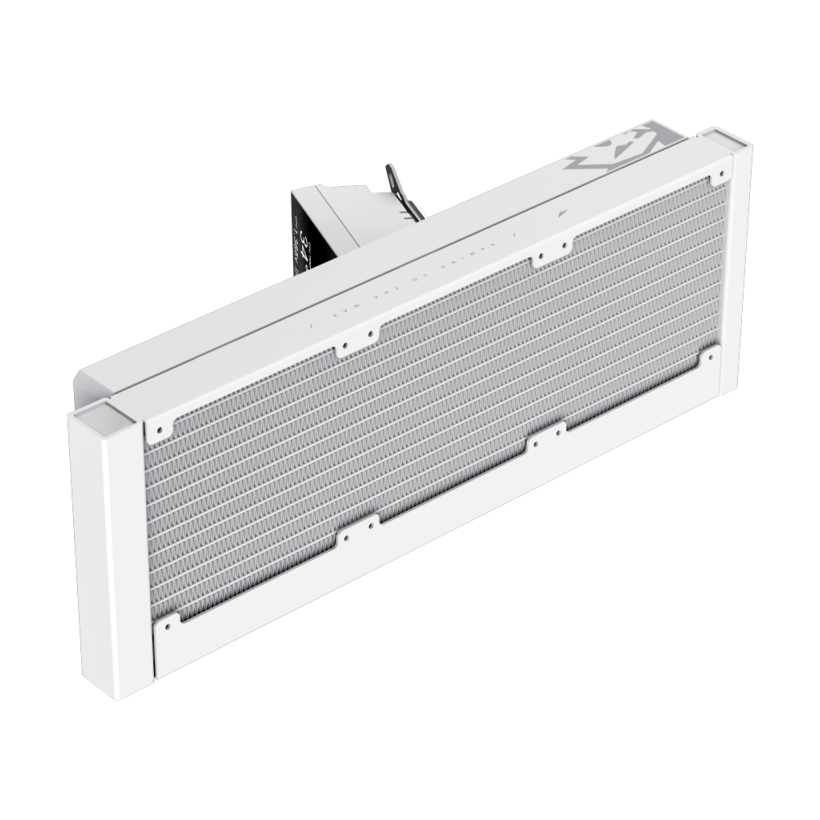

Radiator (Cold Plate)
-
Radiator Size: 395 × 139 × 27 mm
-
Material: Aluminum
Tubing
-
Material: Braided pipe
-
Length: 263 ±3 mm

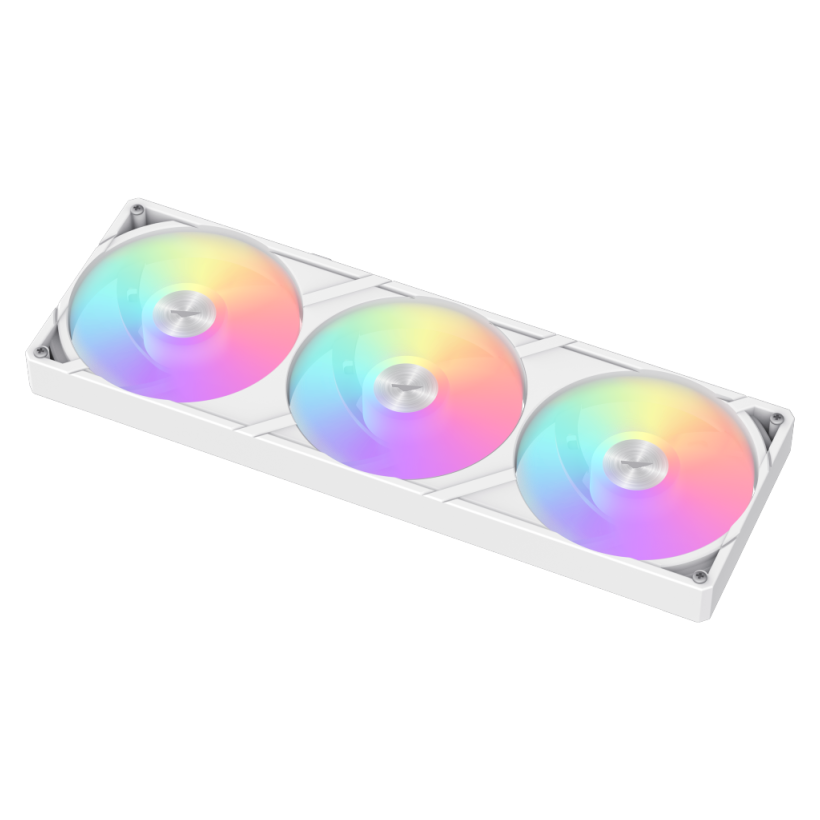

Fan Specifications
-
Model: 360mm integrated fan
-
Dimensions: 360 × 120 × 25 mm
-
Speed: 800–2000 RPM ±10%
-
Bearing: Hydraulic bearing
-
Air Pressure: 2.23 mm-H₂O
-
Airflow: 85.82 CFM
-
Noise Level: 31.5 dB(A)
-
Control Mode: PWM & ARGB
-
Rated Voltage: DC 12V
-
Rated Current: 1.05 A
-
Rated Power: 12.6 W

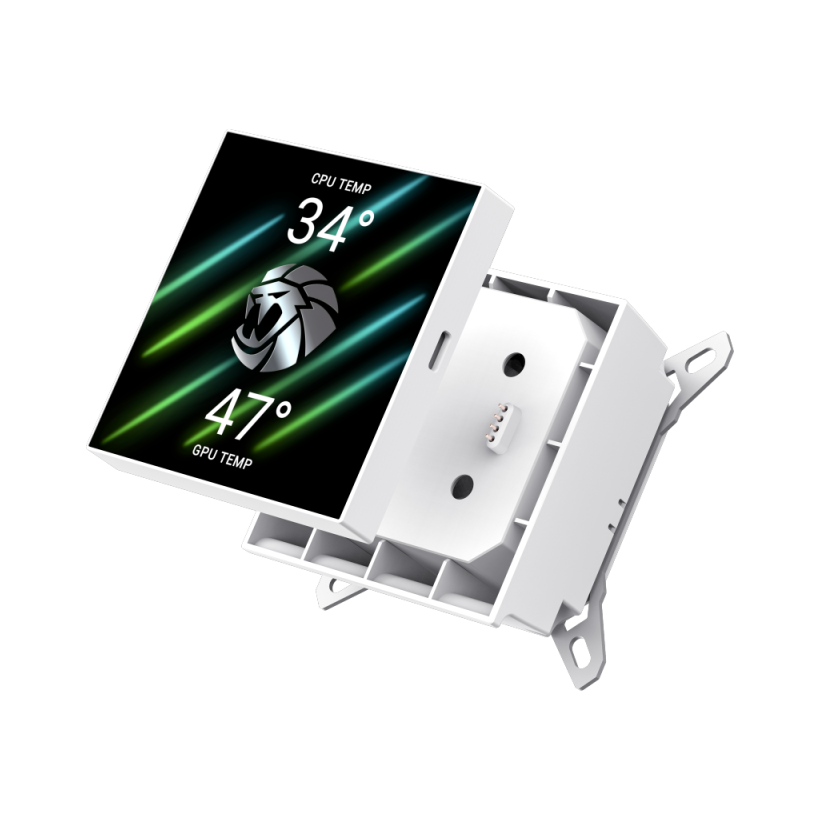

LCD Display
-
Size: 3.95″
-
Resolution: 720 × 720 px
-
Refresh Rate: 60Hz
-
Brightness: 300 nits
Compatibility
Intel: LGA 115X / 1200 / 1366 / 1700 / 1851
AMD: AM4 / AM5
