Key Features
-
Supports up to 220W TDP cooling performance
-
Integrated digital temperature display on top cover
-

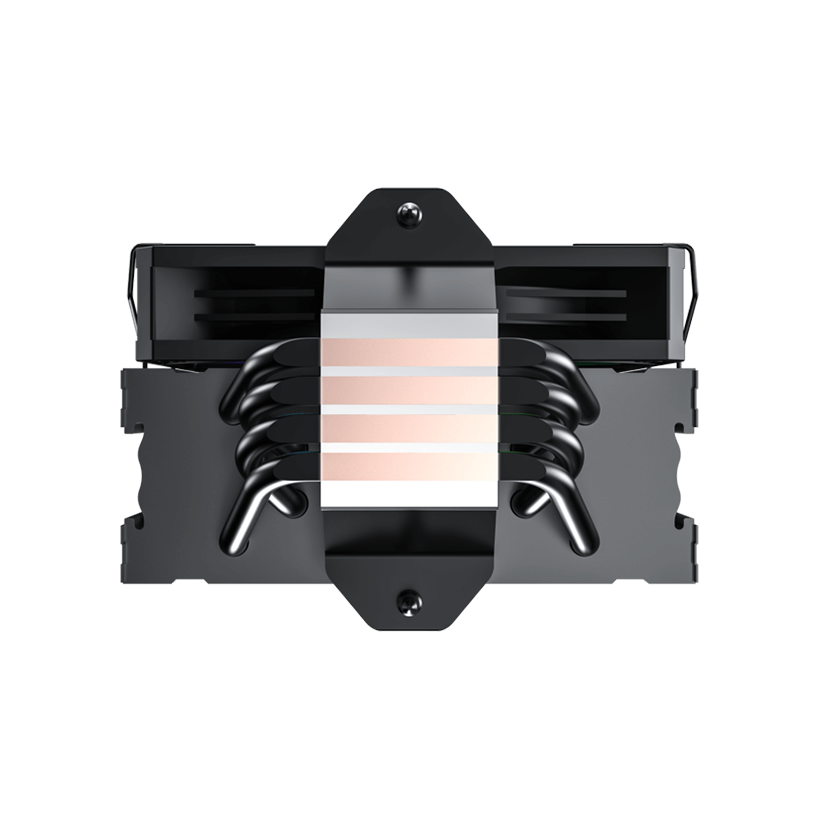

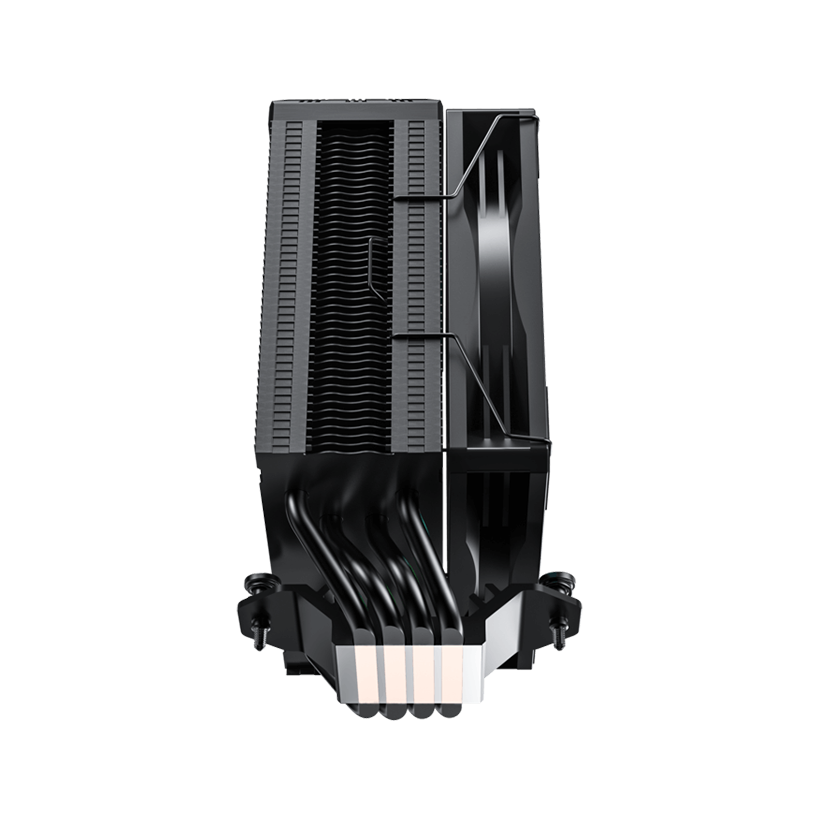

Six direct-touch heat pipes for rapid heat transfer
-

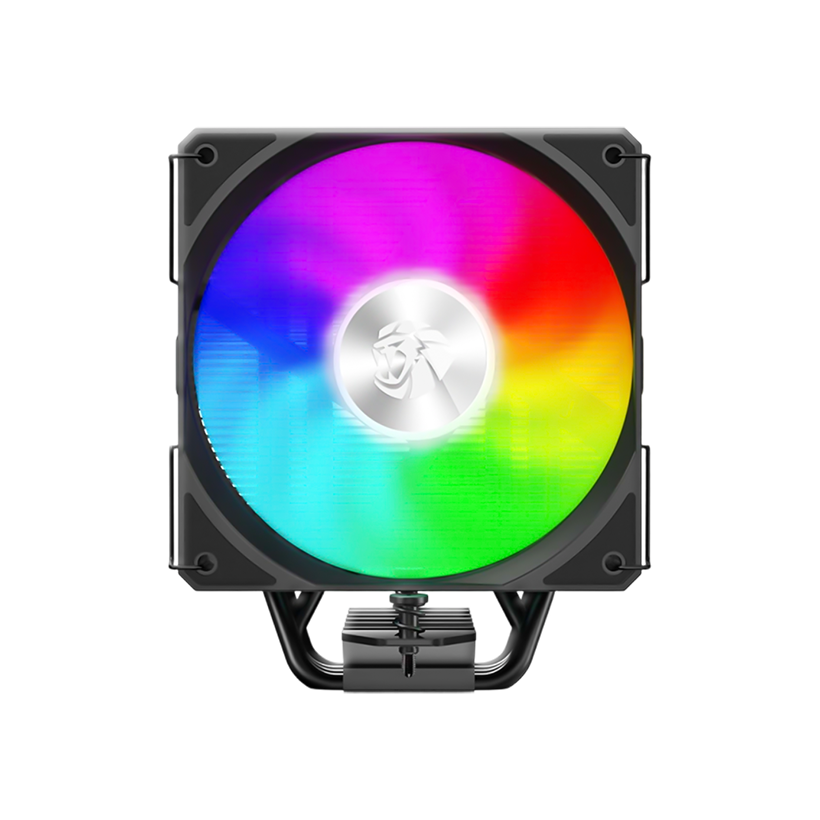

High-airflow 120mm PWM fan with low noise operation
-
Hydro bearing for durability and quiet performance
-
Elegant white design for gaming and showcase PC builds
Technical Specifications
-
Overall Dimensions: 125 × 95 × 157 mm (L × W × H)
-
Weight: Approx. 600 g
-
TDP Rating: 220W
-
Heat Pipes: 6 × 4 mm direct-touch heat pipes
-
Heat Base Material: Heat pipes direct touch
-
Surface Treatment: Oil injection
-
Top Cover: Digital temperature display
Fan Specifications
-
Fan Size: 120 × 120 × 25 mm
-
Fan Frame Color: White
-
Fan Blades: 7 blades, milk white
-
Fan Speed: 800–1800 RPM (PWM) ±10%
-
Rated Voltage: 12 VDC
-
Rated Current: 0.35A ±0.03A
-
Bearing Type: Hydro bearing
-
Fan Lifespan: 30,000 hours
-
Static Pressure: 0.46–2.09 mmH₂O ±10%
-
Airflow: Up to 74.8 CFM
-
Noise Level (Max): 33.8 dB(A)
-
Connector: 4-pin PWM
CPU Compatibility
Intel: LGA 1851 / 1700 / 1366 / 1200 / 115X
AMD: AM5 / AM4
