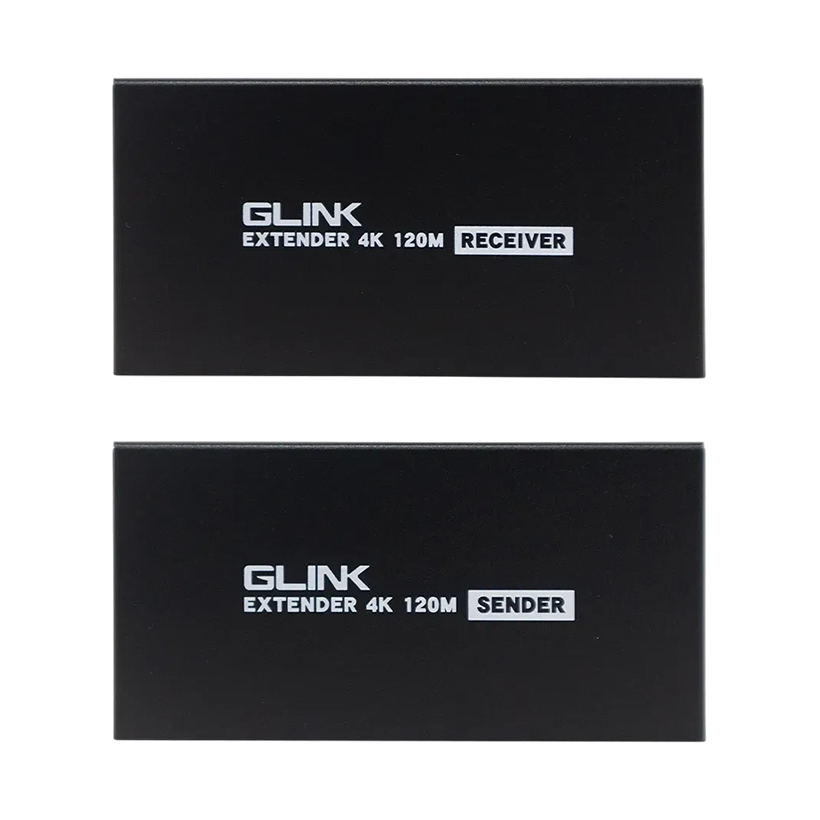

Glink GL-040 HDMI KVM Extender 120M 4K
The Glink GL-040 is a high-performance HDMI KVM extender designed to transmit 4K HDMI video, USB keyboard and mouse signals, audio, and IR remote control over a single CAT5e/6 cable for distances up to 120 meters. Ideal for security monitoring systems, offices, industrial control rooms, server rooms, and long-distance computer operation.
Specifications
General
- Model: Glink GL-040
- Function: HDMI KVM Extender (Transmitter & Receiver Set)
Transmission
- Transmission Media: Single CAT5e / CAT6 / CAT6A / CAT7 UTP Cable
- Maximum Transmission Distance: Up to 120 meters using pure copper CAT6 cable
- Supported Resolution: 4K × 2K @ 30Hz (3840 × 2160)
- Video Bandwidth: Up to 3.4Gbps
- HDMI Version: HDMI 1.4b
- HDCP Compliance: HDCP 1.4
Audio Support
- Supports LPCM 7.1 Audio
- Supports DTS Digital & Dolby Digital
- Supports DTS-HD & Dolby TrueHD

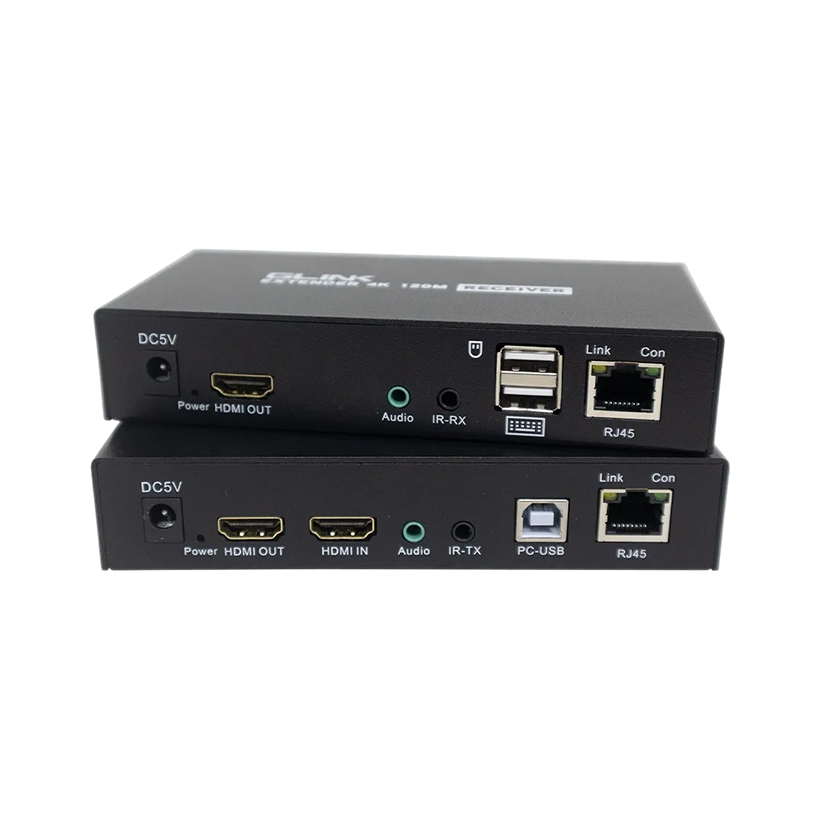

USB & Control Features
- USB extension for keyboard and mouse control
- Supports USB touch screen control
- IR TX/RX ports for remote IR signal transmission
- 3.5mm Audio Input/Output ports for external audio extension
Features
- Extends HDMI, USB, Audio, and IR signals over a single network cable
- Long-distance transmission up to 120M with stable performance
- Supports Ultra HD 4K video output
- Plug & Play installation without additional software
- Ideal for surveillance systems, conference rooms, data centers, and multimedia applications
- Compact and durable design for professional installations
