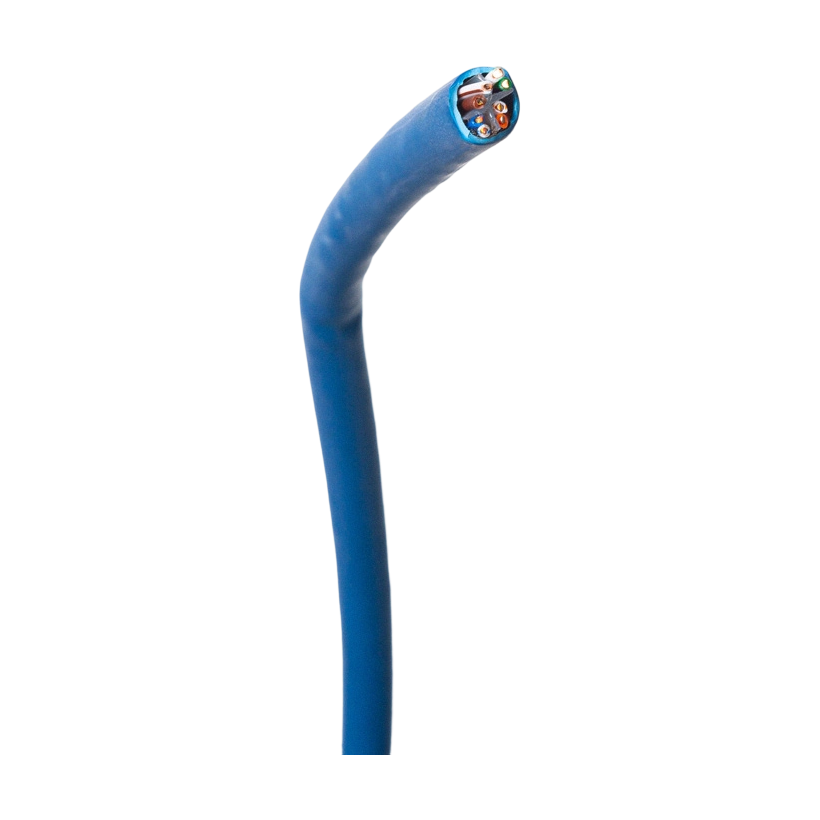

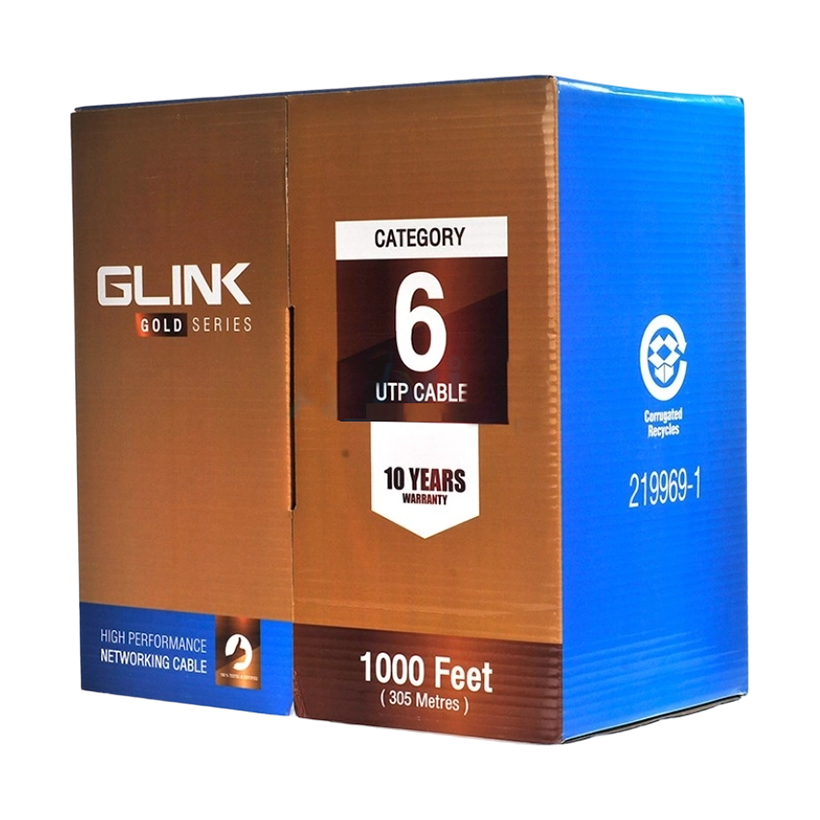

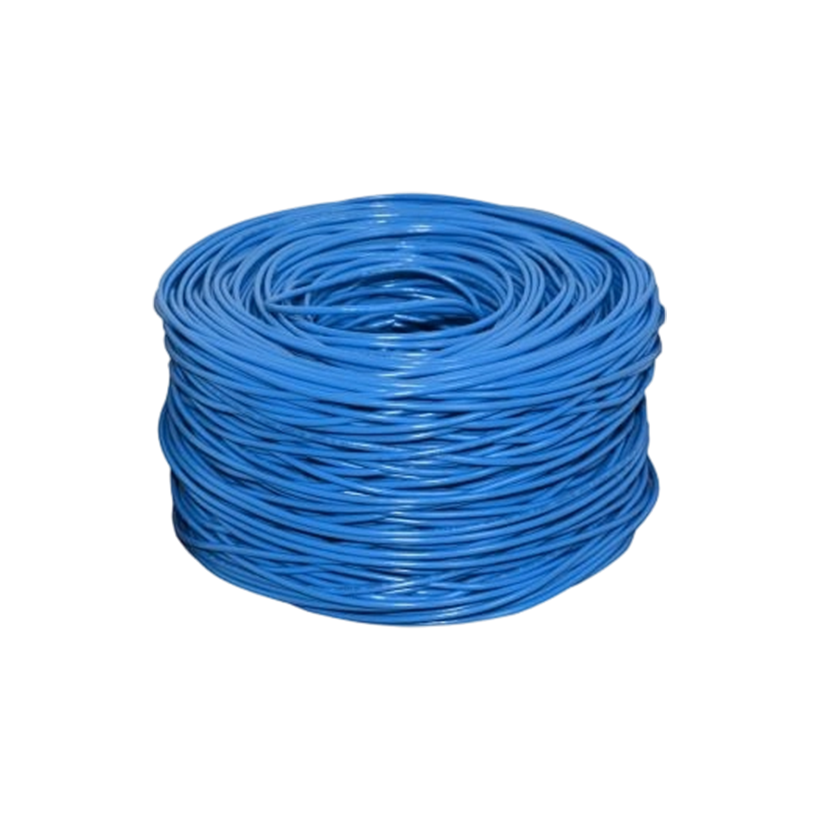

GLINK CAT 6 LAN Cable (305m) – Model GLG-6004
The GLINK GLG-6004 is a Category 6 Ethernet cable designed for structured networking installations, supporting stable data transmission and Power over Ethernet (PoE) applications over long distances.
Key Specifications
Category:
CAT 6 Ethernet cable
Length:
305 meters (bulk roll)
Conductor Material:
CCA (Copper-Clad Aluminum)
Insulation Materials:
PVC / HDPE
RoHS Compliance:
Yes
PoE Support:
Yes, suitable for Power over Ethernet with reduced heating characteristics
Installation Type:
Easy-pull design for structured cabling
AWG & Conductor Comparison
| Feature | 23 AWG | 24 AWG |
|---|---|---|
| Wire Diameter | 0.57 mm | 0.52 mm |
| Physical Size | Larger | Smaller |
| Copper Content | Higher | Lower |
| Resistance | Lower | Higher |
| Signal Efficiency | Better for long runs | Moderate |
| Ideal Use | Long-distance runs, PoE setups | Shorter runs, general networking |
Key principle:
A lower AWG number means a thicker conductor with more copper content, lower electrical resistance, and improved performance. This is especially important for PoE systems where stable power delivery and reduced heat buildup are required.
Materials & Safety
- CCA Conductors: Cost-effective alternative to pure copper
- PVC / HDPE Insulation: Provides durability and electrical isolation
- PoE Performance: Lower resistance helps reduce heat generation
- Fire Safety: Improved safety profile due to controlled heating and insulation materials
