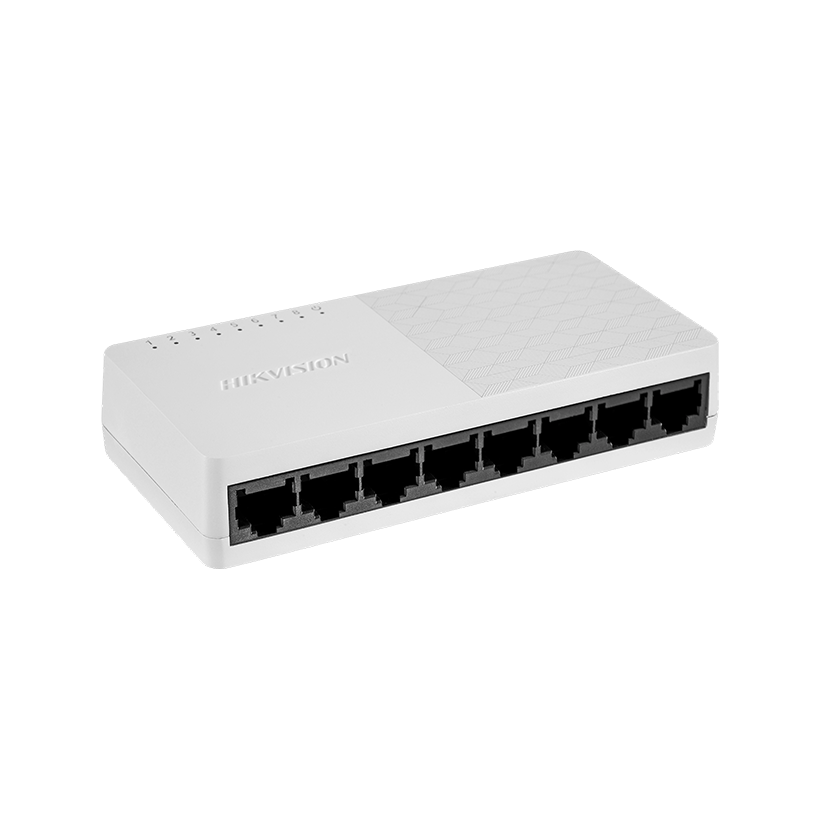

8-port Fast Ethernet switch is a simple, reliable solution for expanding small wired networks. With eight 10/100 Mbps RJ45 ports, it’s well-suited for basic connectivity needs such as CCTV systems, access control, point-of-sale devices, and small office or home networks.
It’s completely plug-and-play, requiring no configuration or technical setup.
Key Features (Plain English)
-
8 × 10/100 Mbps Ethernet ports
Connect multiple IP cameras, PCs, printers, or network devices. -
Auto MDI/MDIX
Automatically adapts to cable type—no crossover cables needed. -
Store-and-forward switching
Improves reliability by checking data packets before forwarding. -
Automatic MAC address learning & aging
Ensures efficient traffic management without user intervention. -
Compact, lightweight plastic housing (ABS)
Durable and easy to install in tight spaces. -
Desktop or wall-mount installation
Flexible placement options. -
Plug & Play operation
No configuration, no management, no maintenance.
Performance & Capacity
-
Switching capacity: 1.6 Gbps
-
Packet forwarding rate: 1.19 Mpps
-
MAC address table: 2K entries
-
Internal cache: 768 Kbits
Designed for stable, low-to-moderate bandwidth networks.
Power & Reliability
-
Power supply: 5 VDC / 0.6 A
-
Max power consumption: 3 W
-
Surge protection: 2 KV
-
Operating temperature: 0 °C to 40 °C
Energy-efficient and suitable for continuous indoor operation.
Physical Specifications
-
Material: ABS plastic
-
Weight: 0.059 kg
-
Dimensions: 124 × 22 × 52 mm
-
Installation: Desktop-mounted or wall-mounted
Slim profile makes it easy to integrate into existing setups.
