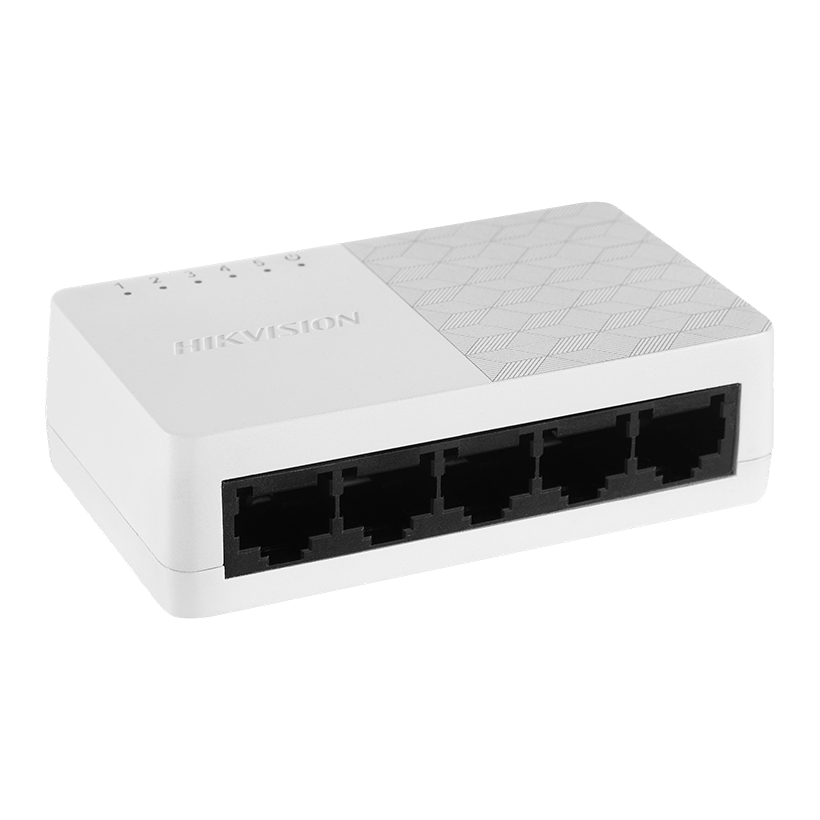

DS-3E0505D-O is a compact 5-port Gigabit Ethernet switch built for high-speed, small-scale networks. With full 10/100/1000 Mbps support on all ports, it delivers significantly better performance than Fast Ethernet switches while keeping installation simple and power consumption low.
It’s fully plug-and-play, making it ideal for users who want Gigabit speed without configuration complexity.
Key Features (Plain English)
-
5 × Gigabit Ethernet ports (10/100/1000 Mbps)
Handles high-speed devices like PCs, NVRs, NAS, and routers. -
Auto MDI/MDIX
Any Ethernet cable works—no crossover cables needed. -
Store-and-forward switching
Improves reliability by verifying packets before forwarding. -
Automatic MAC learning & aging
Efficient traffic handling with zero manual setup. -
Compact plastic housing (ABS)
Lightweight, durable, and space-saving. -
Desktop or wall-mount installation
Flexible placement for small offices or cabinets. -
Plug & Play
No configuration, no management required.
Performance & Capacity
-
Switching capacity: 10 Gbps
-
Packet forwarding rate: 7.44 Mpps
-
MAC address table: 2K entries
-
Internal cache: 1 Mbit
This is 10× the switching capacity of Fast Ethernet models, making it suitable for modern networks.
