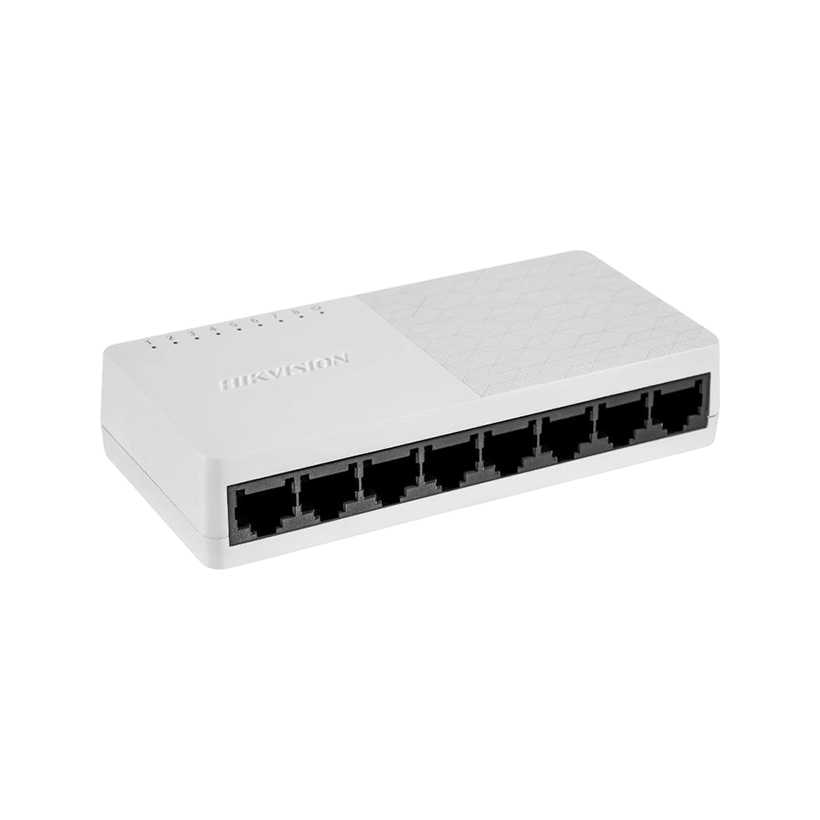

DS-3E0508D-O is a high-performance 8-port Gigabit Ethernet switch designed for fast, reliable connectivity in small to medium networks. With 10/100/1000 Mbps support on all ports, it’s ideal for environments that require higher bandwidth, such as modern offices, high-resolution CCTV systems, and file-sharing networks.
It’s fully plug-and-play, requiring no configuration or management.
Key Features (Plain English)
-
8 × Gigabit Ethernet ports (10/100/1000 Mbps)
Supports high-speed devices such as PCs, NVRs, NAS, and routers. -
Auto MDI/MDIX
Works with any Ethernet cable—no crossover cables needed. -
Store-and-forward switching
Ensures reliable data transmission by verifying packets before forwarding. -
Automatic MAC address learning & aging
Efficient and maintenance-free traffic handling. -
Compact ABS plastic housing
Lightweight, durable, and space-saving. -
Desktop or wall-mount installation
Flexible placement for offices, racks, or cabinets. -
Plug & Play
No setup, no configuration, no IT overhead.
Performance & Capacity
-
Switching capacity: 16 Gbps
-
Packet forwarding rate: 11.90 Mpps
-
MAC address table: 4K entries
-
Internal cache: 1.5 Mbits
Built to handle high-throughput traffic with multiple active devices.
Power & Reliability
-
Power supply: 5 VDC / 1 A
-
Max power consumption: 5 W
-
Surge protection: 2 KV
-
Operating temperature: 0 °C to 40 °C
Energy-efficient and stable for continuous indoor operation.
Physical Specifications
-
Material: ABS plastic
-
Weight: 0.093 kg
-
Dimensions: 124 × 25 × 61 mm
-
Installation: Desktop-mounted or wall-mounted
Compact footprint with room for additional ports.
