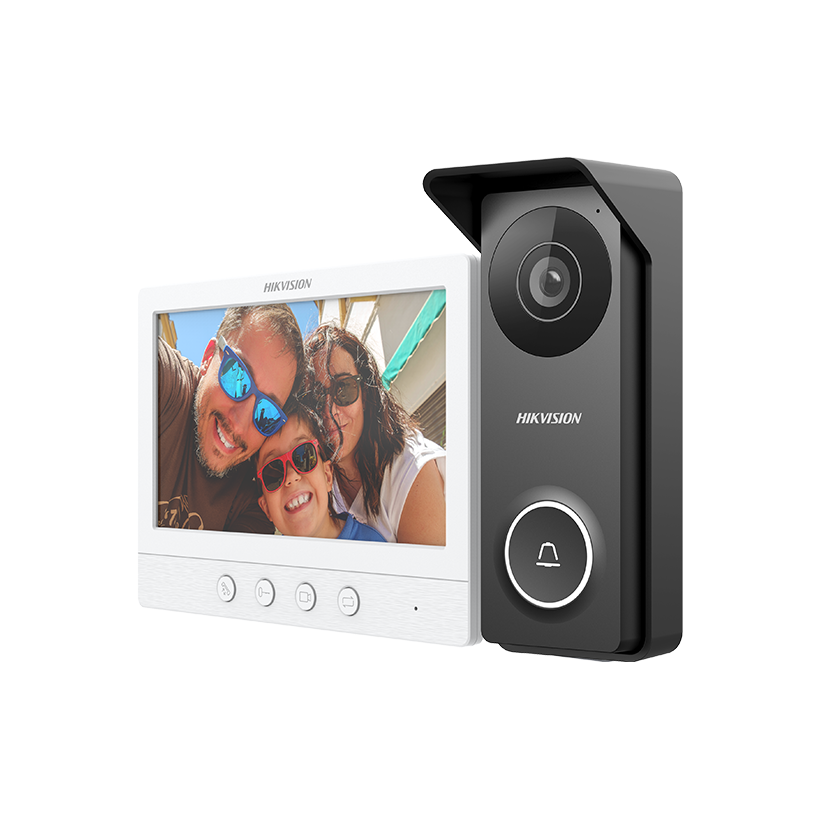

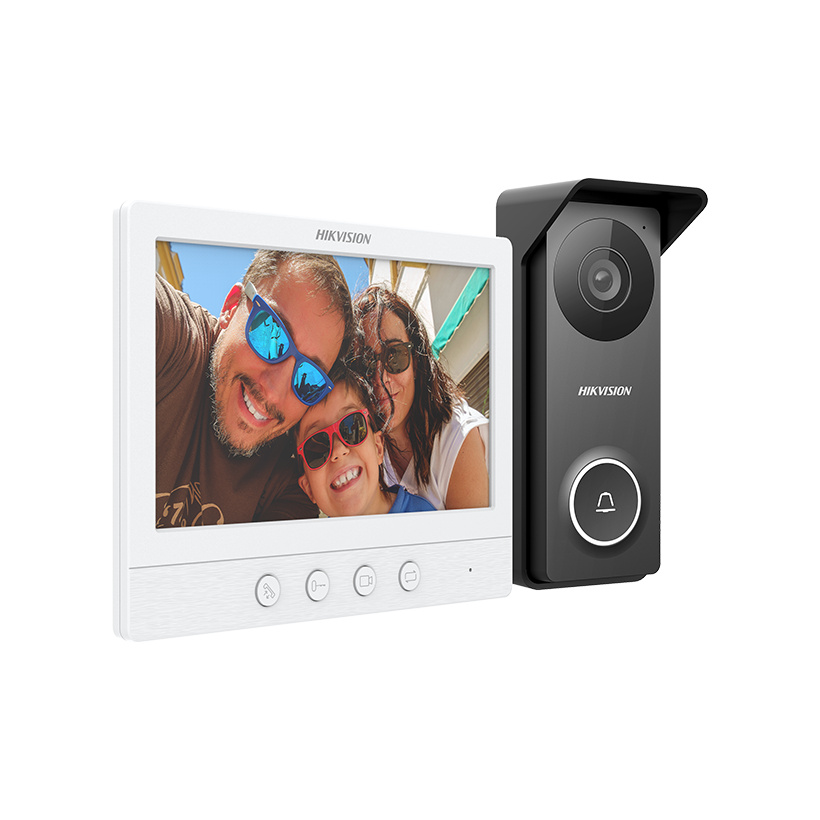

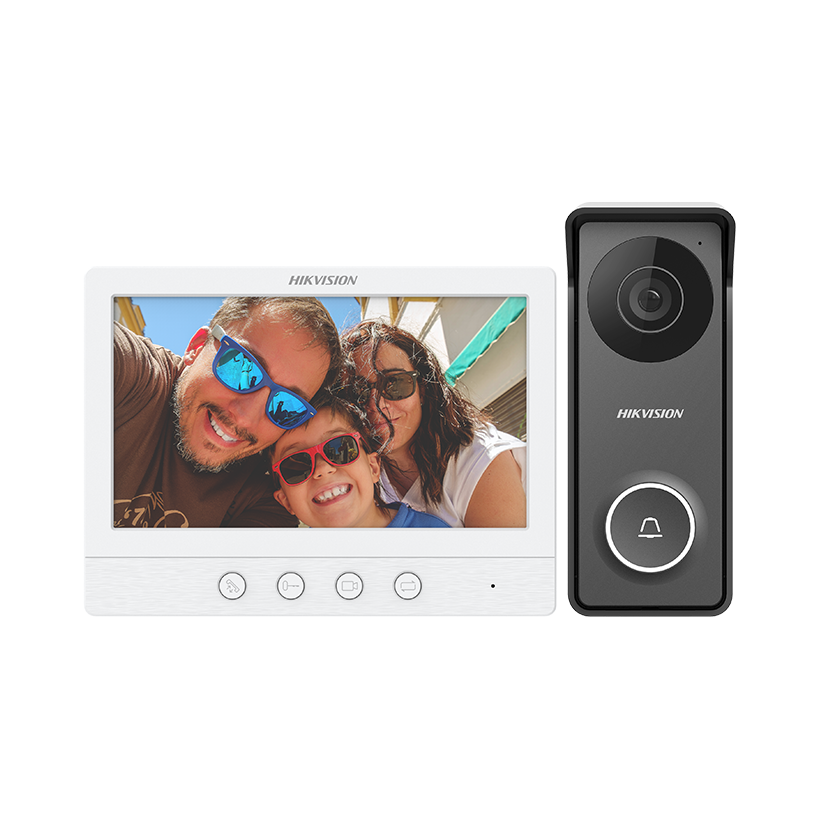

Hikvision DS-KIS213 4-Wire HD Intercom Kit – 4-Wire Video Door Intercom System
Description
The Hikvision DS-KIS213 4-Wire HD Intercom Kit is a wired HD video intercom system designed for homes, offices, and small buildings. It provides reliable two-way audio communication, HD video monitoring, and remote door unlocking through a simple 4-wire installation system. With weatherproof construction and infrared night vision, it is built for stable long-term security use.
Package
- Outdoor Door Station (HD 720p camera unit)
- Indoor 7-inch TFT monitor
Specifications

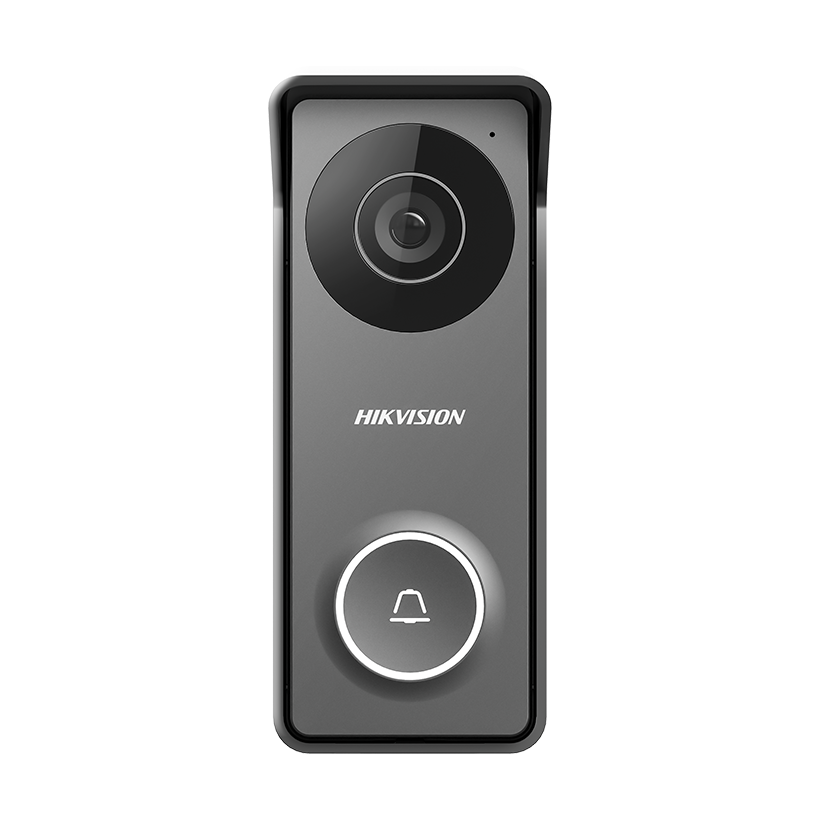

Outdoor Door Station
- Video Resolution: 1280 × 720 @ 60fps
- Field of View:
- Horizontal: 117°
- Vertical: 70°
- Diagonal: 141°
- Night Vision: IR illumination up to 3 meters
Audio
- Built-in omnidirectional microphone (~50 cm effective range)
- Built-in loudspeaker
- Audio output:
- 76 dB @ 30 cm
- 72 dB @ 50 cm
Interfaces
- 4-wire connection interface
- 1 relay lock control (max 30V / 1A)
- Debug port included
General
- Power Supply: 12V DC
- Power Consumption: Max 4W
- Operating Temperature: –30°C to 60°C
- Humidity Range: 10% to 90%
- Protection Rating: IP65 (weatherproof), IK08 (vandal-resistant)
- Installation: Surface mount
- Material: Metal body
- Button: Single call button

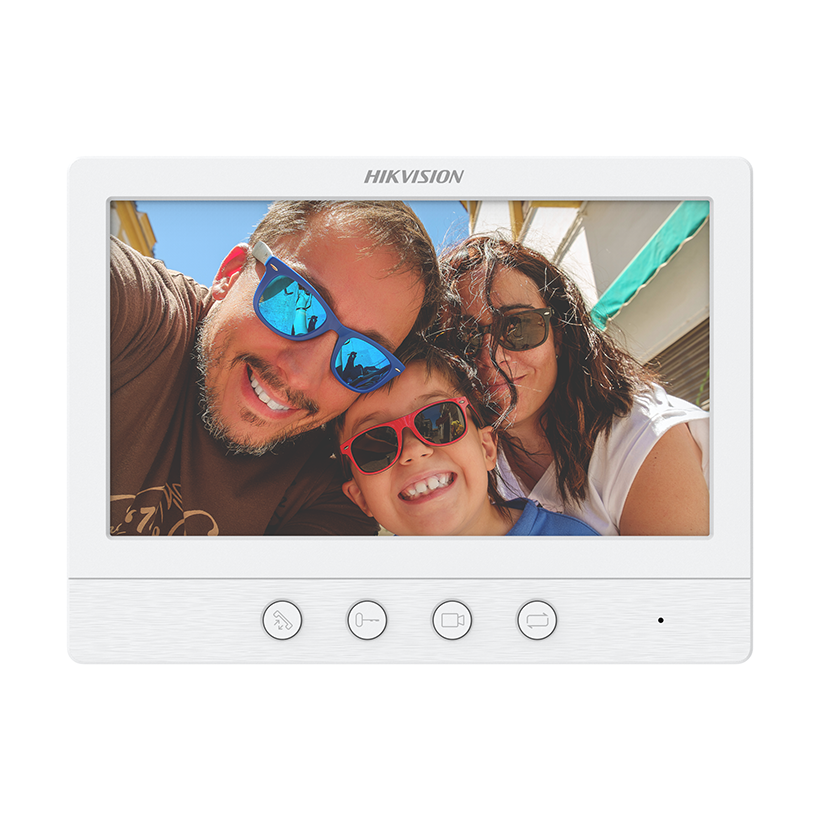

Indoor Monitor
- Display: 7-inch TFT LCD screen
- Resolution: 1024 × 600
- Control: Physical button interface
- Built-in microphone and speaker (two-way communication)
Use Case
- Residential door entry systems
- Small office security intercom
- Villa and apartment visitor communication
- Basic wired video surveillance and access control system
