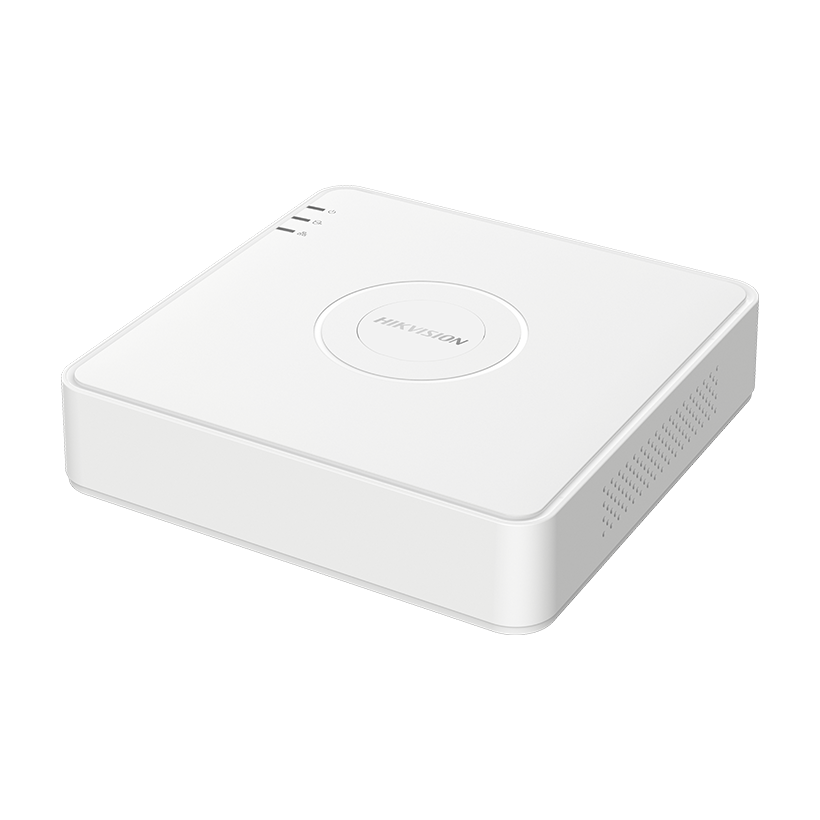

Hikvision iDS-7104HUHI-M1/S 4-ch 5MP Mini 1U H.265 AcuSense DVR
Hikvision iDS-7104HUHI-M1/S 4-ch 5MP Mini 1U H.265 AcuSense DVR

Hikvision iDS-7104HUHI-M1/S 4-ch 5MP Mini 1U H.265 AcuSense DVR

JOD 60.000
WhatsApp Order via WhatsApp

  • Motion Detection 2.0

    Human / Vehicle Analysis

    • Deep learning–based Motion Detection 2.0 enabled by default on all analog channels

    • Accurately classifies human and vehicle targets

    • Significantly reduces false alarms caused by leaves, light changes, and other irrelevant motion

    • Supports quick search by object type or event type

    Perimeter Protection

    • Human / Vehicle analysis

    • Supports up to 4 channels

    Facial Detection

    • Facial detection and capture

    • Face picture detection and face picture search

    Video & Audio

    IP Video Input

    • 2 channels (expandable up to 6 channels)

    Enhanced IP Mode Enabled

    • 4 channels (expandable up to 8 channels)

    • Up to 4 Mbps per channel

    • Maximum resolution: 8 MP

    • Supports H.265+ / H.265 / H.264+ / H.264 IP cameras

    Analog Video Input

    • 4 channels

    • BNC interface (1.0 Vp-p, 75 Ω)

    • Supports coaxitron connection

    Supported Analog Formats

    HDTVI

    • 8 MP (3840 × 2160) @15 fps

    • 8 MP (3840 × 2160) @12 fps

    • 3K (2960 × 1665) @20 fps

    • 5 MP (2560 × 1944) @20 fps

    • 5 MP (2560 × 1944) @12 fps

    • 4 MP (2560 × 1440) @30 / 25 fps

    • 3 MP @18 fps

    • 1080p @30 / 25 fps

    • 720p @30 / 25 fps

    AHD

    • 5 MP (2560 × 1944) @20 / 12 fps

    • 4 MP (2560 × 1440) @30 / 25 fps

    • 1080p @30 / 25 fps

    • 720p @30 / 25 fps

    HDCVI

    • 8 MP (3840 × 2160) @15 / 12 fps

    • 5 MP (2592 × 1944) @20 fps

    • 4 MP (2560 × 1440) @30 / 25 fps

    • 1080p @30 / 25 fps

    • 720p @30 / 25 fps

    CVBS

    • PAL / NTSC

    Video Output

    • HDMI Output

      • 2K (2560 × 1440) @60 Hz

      • 1920 × 1080 @60 Hz

      • 1280 × 1024 @60 Hz

      • 1280 × 720 @60 Hz

    • VGA Output

      • 1920 × 1080 @60 Hz

      • 1280 × 1024 @60 Hz

      • 1280 × 720 @60 Hz

    • Video Output Mode: HDMI and VGA simultaneous output

    Audio

    • Audio Input

      • 1-channel RCA (2.0 Vp-p, 1 kΩ)

      • 4 channels via coaxial cable

    • Audio Output: 1-channel RCA (Linear, 1 kΩ)

    • Two-Way Audio: 1-channel RCA (uses first audio input)

    • Audio Compression: G.711u

    • Audio Bitrate: 64 Kbps

    • Synchronous Playback: 4 channels

    Recording & Encoding

    Video Compression

    • H.265 Pro+ / H.265 Pro / H.265

    • H.264+ / H.264

    Encoding Resolution

    • 8 MP / 5 MP / 3K / 4 MP / 3 MP

    • 1080p / 720p / WD1 / 4CIF / VGA / CIF

    Frame Rate

    Main Stream

    • 8 MP @8 fps (Channel 1 only)

    • 8 MP Lite @15 fps (Channel 2–4 only)

    • 3K @12 fps

    • 5 MP @12 fps

    • 4 MP @15 fps

    • 3 MP @18 fps

    • 1080p / 720p / WD1 / 4CIF / VGA / CIF

      • 25 fps (PAL) / 30 fps (NTSC)

    Sub-Stream

    • WD1 / 4CIF / CIF

      • 25 fps (PAL) / 30 fps (NTSC)

    • Video Bitrate: 32 Kbps – 10 Mbps

    • Dual-Stream: Supported

    • Stream Type: Video or Video & Audio

    Network

    • Total Bandwidth: 96 Mbps

    • Remote Connections: Up to 32

    • Protocols:
      TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

    • Network Interface:
      1 × RJ45 10/100 Mbps self-adaptive Ethernet

    • Wi-Fi:
      Connectable via USB Wi-Fi dongle

    Storage & Interfaces

    • SATA: 1 × SATA interface

    • Maximum HDD Capacity: Up to 10 TB

    • USB: 2 × USB 2.0

    • Alarm I/O: Not supported

    Power & Environment

    • Power Supply: 12 VDC, 1.5 A

    • Power Consumption: ≤ 15 W (without HDD)

    • Operating Temperature: −10 °C to +55 °C (14 °F to 131 °F)

    • Operating Humidity: 10% – 90%

    Physical

    • Dimensions (W × D × H):
      200 × 200 × 48 mm (7.9 × 7.9 × 1.9 in)

    • Weight: ≤ 1.16 kg (without HDD, 2.6 lb)
