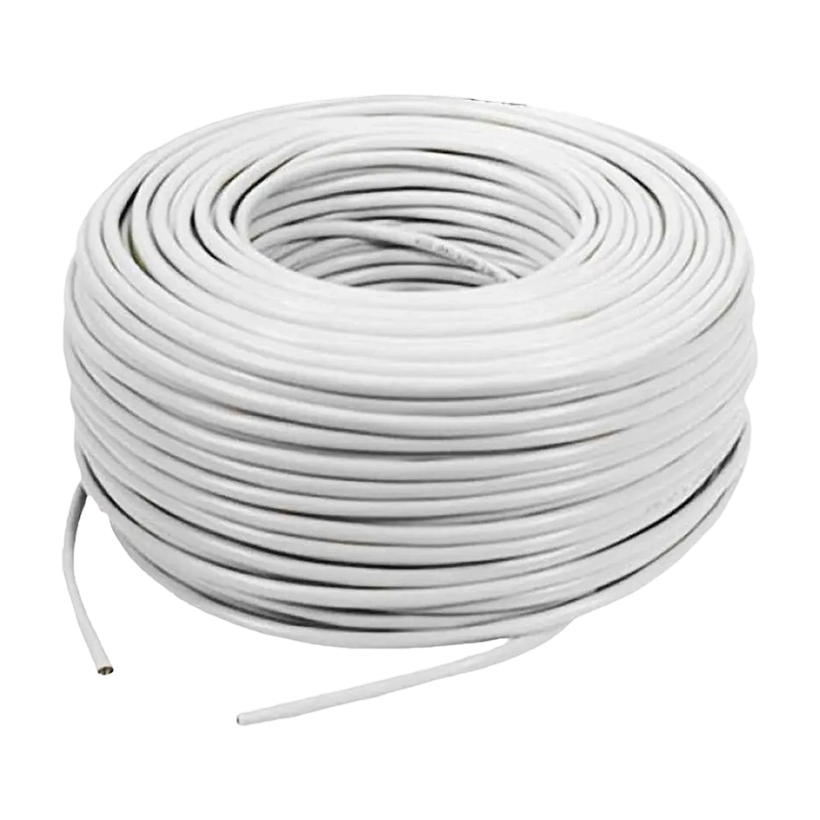

Cable Type: CAT6 UTP (Unshielded Twisted Pair)
-
Length: 305 m (±1.5 m)
-
Conductor Material: CCA (Copper-Clad Aluminum), Copper content 27%
-
Nominal Conductor Diameter: 0.565–0.585 mm
-
Insulation: Solid HDPE, 1.05 ± 0.05 mm diameter
-
Sheath: FR-PVC, 0.50 ± 0.05 mm thickness, White (RAL9003)
-
External Diameter: 6.0 ± 0.3 mm
-

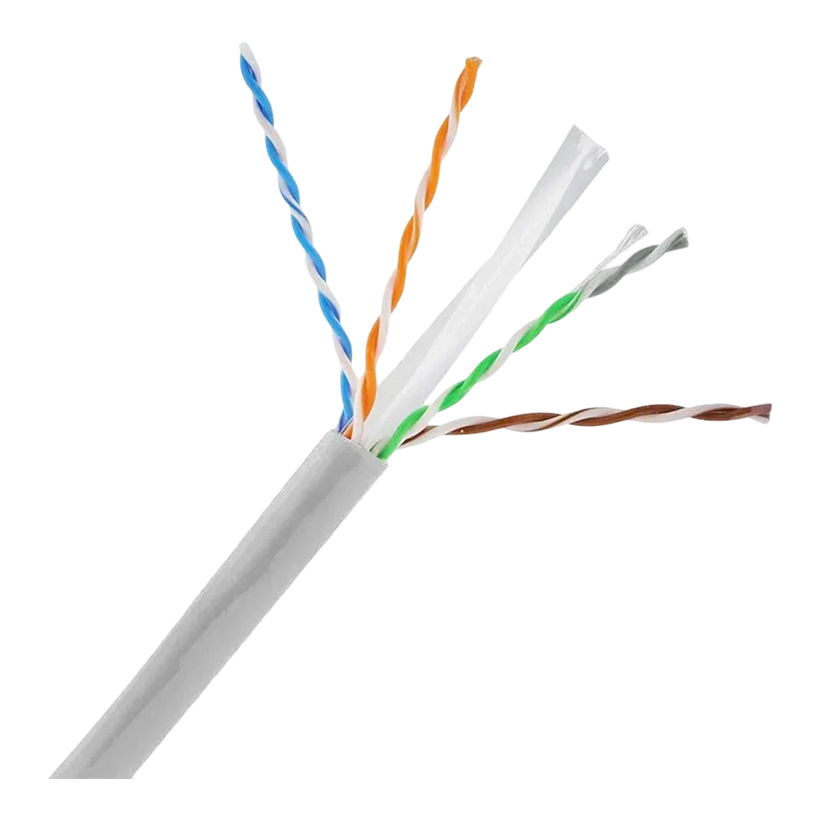

Core Colors:
-
Blue & White / Blue
-
Orange & White / Orange
-
Green & White / Green
-
Brown & White / Brown
-
-

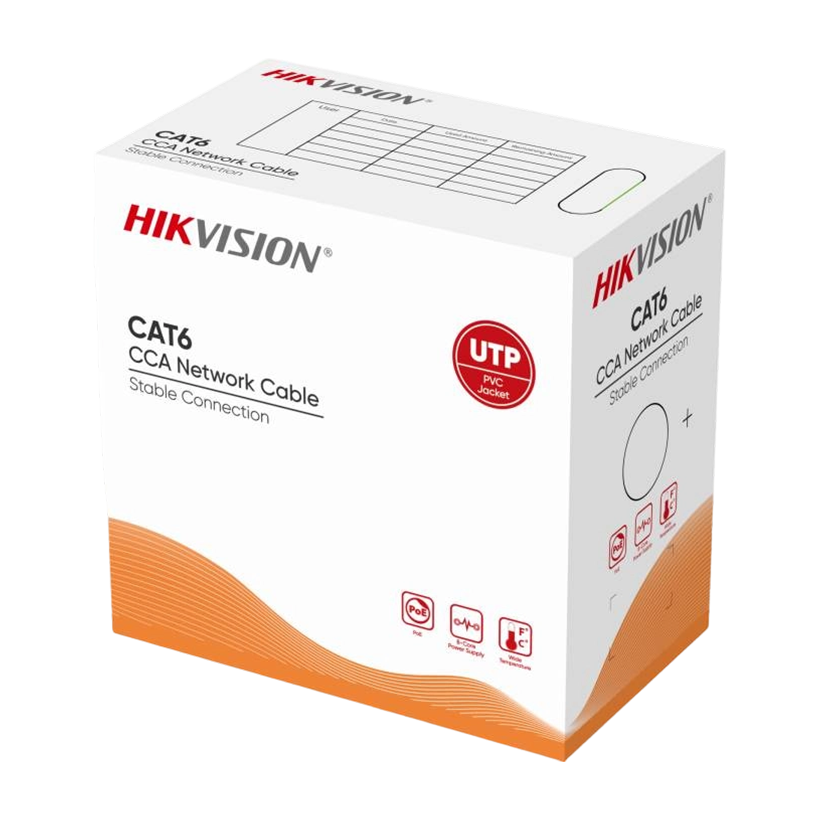

Packing: Carton, 41 × 41 × 24 cm
-
Rip-cord: Yes
-
Drain Wire: No
-
Surface Printing: Black letters, 2.5 ± 0.2 mm, print error ≤ ±0.5%
Electrical Characteristics (20°C)
-
Impedance:
-
1–100 MHz: 100 ± 15 Ω
-
100–250 MHz: 100 ± 25 Ω
-
-
Delay Skew: ≤ 45 ns / 100 m
-
DC Resistance: Max 12 Ω / 100 m
-
DC Conductor Resistance Unbalance: Max 2%
Mechanical & Environmental Properties
-
Sheath Tensile Strength: ≥ 13.5 MPa before aging, ≥ 12.5 MPa after aging
-
Elongation: ≥ 150% before aging, ≥ 125% after aging
-
Aging Test: 100°C × 24 h × 7 days
-
Cold Bend: -20°C × 4 h, bend 8 × Cable O.D., no visible cracks
-
Surface: Clean, flat, satin finish
-
RoHS Compliant: Yes
PoE & Performance Notes
-
Full-length and full-diameter conductor ensures:
-
Long PoE transmission distance
-
Cost-effective alternative to pure copper for general networking
-
