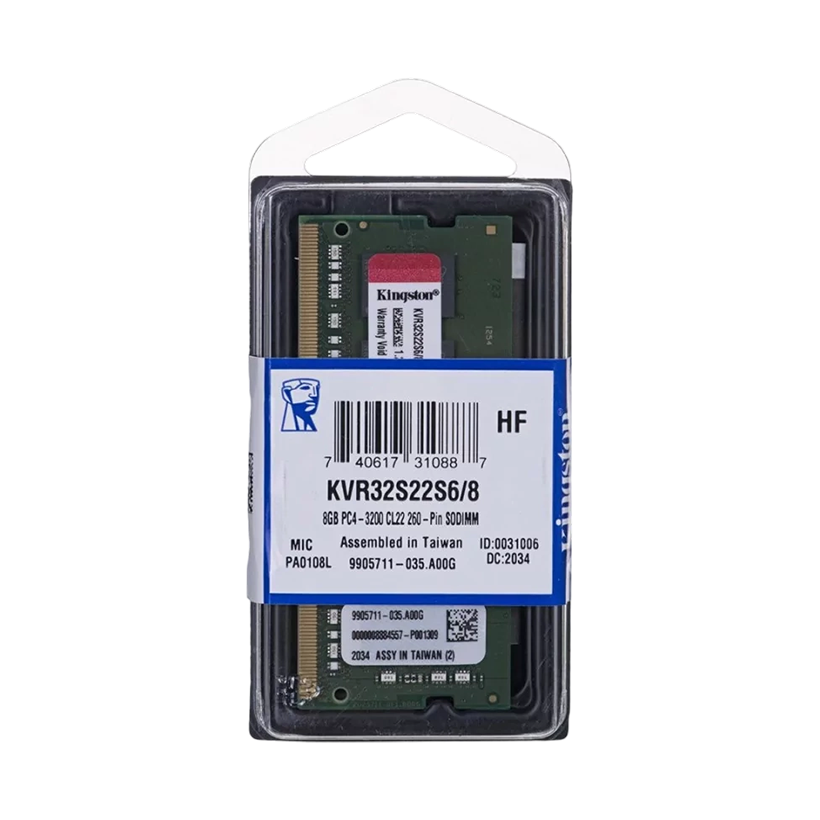

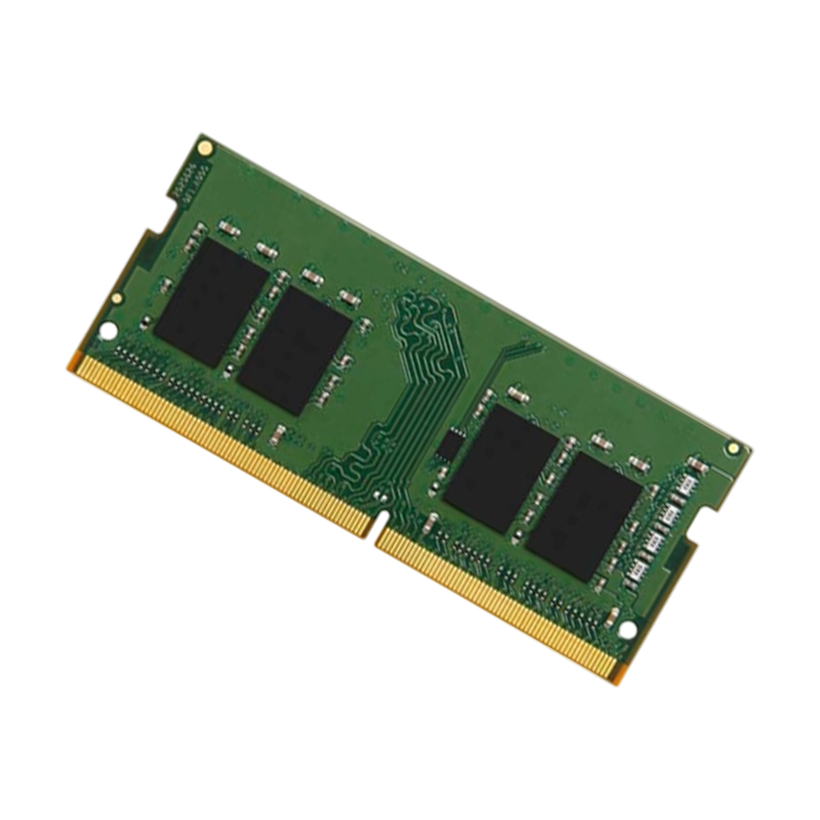

Kingston ValueRAM KVR32S22S6/8 – DDR4 Notebook Memory Module
Description
The Kingston ValueRAM KVR32S22S6/8 is a reliable DDR4 laptop memory module designed for smooth multitasking and stable system performance. Operating at 3200MHz with low power consumption, it is ideal for upgrading notebooks and compact systems.
Specifications
- Product Name: Kingston ValueRAM
- Model: KVR32S22S6/8
- Capacity: 8GB
- Memory Type: DDR4 SDRAM
- Speed: 3200MHz (DDR4-3200)
- CAS Latency: CL22
- Configuration: 1Rx16
- Module Organization: 1G × 64-bit
- Components: Four 1G × 16-bit FBGA chips
- Form Factor: 260-pin SODIMM
- Contact Type: Gold contact fingers
- Voltage: 1.2V
- SPD Timing: 22-22-22 at 1.2V (JEDEC standard)
- Row Cycle Time (tRCmin): 45.75ns
- Refresh Command Time (tRFCmin): 350ns
- Row Active Time (tRASmin): 32ns
- Operating Temperature: 0°C to 85°C
- Storage Temperature: -55°C to 100°C
- PCB Height: 30.00 mm (1.18")
- Power Specifications:
- VDD: 1.2V Typical
- VDDQ: 1.2V Typical
- VPP: 2.5V Typical
- VDDSPD: 2.2V to 3.6V
- UL Rating: 94 V-0
- Usage: Laptops, mini PCs, notebook upgrades
- Design Focus: Stable performance, low power consumption, JEDEC compliance
Features:
8GB DDR4 notebook memory
3200MHz memory speed
CL22 latency rating
260 pin SODIMM module
1.2V low power design
JEDEC compliant memory
Gold plated contacts
Stable multitasking performance
Ideal for laptop upgrades
Reliable Kingston ValueRAM
