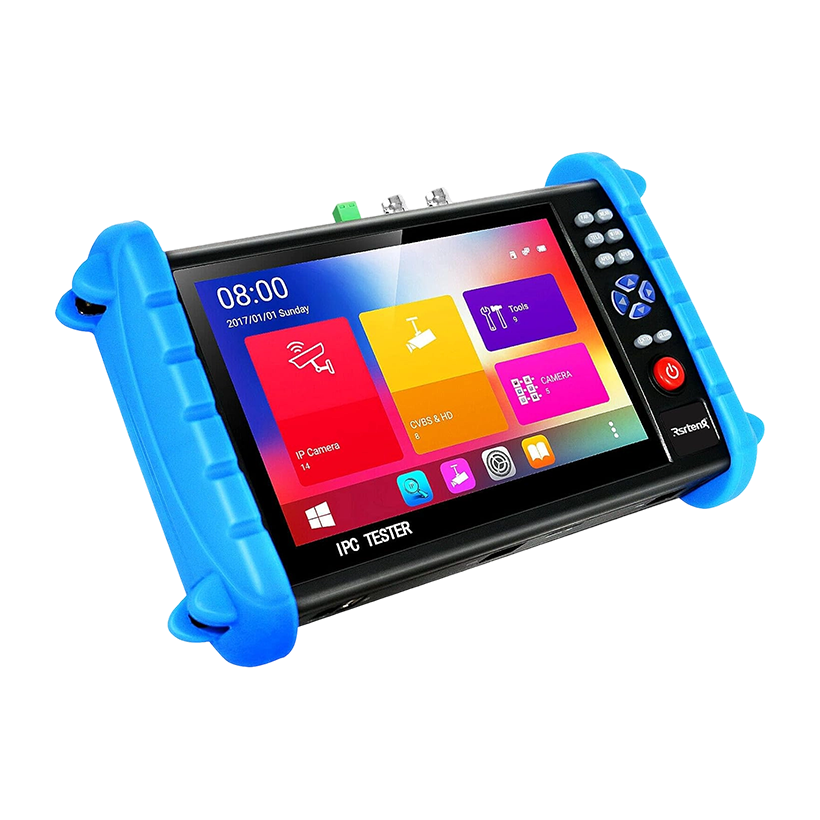

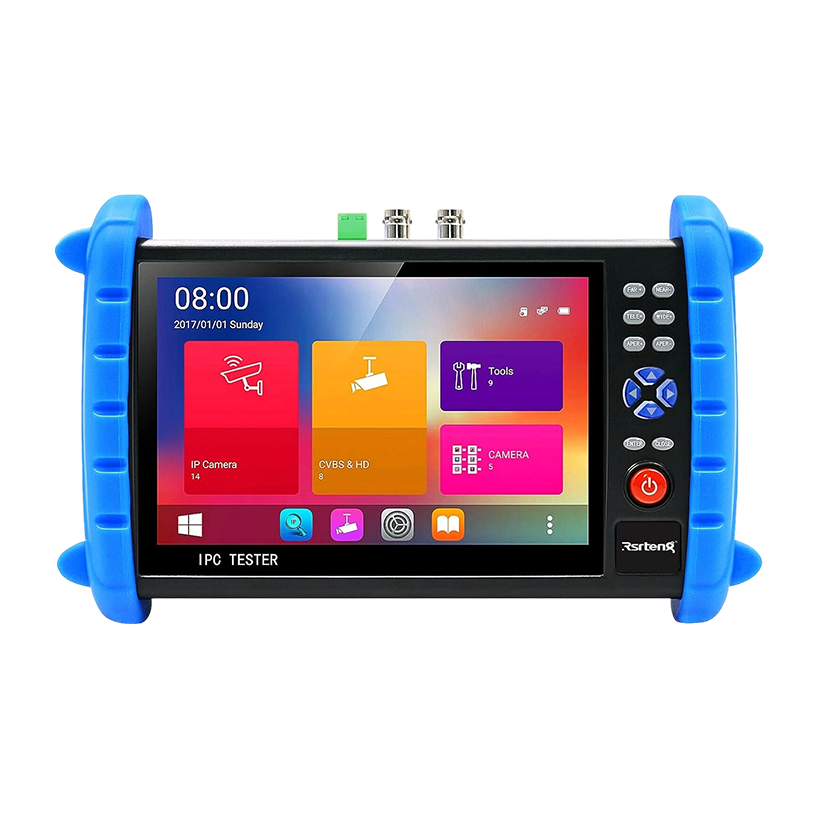

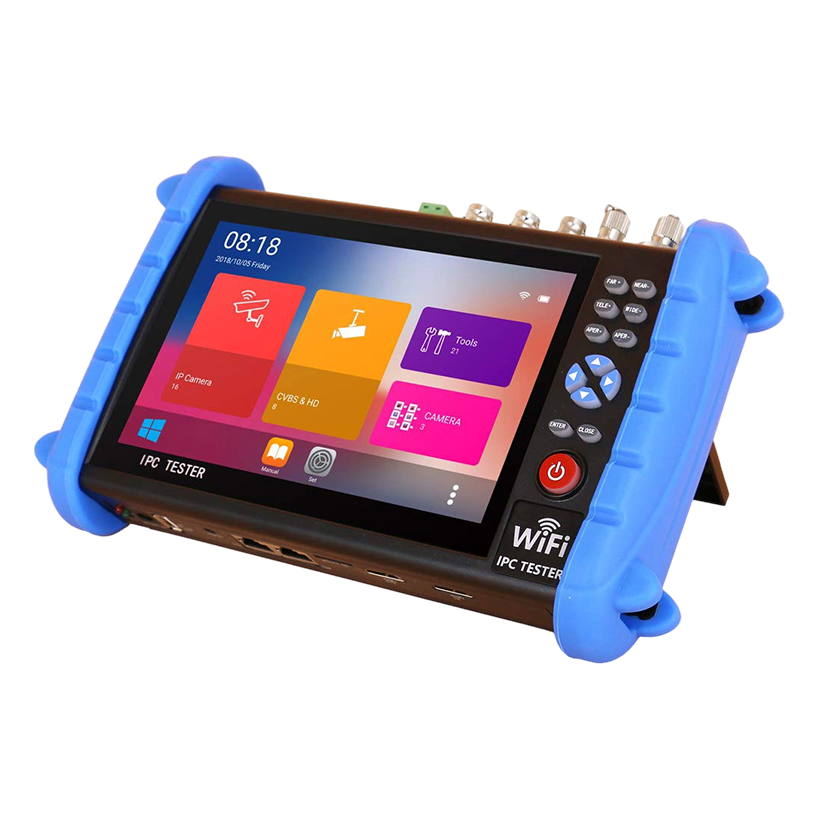

Rsrteng 7" IPS 4K CCTV Camera Tester Monitor Specifications
- Product Type: Professional CCTV & IP Camera Tester Monitor
- Application: IP Camera, Analog Camera, Network, and CCTV Installation & Maintenance
Display
- Screen Size: 7-Inch IPS Touch Screen
- Resolution: 1920 × 1200 Full HD
- Capacitive multi-touch display
- Clear image quality with wide viewing angles
IP Camera Testing
- Supports up to 12MP 4K IP Cameras
- ONVIF compatible for broad camera support
- Real-time video preview and configuration
- Network parameter detection and setup tools
PoE Testing & Power Output
- Supports PoE IEEE 802.3af/at 48V
- Maximum PoE Output Power: 25.5W
- PoE / PSE testing supported
DC Power Output
- DC 24V / 1A
- DC 12V / 3A
- DC 5V / 2A
Analog & HD Camera Testing
Supports up to 8MP (3840 × 2160P):
- TVI Cameras
- AHD Cameras
- CVI Cameras
- SDI Cameras
- CVBS Analog Cameras
Smart Camera Detection
- Automatic HD camera type recognition
- Supports UTC PTZ Control
- OSD Menu Access directly from tester
- Built-in “CVBS HD-ACT” APP for quick identification
Professional CCTV Tools
- Built-in tools for Hikvision cameras
- Built-in tools for Dahua cameras
- Batch camera configuration support
- ONVIF testing tools included
- Compatible with most mainstream camera brands
Network Features
- Ethernet Port: 10/100/1000 Mbps
- Wi-Fi Connectivity Supported
- RJ45 TDR Cable Testing
- UTP Cable Testing
- Network diagnostics and troubleshooting tools

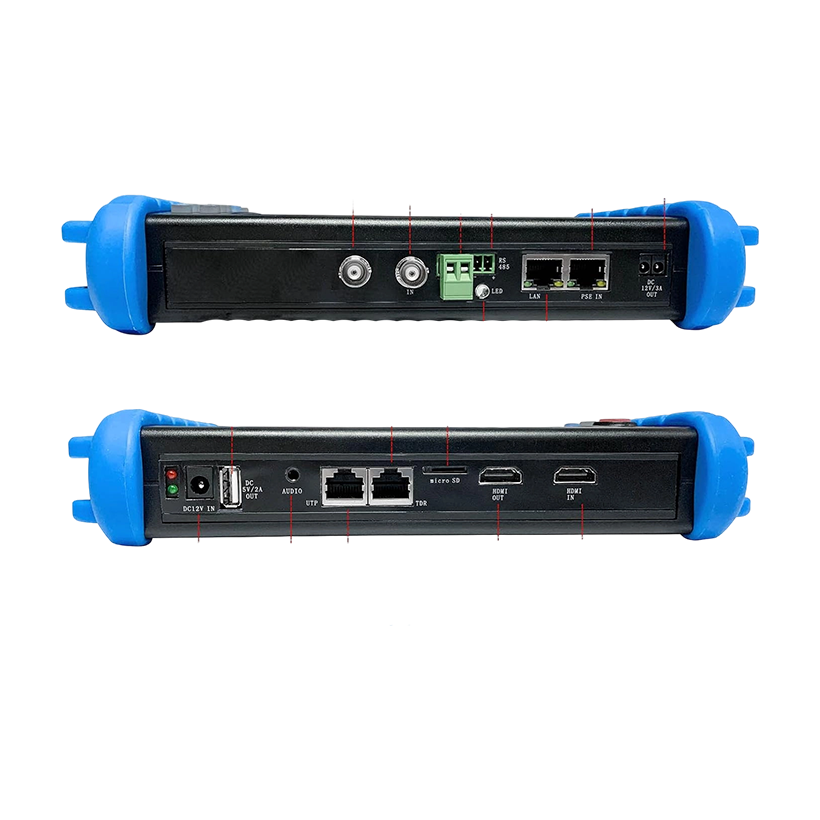

Interfaces & Connectivity
- RS485 Support
- HDMI Input / Output
- Audio Input / Output
- RJ45 LAN Port
- Wi-Fi Wireless Connectivity
Additional Functions
- LED Flashlight / Lamp
- Color Bar Test
- Camera image testing and diagnostics
- Android operating system
- Supports third-party APP installation
Battery
- Battery Capacity: 7.4V / 7800mAh Rechargeable Battery
- Long working time for field installations
Dimensions & Weight
- Dimensions: 9.84 × 6.1 × 1.77 inches
- Net Weight: 0.95kg (2.09 lbs)
Ideal For
- CCTV installers
- IP camera technicians
- Security system maintenance
- Network troubleshooting
- Professional surveillance installations
