GameMax T20 BK – Compact Premium M-ATX Gaming Case with 3-Side Tempered Glass & ARGB Stack-Effect Airflow Design
Description
The GameMax T20 BK is a compact premium M-ATX/ITX gaming chassis built for high-performance compact systems. It features a unique 90° rotated motherboard layout, triple tempered glass panels, and ARGB cooling support, making it ideal for showcase builds with strong airflow and modern hardware compatibility.
Specifications
Cooling & Airflow
• 2× pre-installed ARGB PWM fans

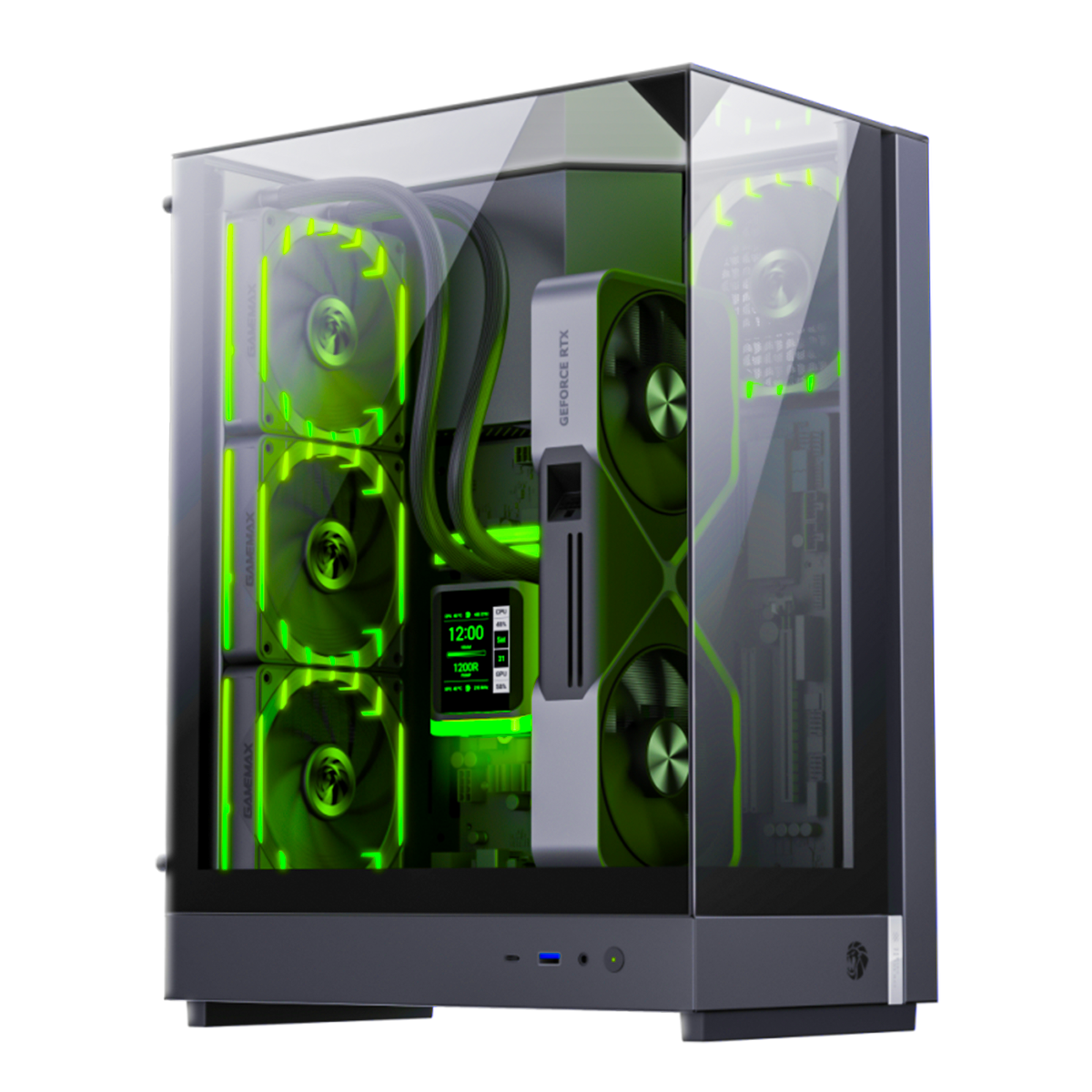

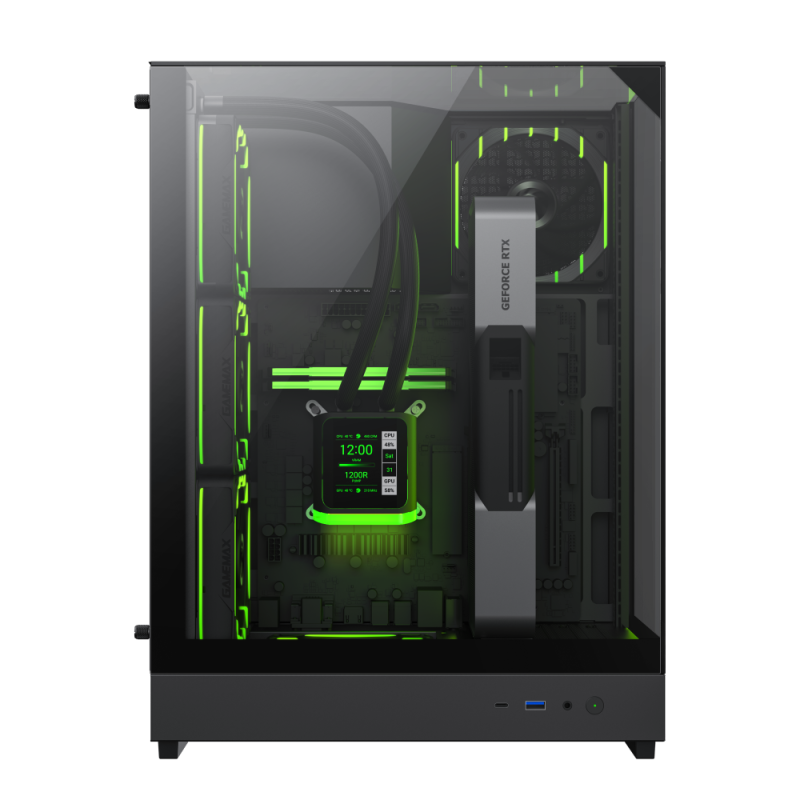

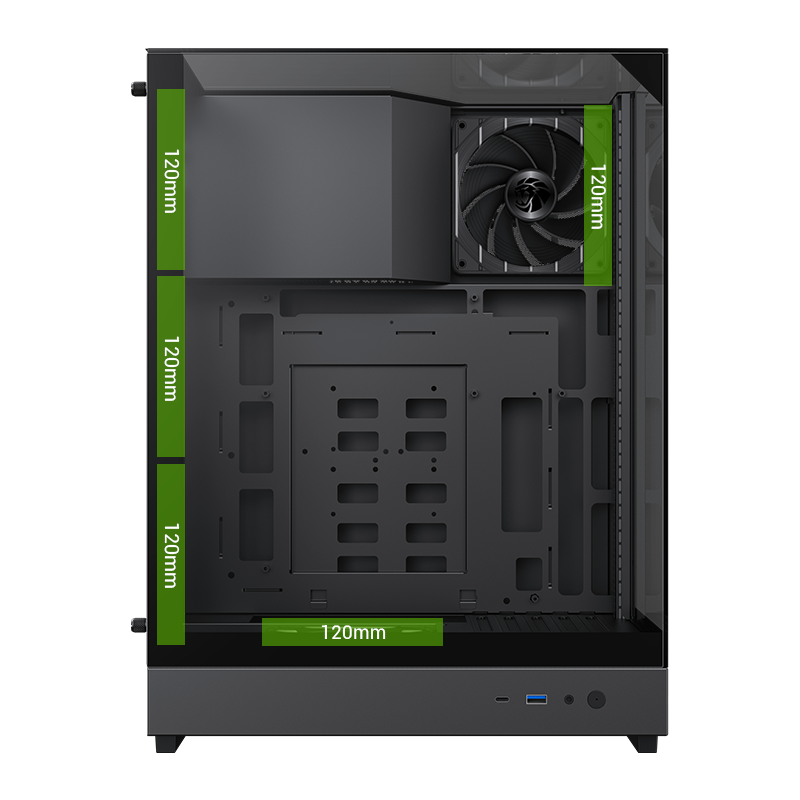

• Supports up to 360mm liquid cooling radiator

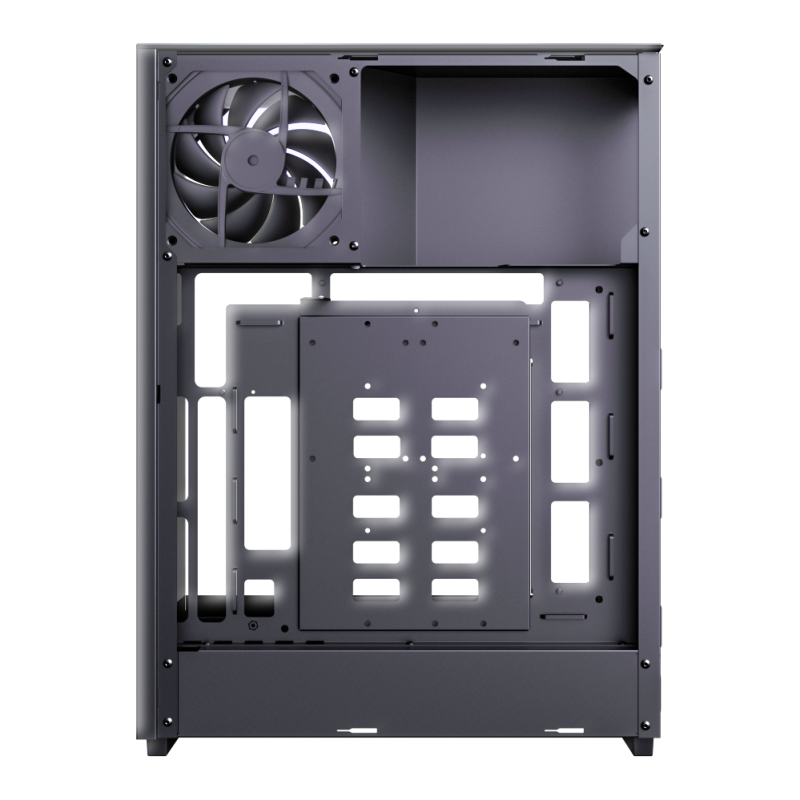

• 90° rotated motherboard layout for stack-effect airflow
• Optimized vertical airflow design
• Magnetic dust filter for easy maintenance
Design & Visual Features

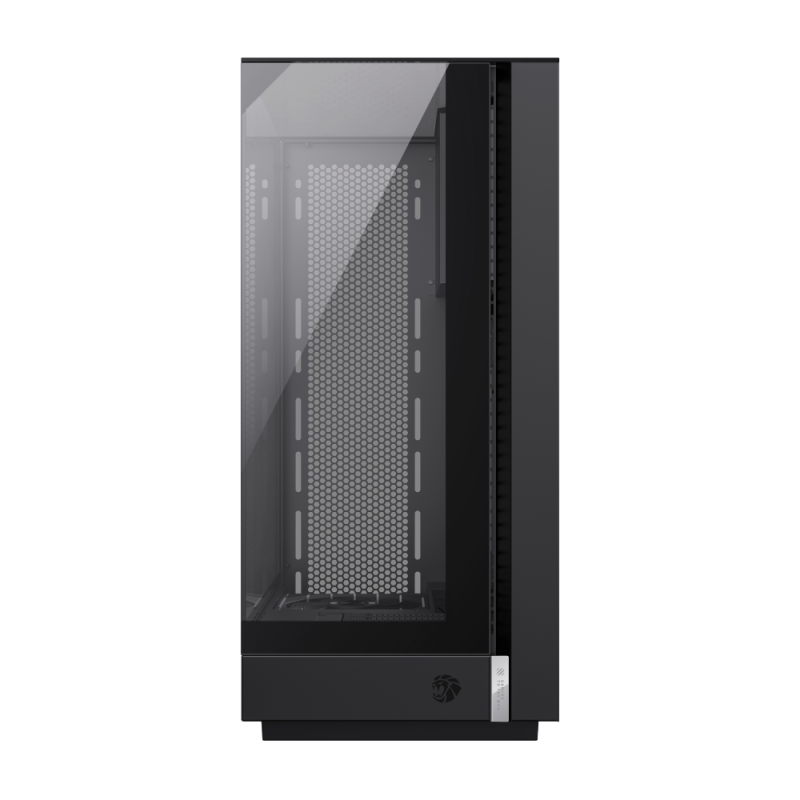

• 3-side tempered glass panels (front, top, left)
• Premium SPCC 1.0mm steel chassis
• Compact showcase design for RGB builds
• Vertical GPU support (NV50-series compatible)
Hardware Compatibility
• Supports M-ATX and ITX motherboards

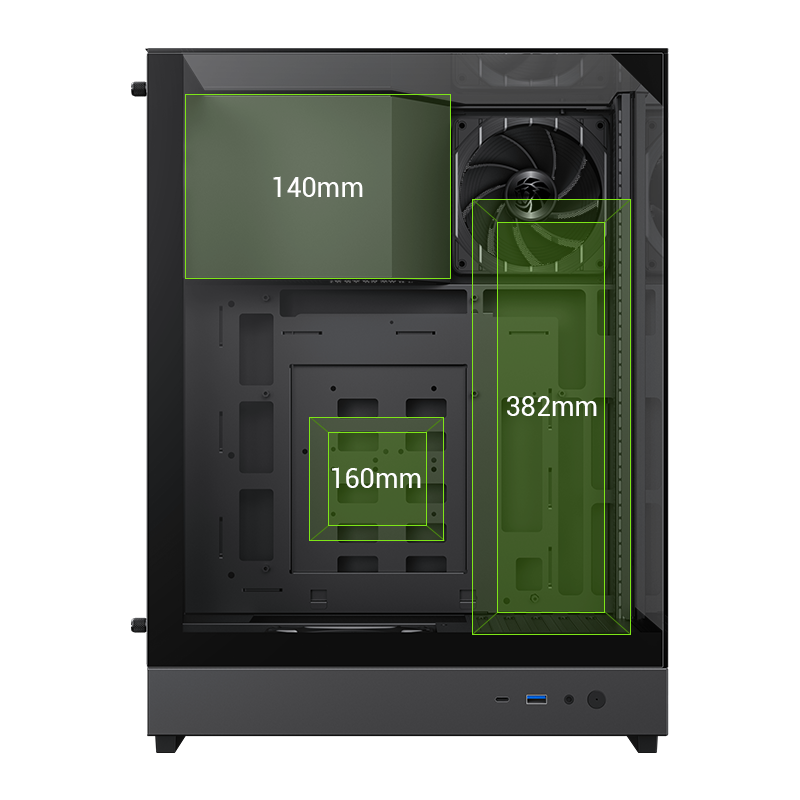

• GPU clearance up to 382mm
• CPU cooler height up to 160mm
• PSU support up to 140mm (SFX-L recommended)
Storage & Expansion

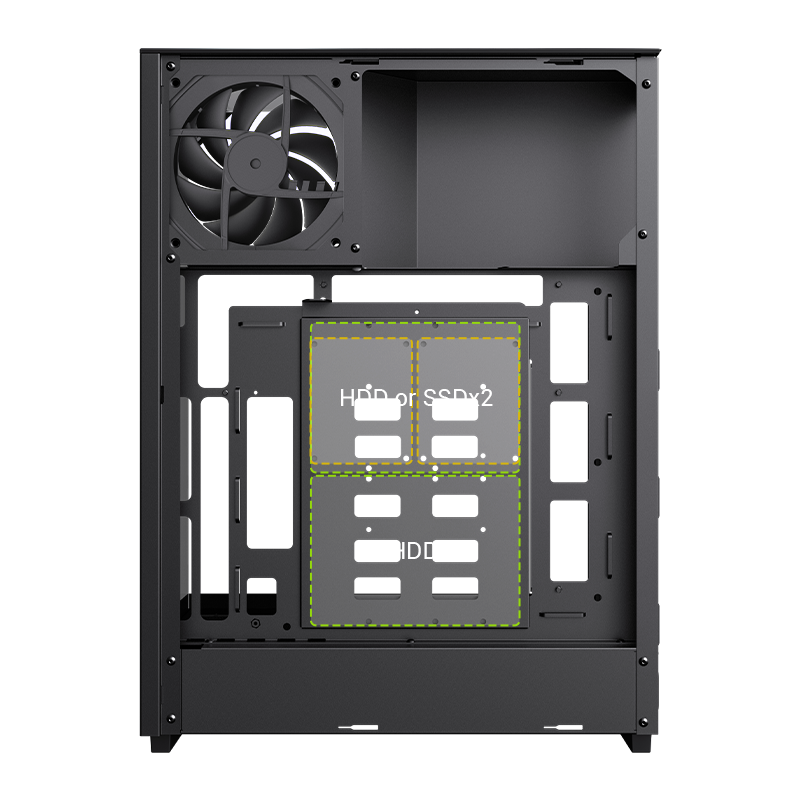

• 1–2× 3.5" HDD support (configuration dependent)
• 2× 2.5" SSD mounting options
• Flexible internal layout for compact builds
Dimensions & Build
• Dimensions: 340 × 215 × 462 mm
• Net weight: ~5.7 kg
• 27mm cable management clearance
• Magnetic dust screen on side panel
Connectivity & I/O Ports
• 1× USB 3.0 port
• 1× USB Type-C (Gen2)
• Combo audio jack
• Power & reset buttons
Use Case
• High-end compact gaming builds
• RGB showcase systems
• Small-form-factor performance PCs
• Liquid-cooled custom builds
Features:
M-ATX / Mini-ITX Support
2 x Pre-Installed ARGB Fans
360mm Radiator Support
382mm GPU Clearance
160mm CPU Cooler Support
Triple Tempered Glass
90° Rotated Motherboard
Vertical GPU Support
USB Type-C Gen2 Port
USB 3.0 Port
Magnetic Dust Filter
27mm Cable Management
1.0mm SPCC Steel Chassis
SFX-L PSU Support
Compact Gaming Design
