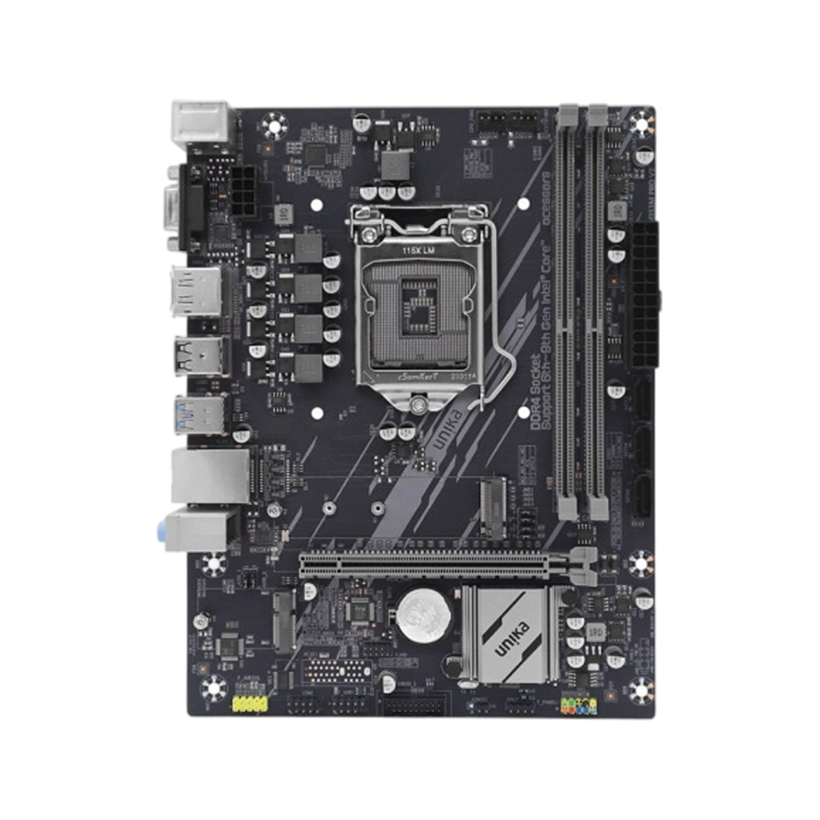

UNIKA UN-H610M 666 DDR4 SNIPER is a micro ATX motherboard that supports 12th, 13th, and 14th Gen Intel Core processors and features two DDR4 memory slots with support for up to 64GB of RAM. It is primarily available from online and local retailers in regions like Southeast Asia.
Key Specifications
- CPU Support: Supports 14th, 13th, and 12th Gen Intel Core Processors, Pentium Gold, and Celeron processors with an LGA 1700 socket.
- Chipset: Intel H610.
- Form Factor: Micro ATX (mATX).
- Memory: Two DDR4 memory slots supporting dual-channel, non-ECC, un-buffered memory at speeds up to 3200 MHz (OC). The maximum capacity is 64 GB.
- Expansion Slots:
- 1 x PCIe 4.0 x16 graphics card slot
- 1 x PCIe 3.0 x1 slot
- Storage:
- 1 x M.2 slot (Key M) supporting PCIe 3.0 x4 mode for NVMe SSDs
- 3 or 4 x SATA 6Gb/s ports (number varies by source)
- Rear I/O Ports:
- USB ports: 4x USB 3.2 Gen 1 5Gbps ports, 6x USB 2.0 ports (total via rear and front panel headers).
- Video ports: 1x HDMI, 1x DisplayPort, 1x VGA.
- LAN Port: 1 x Intel I219V 1Gbps LAN controller.
- Audio: Realtek ALC892 / ALC897 Codec 7.1-Channel High Definition Audio.
