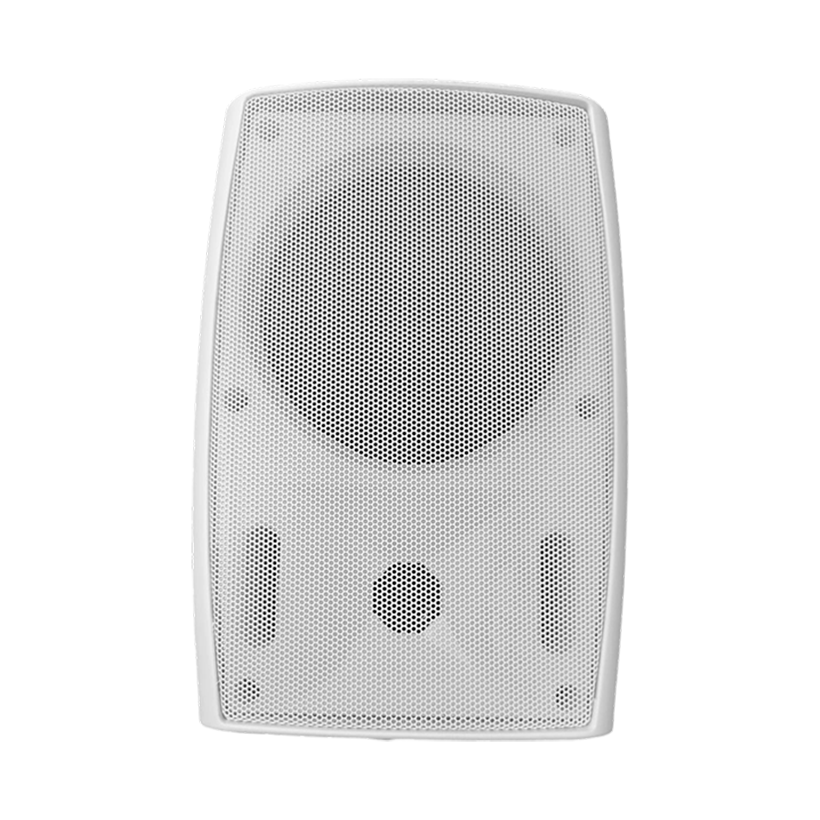

Wall Speaker Bass 5.25 30W / 70-100V
This is a passive wall speaker designed for:
-
Mosques
-
Schools & collegaes
-
Offices
-
Shopping malls
-
Hospitals
-
Factories
-
Public halls & corridors
Because it supports 70–100V line voltage, it’s meant for long cable runs and multiple speakers connected to one amplifier.
2. Physical Design
-

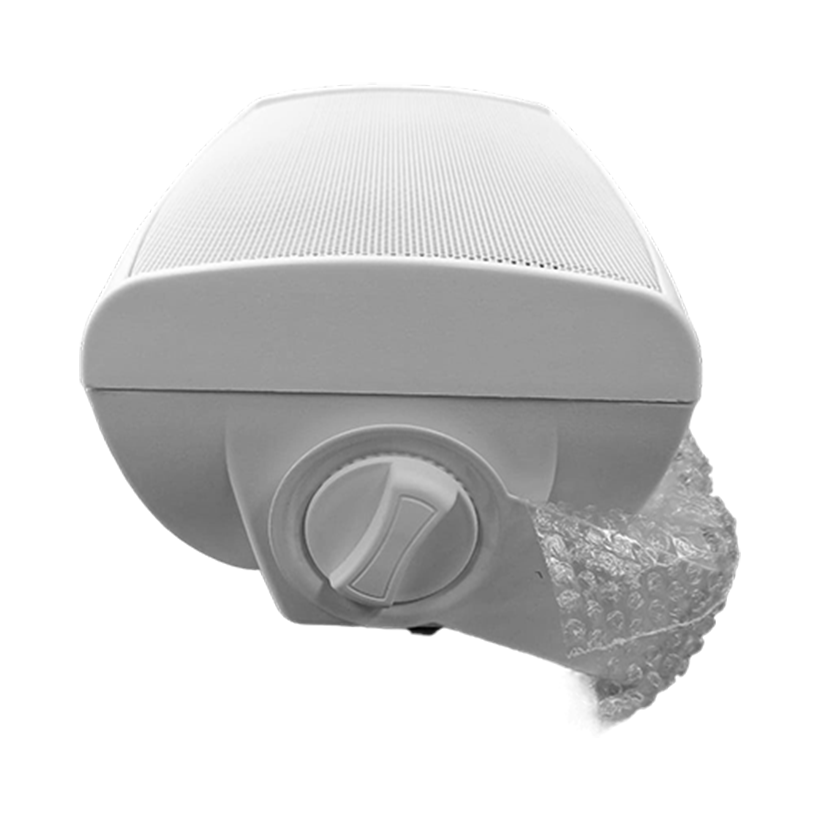

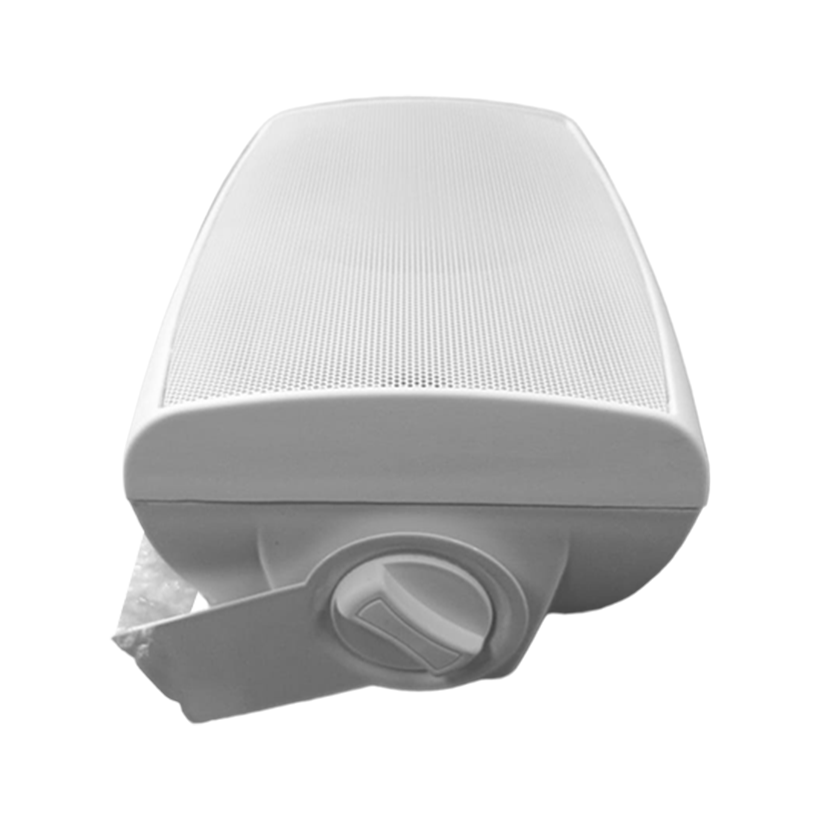

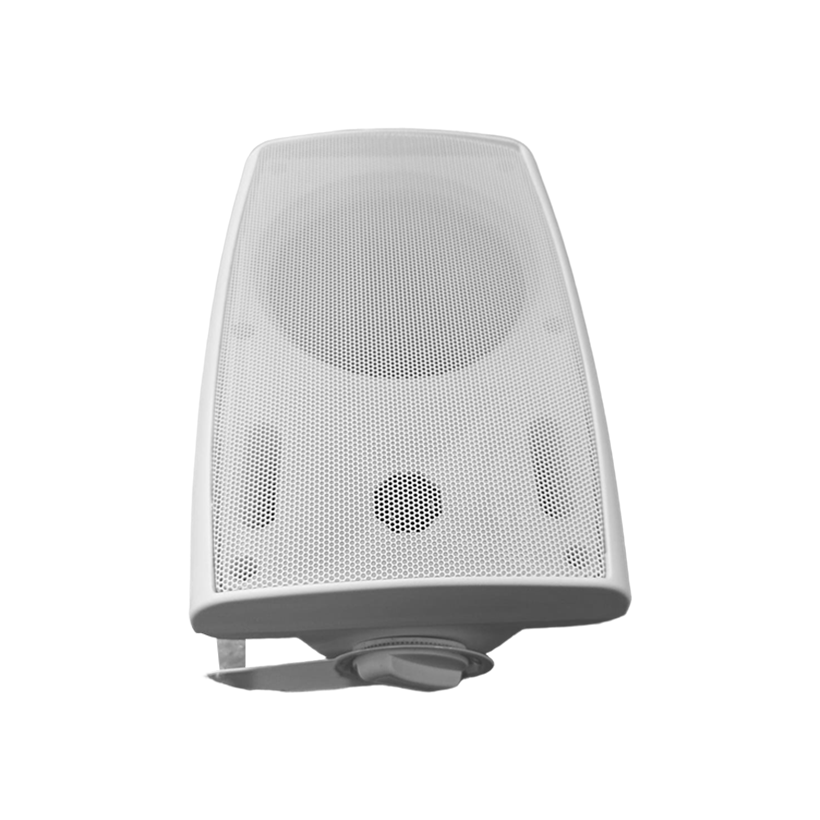

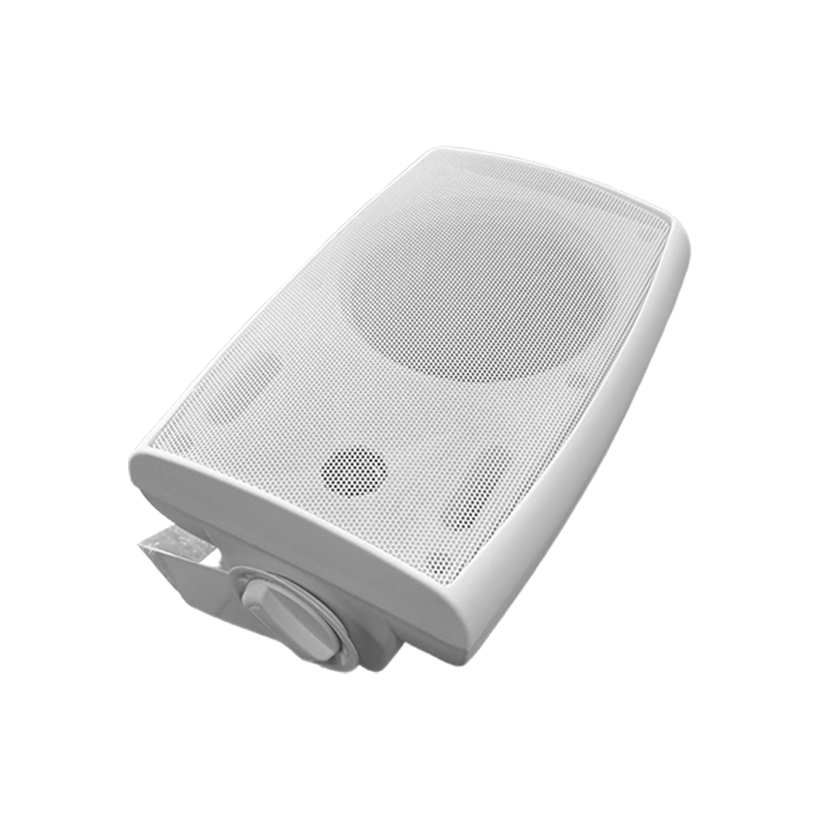

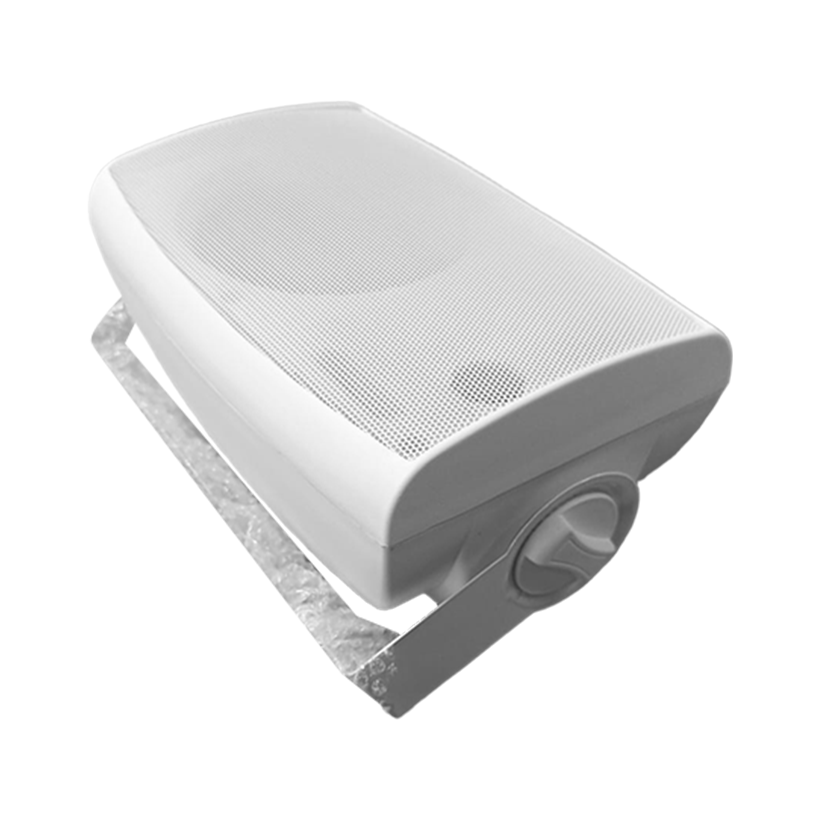

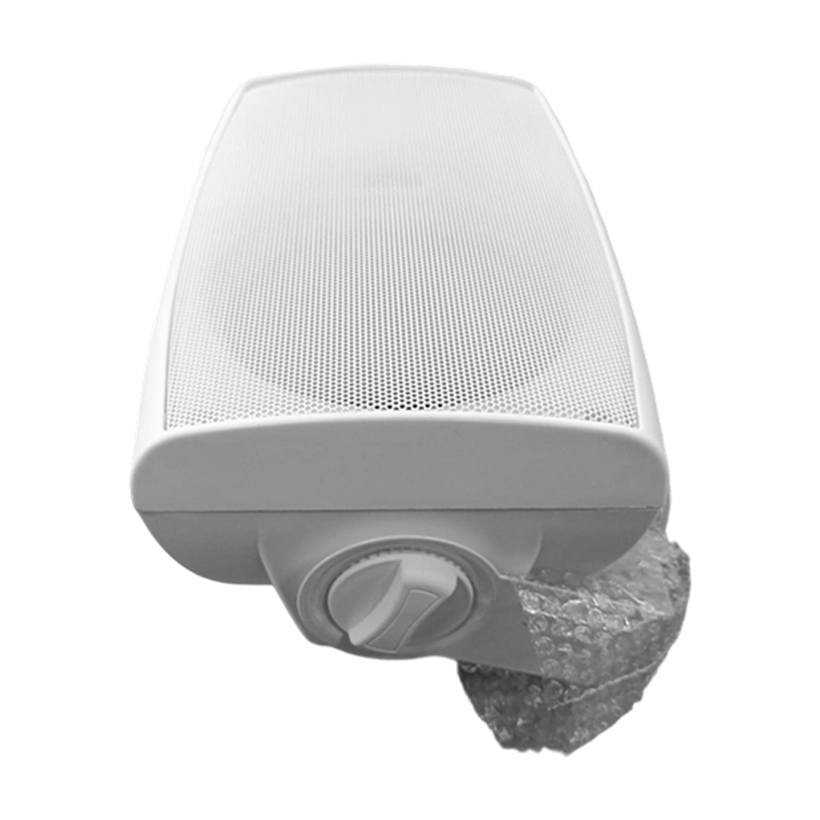

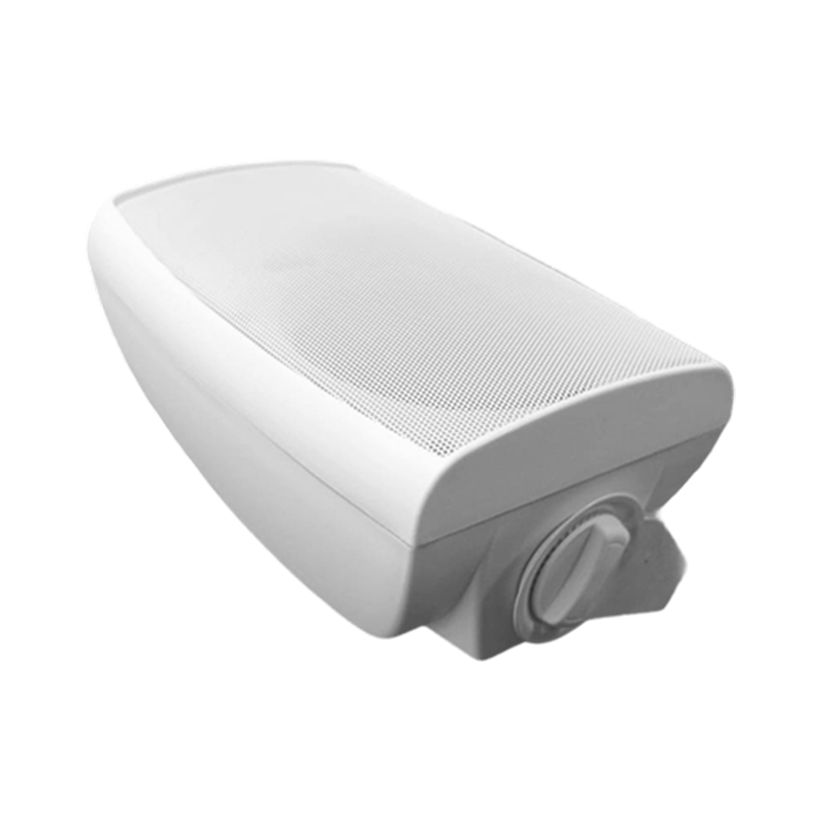

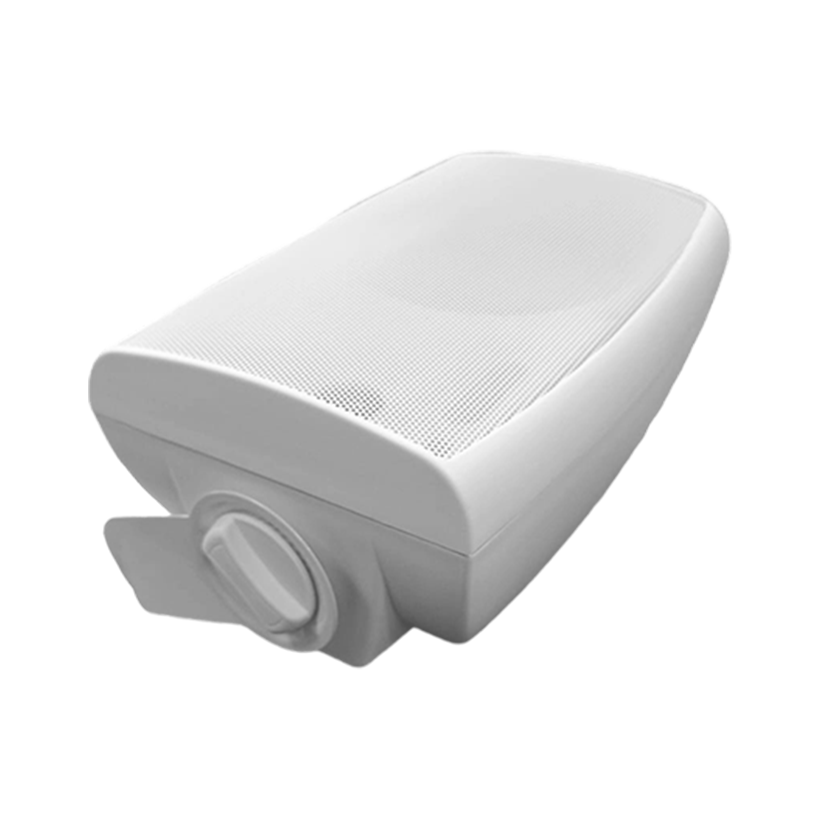

Wall-mount cabinet speaker
-
Comes with a metal mounting bracket (visible on the black speaker image)
-
Rectangular enclosure with a curved front grille
-
Available in two colors:
-
✅ White
-
✅ Black
-
This helps match different interiors (white for clean walls, black for darker or industrial setups).
3. Speaker Components
Driver Configuration
-
5.25" Bass Speaker (Woofer)
-
Handles low and mid frequencies
-
Provides voice clarity and light bass (not deep sub-bass)
-
-
1" Tweeter Driver
-
Handles high frequencies
-
Improves speech intelligibility and music brightness
-
This is a 2-way speaker system, which is better than single-driver speakers for clarity.
4. Technical Specifications (Explained Simply)
Frequency Response: 80Hz – 20,000Hz
-
Covers most human hearing range
-
Optimized for speech + background music
-
Not meant for heavy bass or DJ use
RMS Power: 30W
-
Continuous power handling
-
Suitable for clear sound at moderate volume
-
Designed for long-time operation without overheating
Impedance: 8 Ohms
-
Standard speaker impedance
-
Can work with regular amplifiers if not using 70V mode
Line Voltage: 70–100V
-
Key feature for commercial installations
-
Allows:
-
Many speakers on one amplifier
-
Long cable distances
-
Less signal loss
-
-
Very common in PA systems
Sensitivity (SPL): 90dB (1W/1M)
-
Means the speaker is fairly loud and efficient
-
Needs less power to produce good volume
-
Ideal for announcements and ambient music
Dimensions: 165 × 145 × 250 mm
-
Compact size
-
Easy wall installation
-
Doesn’t take much space or look bulky
