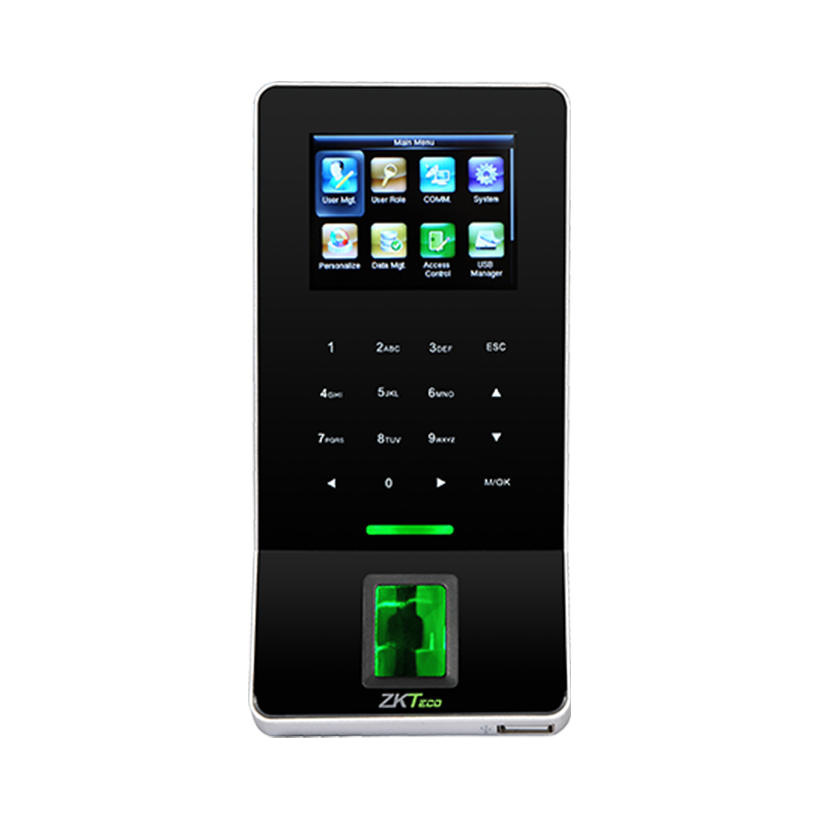

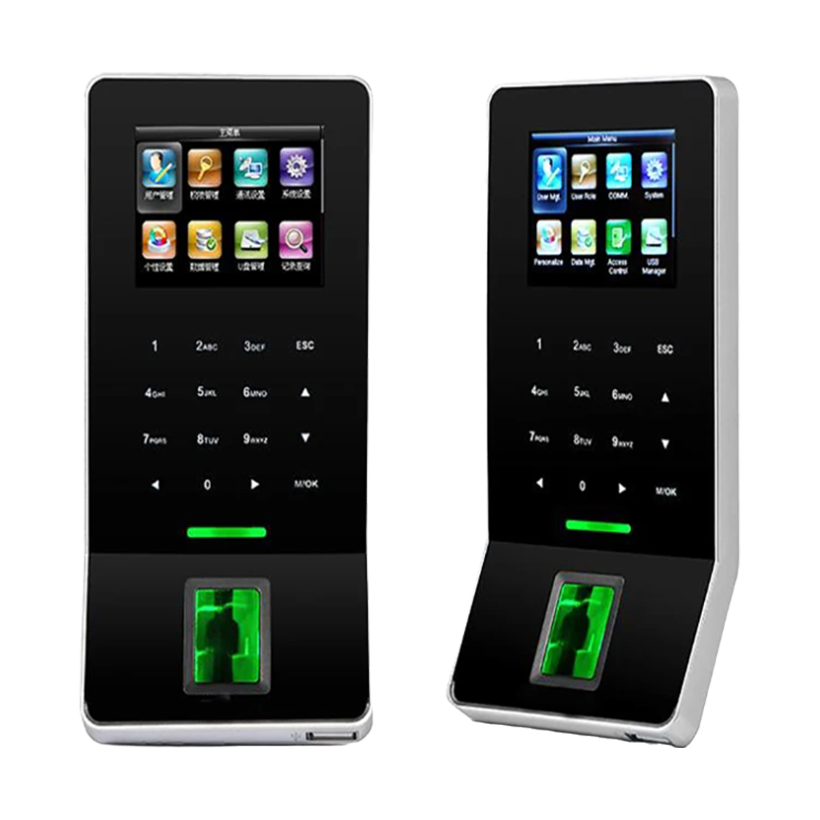

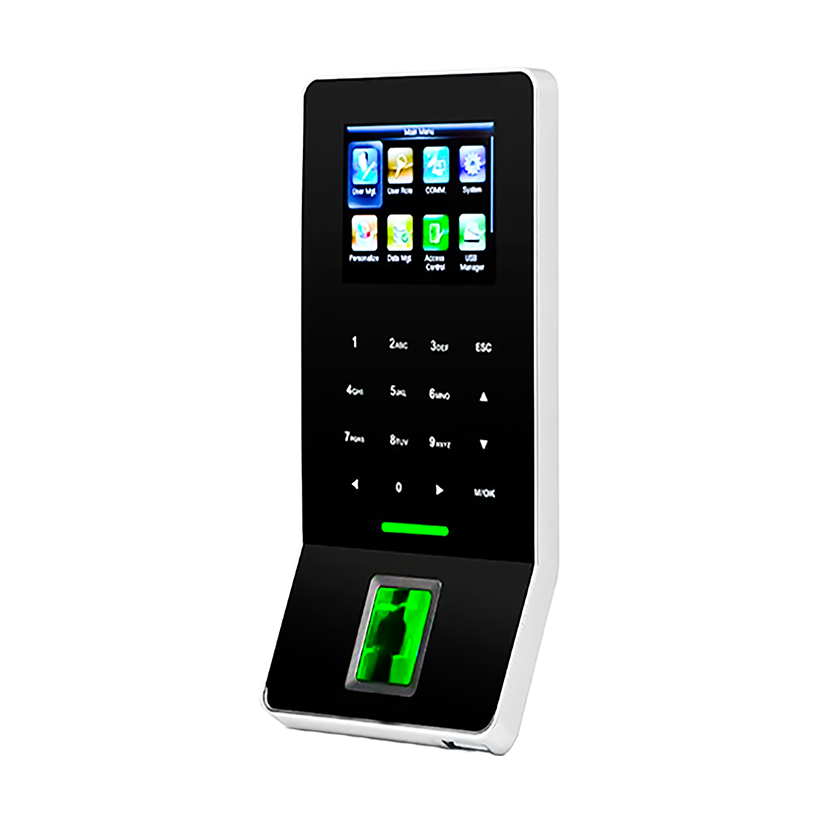

ZKTeco F22 – Ultra-Thin Fingerprint Time Attendance & Access Control
Specifications
- Brand: ZKTeco
- Model: F22
- Type: Ultra-thin biometric terminal for time attendance and access control
- Function: Delivers high-precision fingerprint recognition for secure access and attendance tracking, with Wi-Fi connectivity and advanced algorithms for reliable performance in offices, companies, schools, and secure facilities.
Key Features
- Design: Ultra-thin modern design
- Fingerprint Matching: High-speed fingerprint matching with infrared detection sensor
- User Interface: Touch keypad for enhanced user experience
- Modes: Supports standalone mode or integration with third-party access control panels (Wiegand)
- Communication Options: TCP/IP, Wi-Fi, USB, RS232*, RS485*
- Use Cases: Suitable for offices, companies, schools, and secure facilities
Technical Specifications
- Display: 2.4-inch TFT LCD Color Screen
- Capacity:
- Fingerprint Capacity: 3,000 (optional)
- Card Capacity: 5,000 (ID or Mifare – optional)
- Transaction Log Capacity: 30,000
- Fingerprint Sensor: Z-ID Sensor; Algorithm: ZKFinger V10.0
- Communication: RS232*, RS485*, TCP/IP, USB-Host, Wi-Fi
- Access Control Interface: 3rd-party electric lock, Door sensor, Exit button, Alarm output, Wiegand Support
- Input & Output: Auxiliary Input (1 input for linkage function)
- Functions: DST (Daylight Saving Time), Automatic Status Switch (optional), Record Query, T9 Input, 14-digit User ID (optional), Anti-Passback, Scheduled Bell, Printer Support (optional), ADMS (ZKTeco Cloud Management)
- Power: 12V DC, 3A
- Environment:
- Operating Temperature: 0°C – 45°C
- Operating Humidity: 20% – 80%
