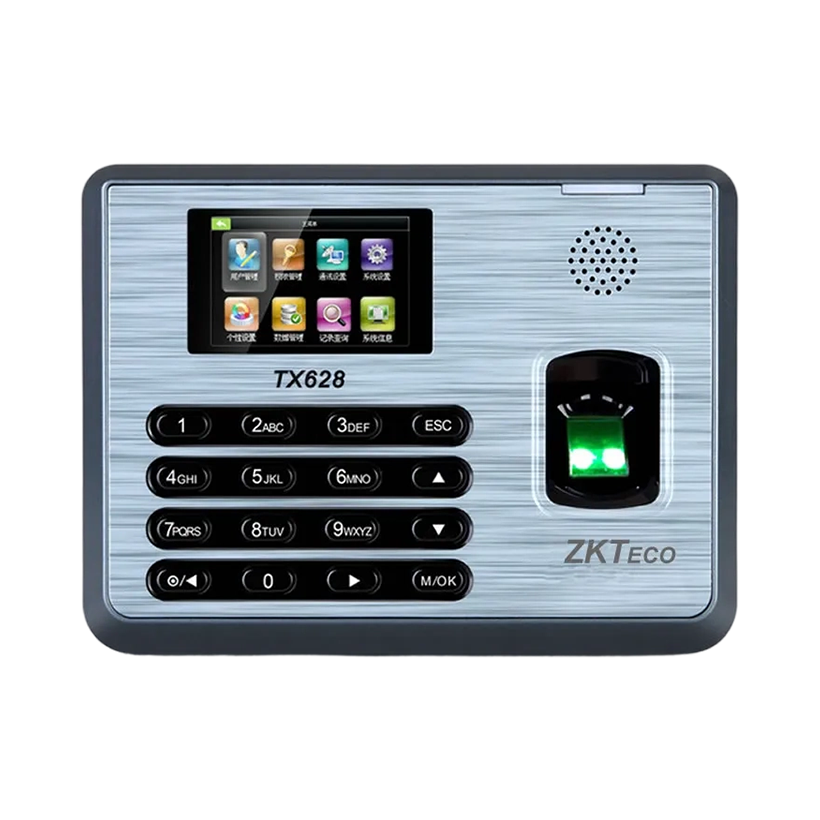

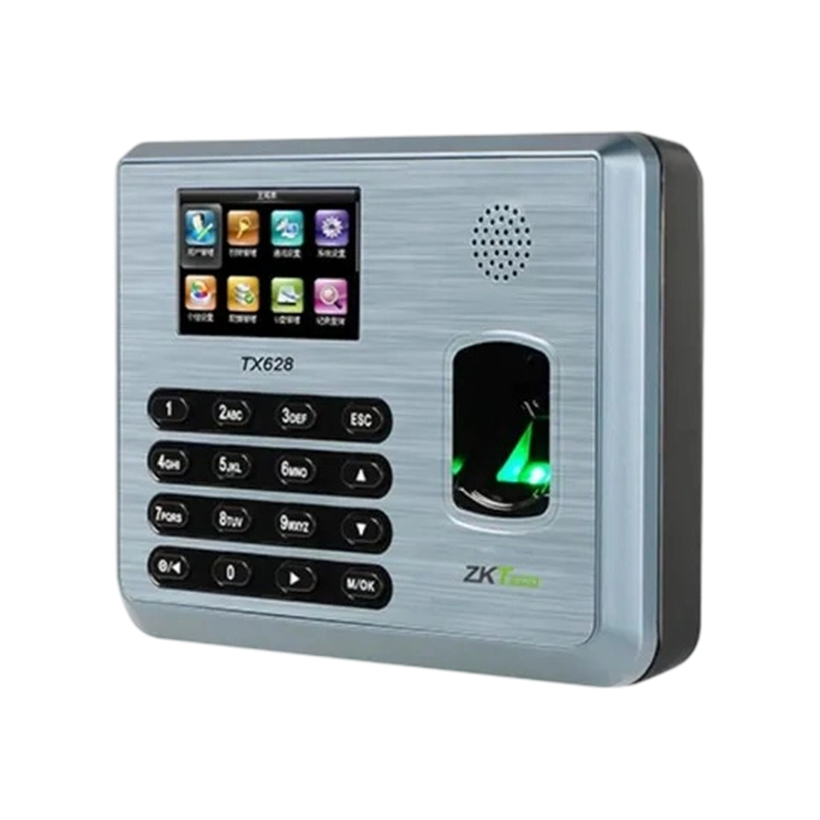

ZKTeco TX628 – Fingerprint Time & Attendance System
Specifications
- Brand: ZKTeco
- Model: TX628
- Type: Biometric time attendance terminal
- Function: Versatile and reliable for small to large organizations, with fast fingerprint recognition, multiple communication interfaces, and compatibility with free ZKTeco software for accurate attendance tracking and data management.
Technical Specifications
- Capacity:
- Fingerprint Capacity: 3,200 (1:N)
- Card Capacity: 10,000 (Optional ID/Mifare)
- Record Capacity: 80,000 logs
- Display: 3-inch Screen
- Communication:
- TCP/IP
- RS232 / RS485
- USB Host & Client
- Standard Functions:
- Web Server
- Short Message
- Automatic Status Switch
- Self-Service Query
- Work Code
- T9 Input
- 9-Digit User ID
- Daylight Saving Time (DST)
- Scheduled Bell
- Optional Functions:
- ID Card
- Mifare Card
- External Printer
- Software Compatibility:
- ZKTime 5.0 (Free)
- ZKTime.Net 2.0
- Performance:
- Verification Speed: ≤ 0.5 sec
- Power & Environment:
- Power Supply: DC 5V 2A
- Operating Temperature: 0°C – 45°C
- Operating Humidity: 20% – 80%
- Physical Specifications:
- Dimensions: 180 × 135 × 37 mm (Length × Width × Thickness)
- Net Weight: 0.70 kg
