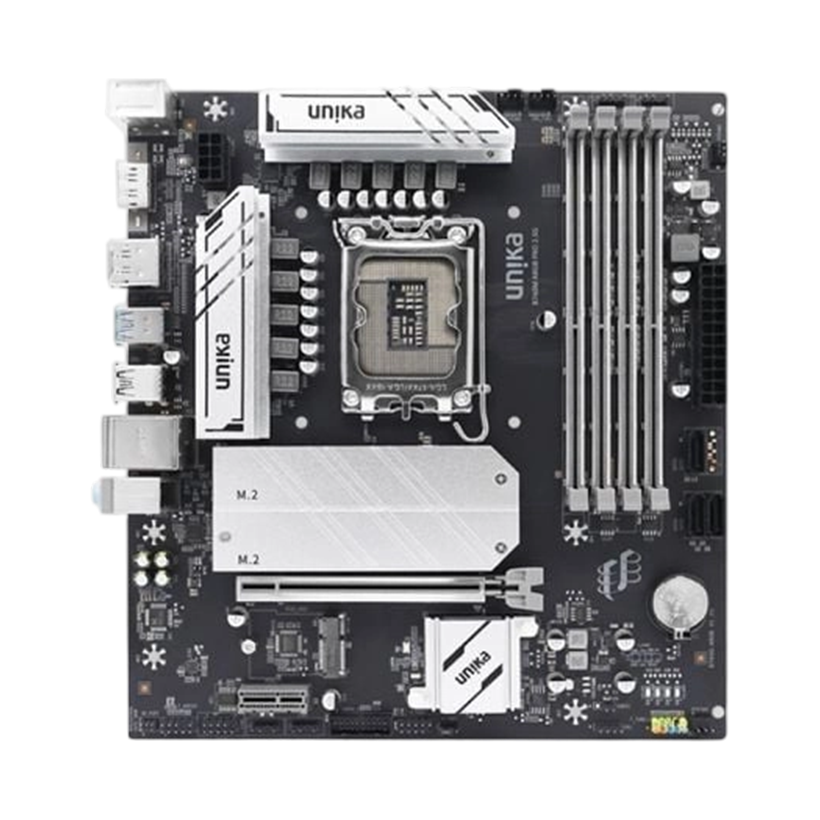

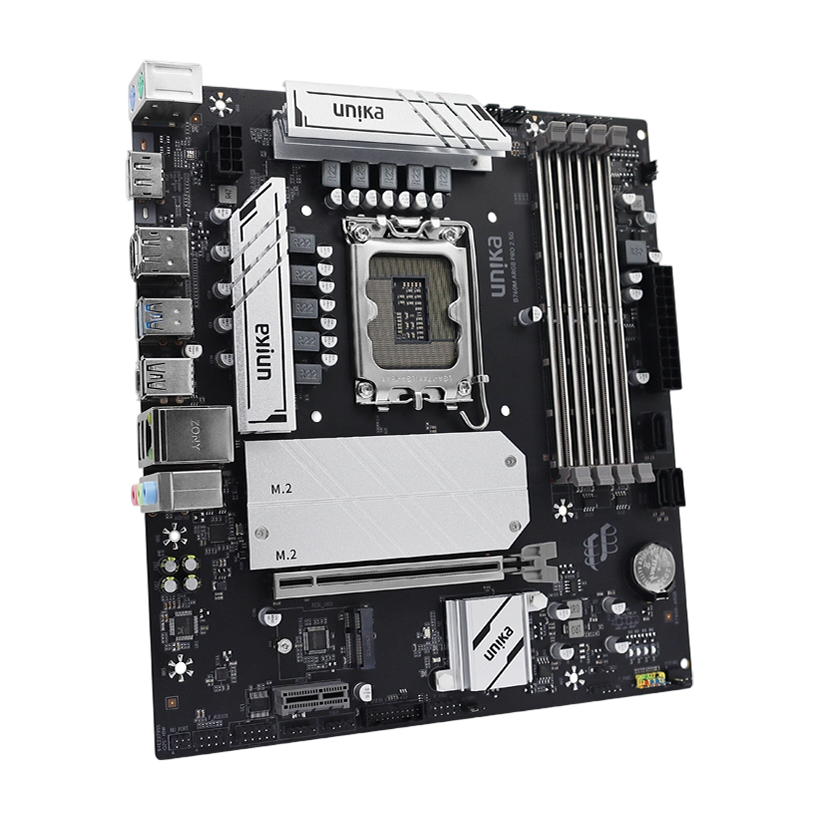

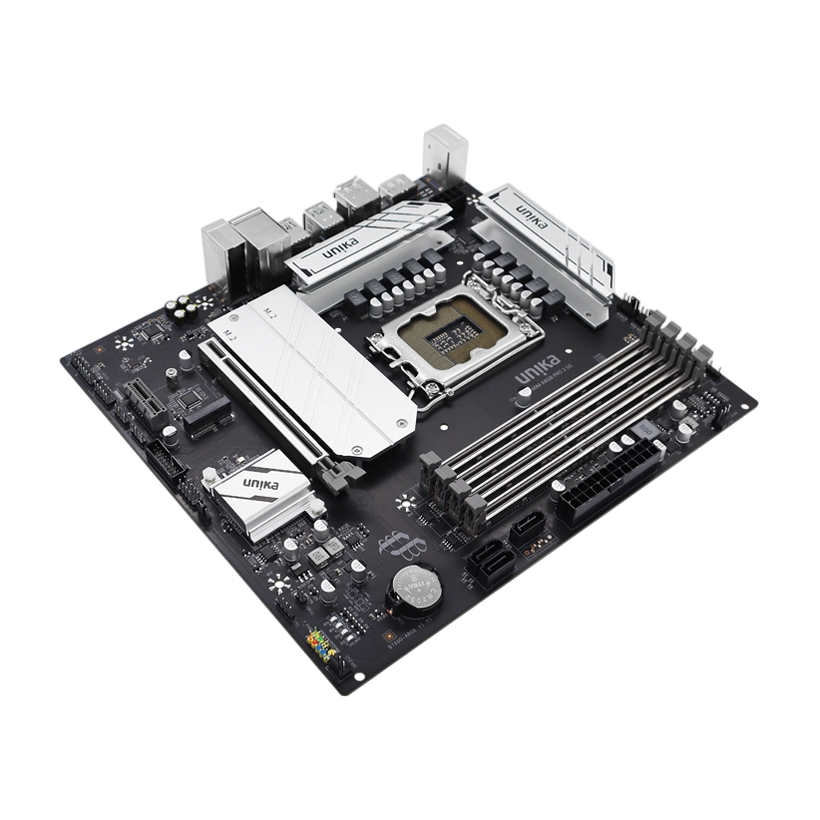

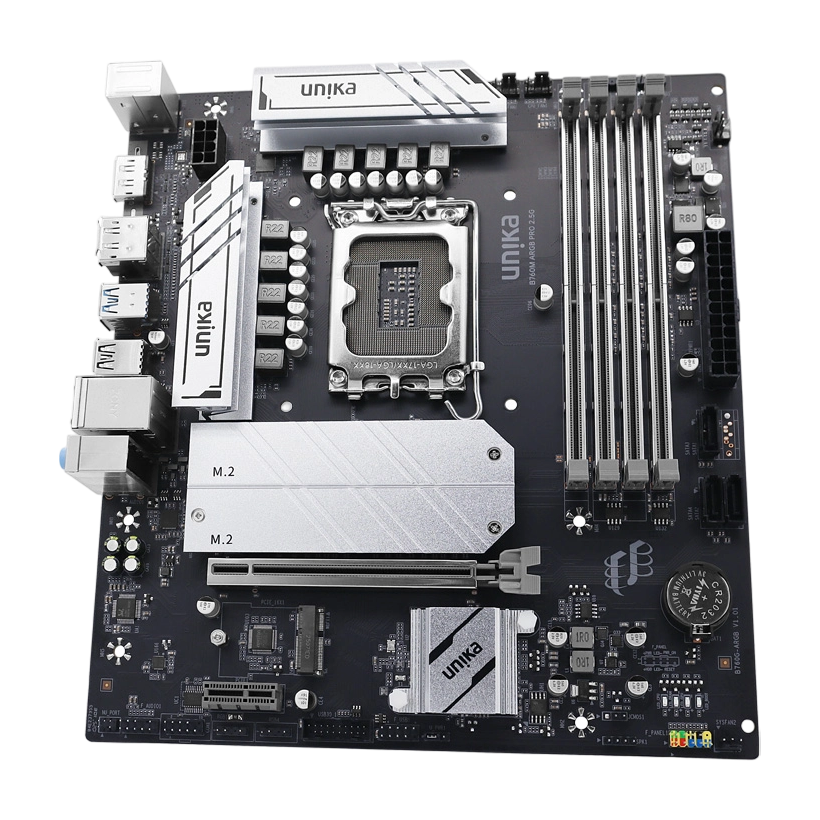

UNIKA UN-B760M ARGB PRO BLACK WARRIOR Motherboard
The UNIKA UN-B760M ARGB PRO BLACK WARRIOR is a brand new mATX motherboard based on the Intel B760 chipset. It supports Intel 12th, 13th, and 14th generation Core processors via the LGA1700 socket, uses DDR4 memory, and includes ARGB lighting synchronization capabilities.
Key Specifications
- Form Factor: Micro ATX (220mm x 240mm)
- CPU Support: Intel 12th, 13th, and 14th Gen Core i3/i5/i7, Pentium, and Celeron processors (LGA1700 socket)
- Chipset: Intel B760
- Memory: Dual Channel DDR4, 4 x DIMM slots, max 128GB capacity, supports speeds up to 3200MHz
- Expansion Slots: 1 x PCIe 4.0 x16 slot, 1 x PCIe x1 slot
- Storage: 2 x M.2 slots (supports NVMe PCIe 4.0 protocol), 3 x SATA 6Gb/s ports
- Networking: Onboard Realtek 2.5G Ethernet LAN
- Audio: 8-channel HD Audio (likely Realtek codec)
- Rear I/O Ports: HDMI, DisplayPort, VGA, 4 x USB 3.2 ports, 2 x USB 2.0 ports, RJ-45 network, 3 x audio jacks, PS/2 ports
- Internal Headers: ARGB headers for lighting control, USB 3.2 and USB 2.0 headers
