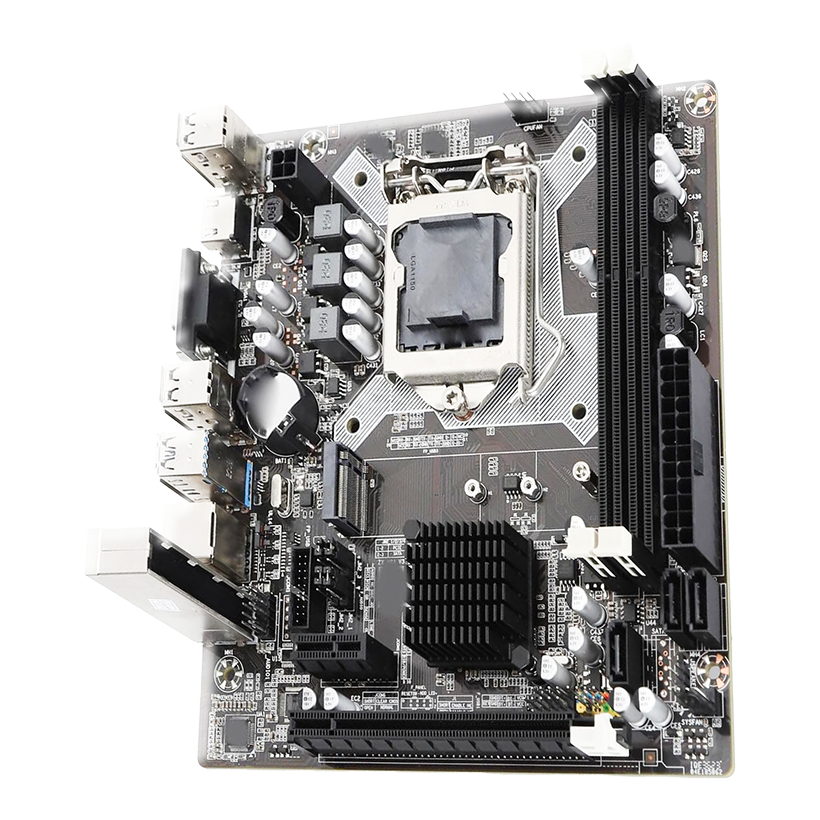

Key Specifications
| Feature | Detail |
|---|---|
| CPU Support | Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors (LGA 1150 socket). |
| Chipset | Intel H81 Express Chipset. |
| Memory | 2 x DDR3 DIMM slots, dual-channel support for 1066/1333/1600MHz, max 16GB capacity. |
| Storage | 2 x SATA 2.0 (3Gb/s) ports and 1 x SATA 3.0 (6Gb/s) port. Some variants also include an M.2 slot for NVMe SSDs. |
| Expansion | 1 x PCI Express x16 slot, 1 x PCI Express x1 slot. |
| I/O Ports | 4 x USB 2.0 ports, 2 x USB 3.0 ports, 1 x VGA port, 1 x HDMI-compatible port, 1 x RJ45 LAN port, 3-in-1 audio jacks. |
| Form Factor | Micro-ATX. |
